IS50-LS Built-in Halogen Lamp Integrating Sphere 360-2500nm Reflection Measuring Integrating Sphere

Product ID: 6221


$100

IS50-LS Built-in Halogen Lamp Integrating Sphere 360-2500nm Reflection Measuring Integrating Sphere

Note:
(1) This is the deposit, not the final product price.
For the actual product price, please contact us, different specifications have different prices.
(2) Lead Time: 3~4 weeks.

Compared with our standard reflective integrating sphere, IS50-LS can increase the light intensity by 100 times. It has important value in reflection measurement applications. It combines the integrating sphere and the halogen tungsten light source, and directly irradiates the scattered halogen tungsten light onto the sample without the loss of fiber coupling. It has an SMA interface that can be directly connected to our fiber optic spectrometer to collect reflected signals.

IS50-LS is most commonly used for dark, low-reflectivity materials and near-infrared spectroscopy where the signal strength is greatly limited.

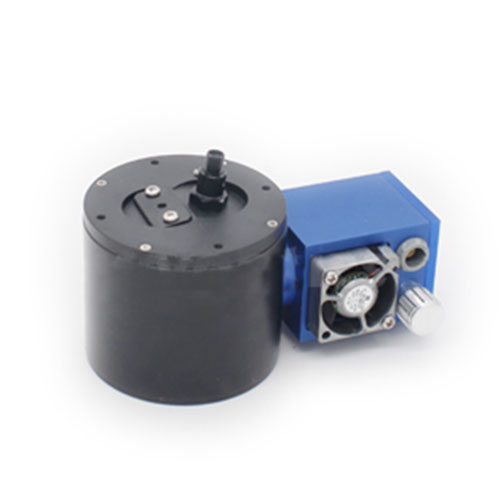

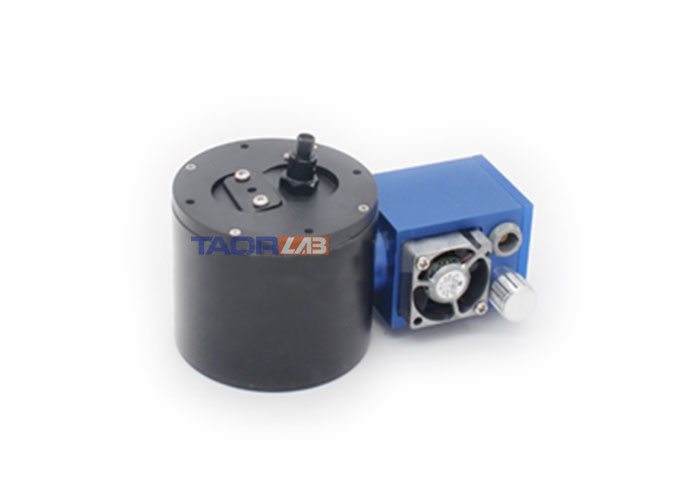

IS50-LS has an inner diameter of 50mm, a sampling port of 10mm, and an SMA reference interface. The 5W halogen lamp is stabilized and cooled by forced airflow. The configuration includes a 5V/4A power supply. Through the switch line, you can switch on/off remotely.

In normal times, we use ordinary integrating spheres, and when testing some products with high absorption, the collected signals will be very weak, so we developed the enhanced integrating sphere IS50-LS, that is, the light source is integrated in the integrating sphere. internal.

IS50-LS is an ideal combination of integrating sphere and built-in halogen tungsten light source. The integrating sphere can be used in reflectance measurement. The diffused halogen tungsten light source is used as the illuminating light source. The collimated SMA measurement port can be connected to the spectrometer to measure the reflectance spectrum signal. The advantage of the built-in halogen tungsten light source is that it is 100 times stronger than the ordinary integrating sphere and external fiber-coupled halogen lamp illuminating the sample, so it is especially suitable for dark, low-reflectivity materials and NIR spectrum measurement.

Specification:

Model IS50-LS IS50-LS-10W
Wavelength Range 360~2500nm 360~2500nm
Internal diameter of diffuse reflection cavity 50 mm 50 mm
Sampling port diameter 10 mm 10 mm
Color temperature 2800K 2915K
Bulb power 5W 10W
Lamp life 10,000 hours 6000 hours
Stability/drift <0.1%/hr <0.1%/hr
Power supply 5VDC, 2A 5VDC, 3A
External dimensions Diameter: 160 mm, height: 58 mm Diameter: 160 mm, height: 58 mm

integrating sphere

integrating sphere
