Name: TaorLab Integrating Sphere Holder Integrating Sphere Diffuse Reflection/Scattering/Transmission/Irradiance Holder
SKU: 6144
Availability: InStock

TaorLab Integrating Sphere Holder Integrating Sphere Diffuse Reflection/Scattering/Transmission/Irradiance Holder

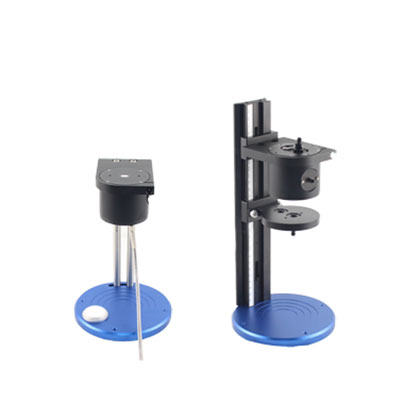

The integrating sphere holder produced by TaorLab can be used with the IS series integrating sphere produced by our company for optical measurement and analysis of diffuse reflection, transmission, scattering, etc.

Model selection:

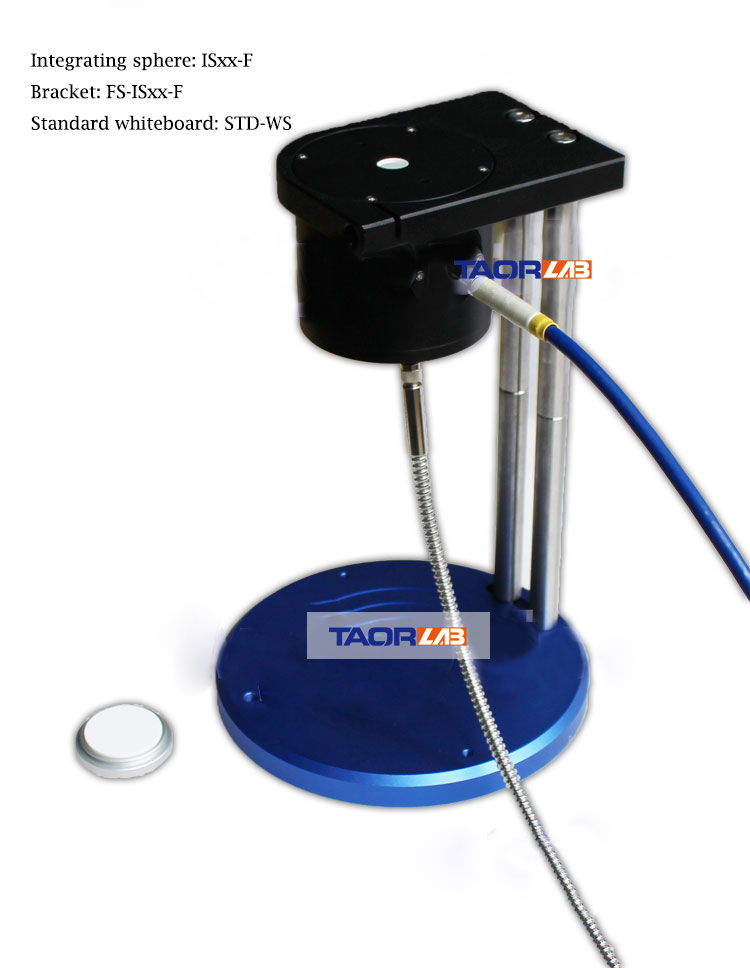

FS-IS30-F / FS-IS50-F

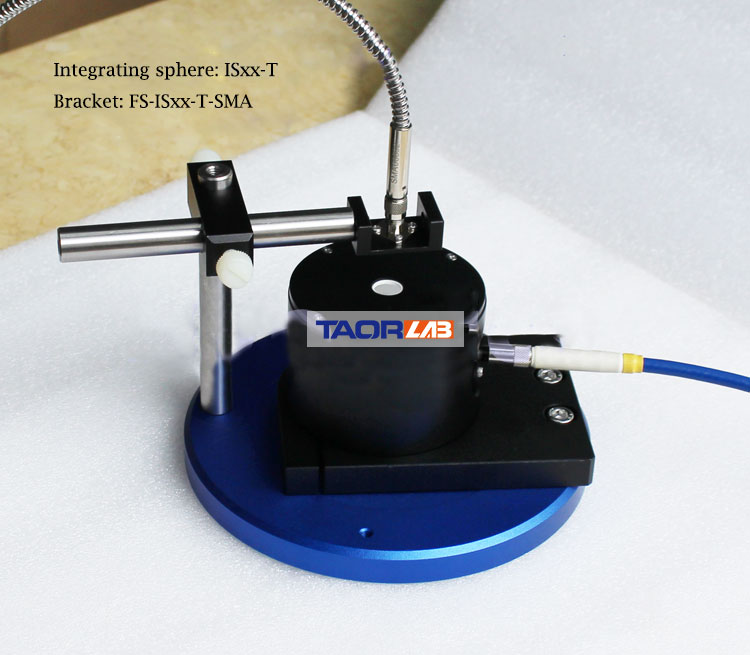

FS-IS30-T-SMA / FS-IS50-T-SMA

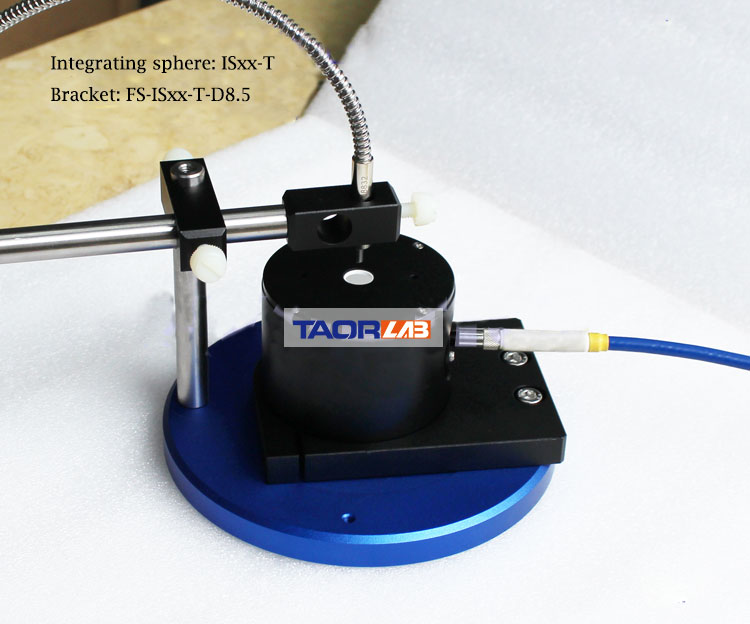

FS-IS30-T-D8.5 / FS-IS50-T-D8.5

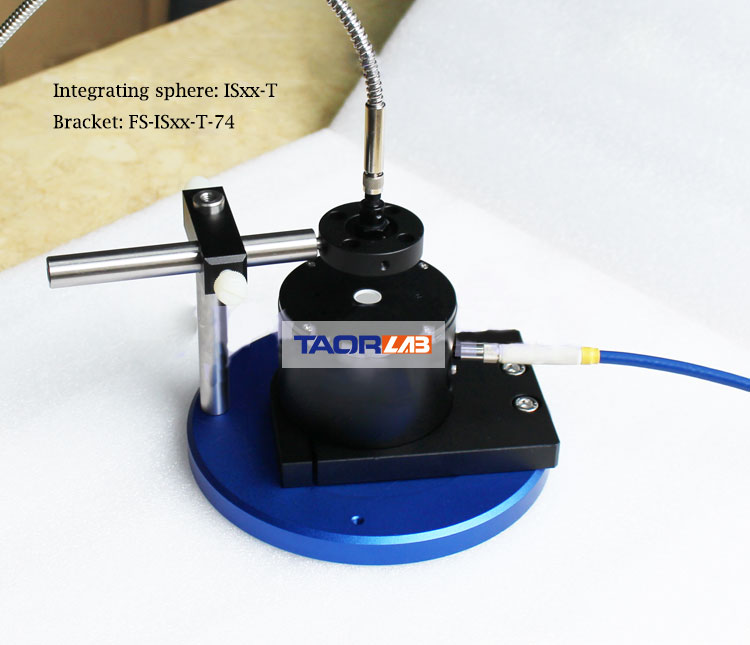

FS-IS30-T-74 / FS-IS50-T-74

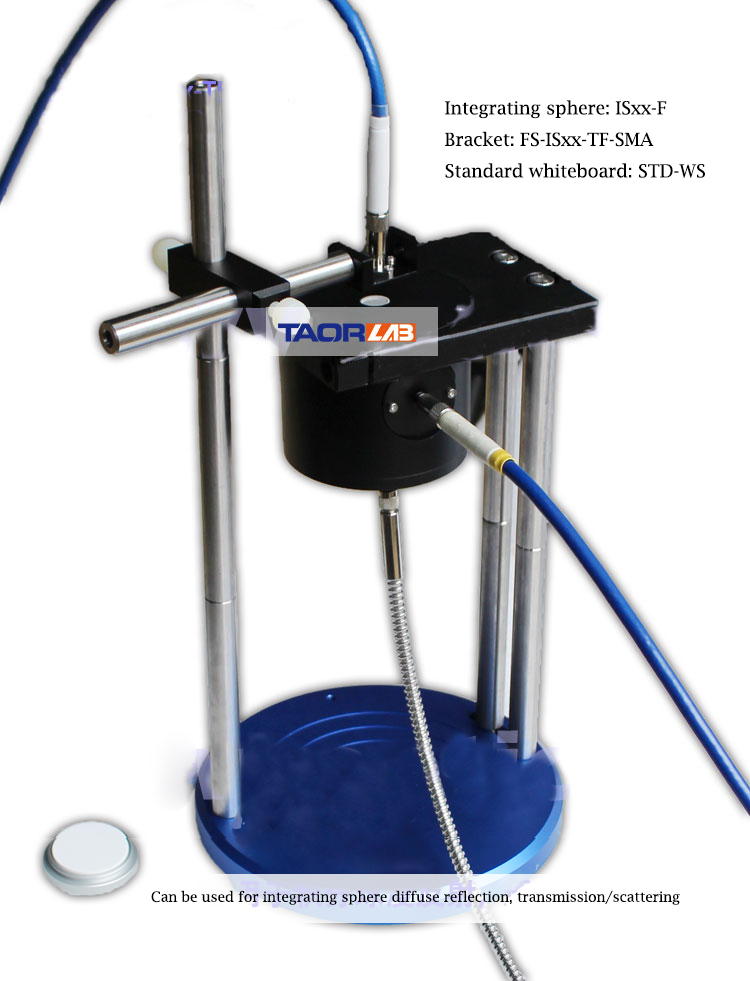

FS-IS30-TF-SMA / FS-IS50-TF-SMA

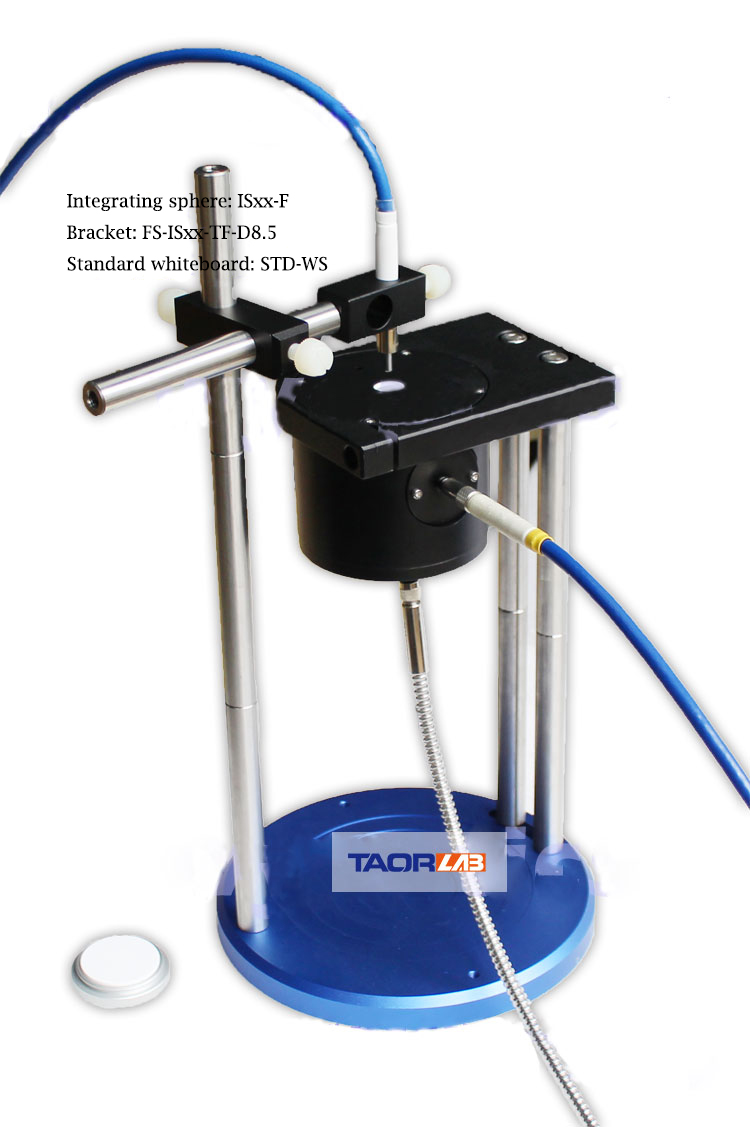

FS-IS30-TF-D8.5 / FS-IS50-TF-D8.5

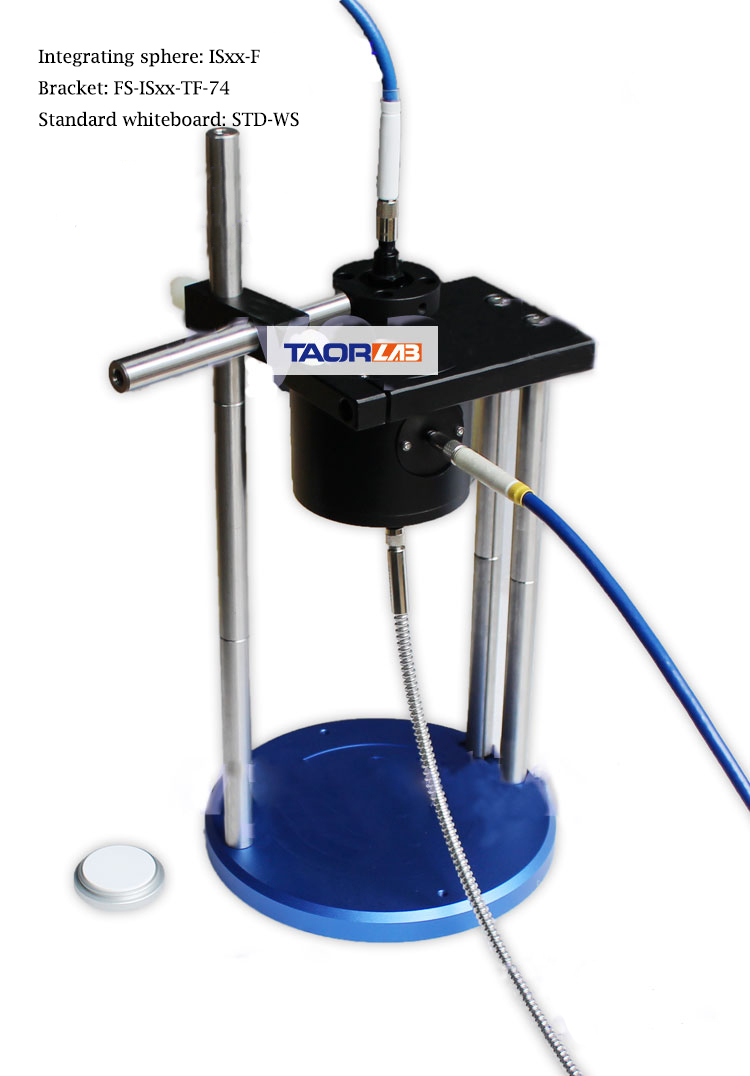

FS-IS30-TF-74 / FS-IS50-TF-74

Note: If you need other integrating sphere holders, please contact us.

The FT series integrating sphere holder is relatively common in applications. It is firmly installed. During the inspection process, it can be used with Taorlab QR-1 quartz reflector for liquid transmission or powder diffuse reflection detection applications. It is relatively easy to use and easy to operate. The reflection calibration board is needed in the process of diffuse reflection or total reflection sample detection. Our company specially designed the STD-WS standard white board for the calibration of the rough surface diffuse reflection sample and the STAN-SSH standard aluminum mirror for the specular full reflection.

Model	Image	After installation	Description

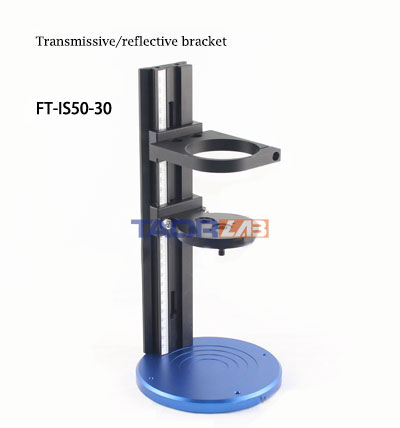

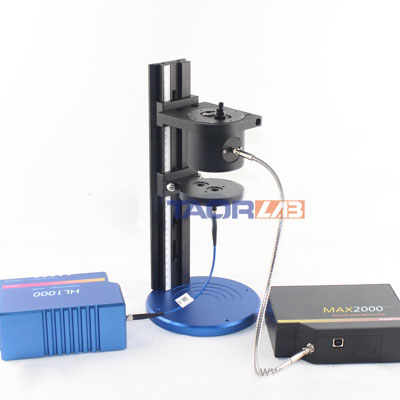

FT-IS50-30			It is used to fix IS50 series integrating sphere, which can be used for transmission, scattering and diffuse reflection spectrum analysis.

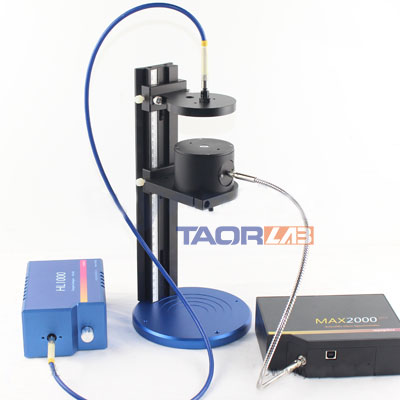

FT-IS30-30			It is used to fix IS30 series integrating sphere, which can be used for transmission, scattering and diffuse reflection spectrum analysis.

The FS series integrating sphere bracket is a simple type with a relatively high cost performance. -F type can be used for integrating sphere diffuse reflection detection, -T type can be used for transmission sample detection or illuminance measurement. During the spectrum detection process, please do not drop foreign objects into the sphere to avoid contamination of the integrating sphere.

Model	Image	After installation	Description

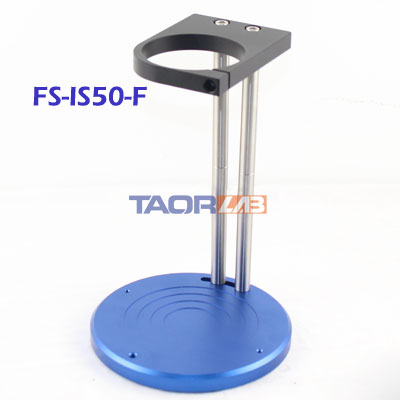

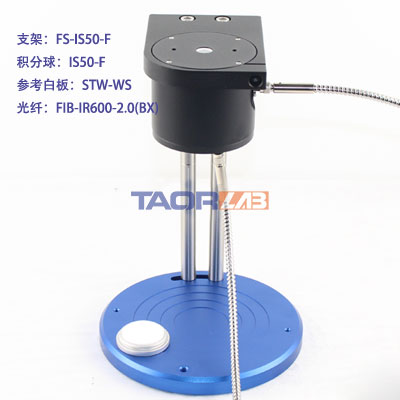

FS-IS50-F & FS-IS30-F			Used to fix IS50 or IS30 series integrating spheres, can be used for diffuse reflectance spectroscopy analysis.

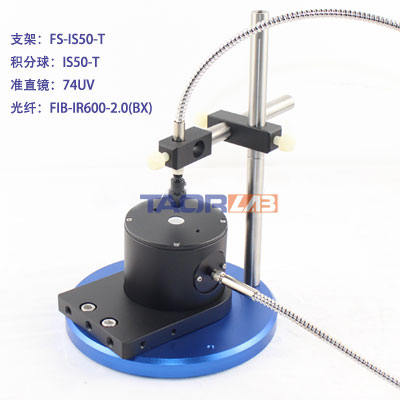

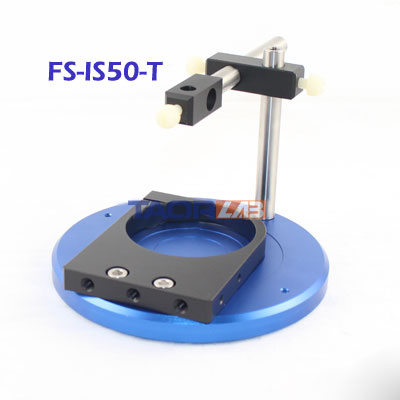

FS-IS50-T & FS-IS30-T			Used to fix IS50 or IS30 series integrating spheres, can be used for transmission and scattering spectrum analysis.

The ACH series integrating sphere holder is to place the integrating sphere horizontally, which can be used for transmission or diffuse reflection spectrum analysis.

Model	Image	After installation	Description

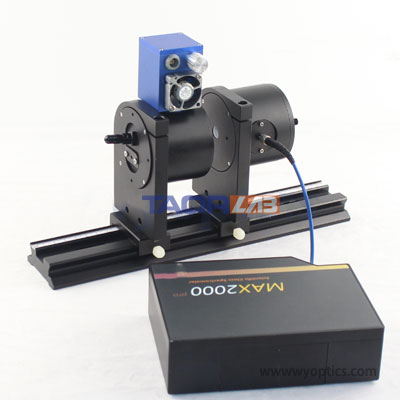

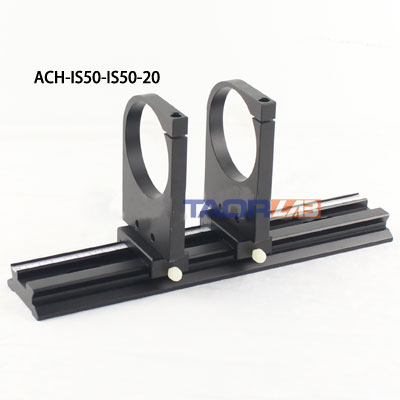

ACH-IS50-IS50-20 & ACH-IS30-IS30-20			Used to fix two IS50 or IS30 series integrating spheres, can be used for diffuse reflection or transmission spectrum analysis.

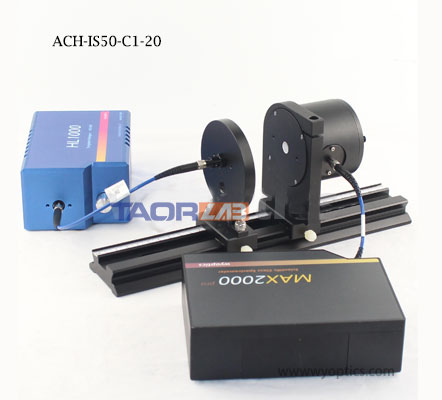

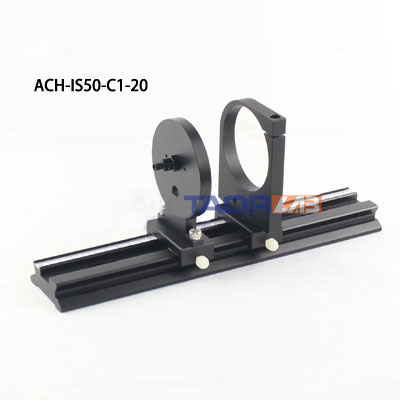

ACH-IS50-C1-20 & ACH-IS30-C1-20			Used to fix IS50 or IS30 series integrating spheres, can be used for diffuse reflection, transmission, and scattering spectrum analysis.
