SLED Laser
Custom SLED Laser 1310~1610nm Super Luminescent Diode Laser Customziable
Product ID: 6292
$100
Custom SLED Laser 1310~1610nm Super Luminescent Diode Laser Customziable

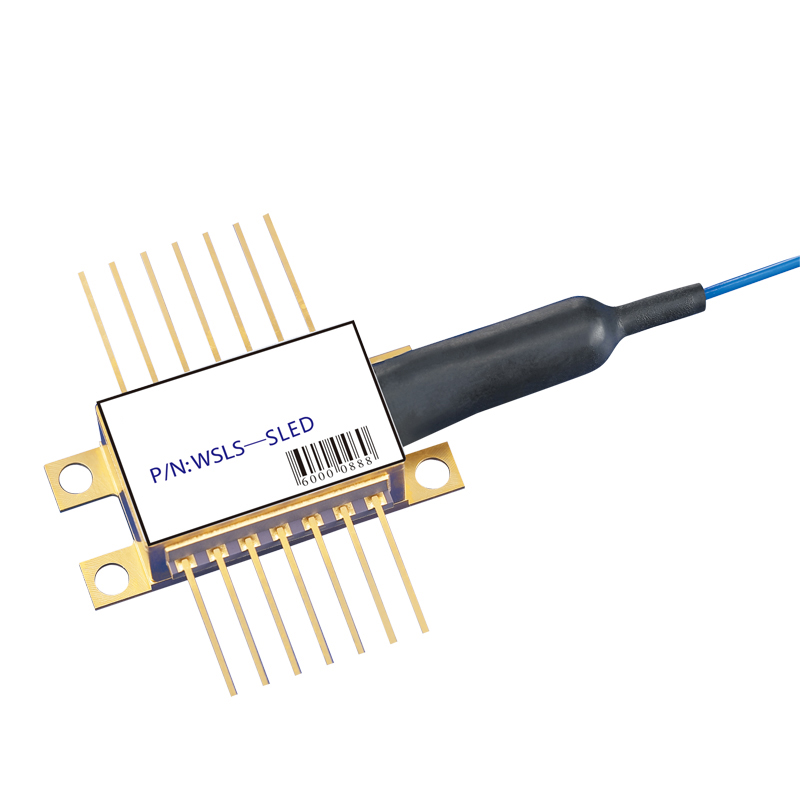

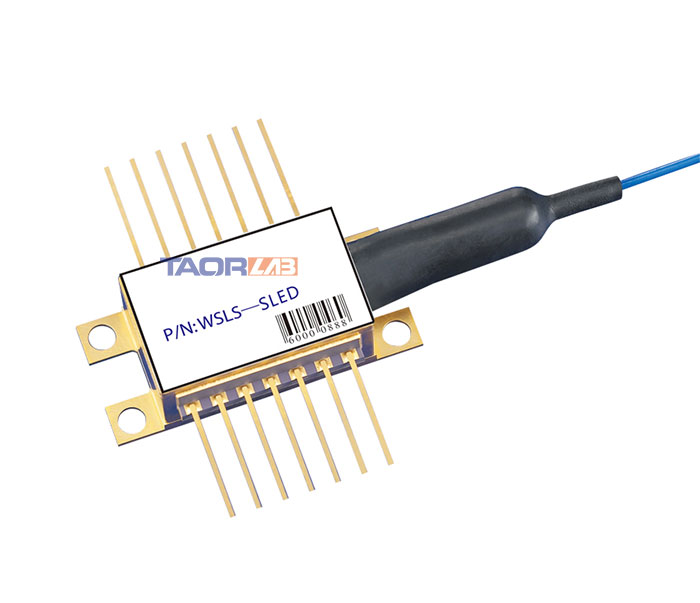

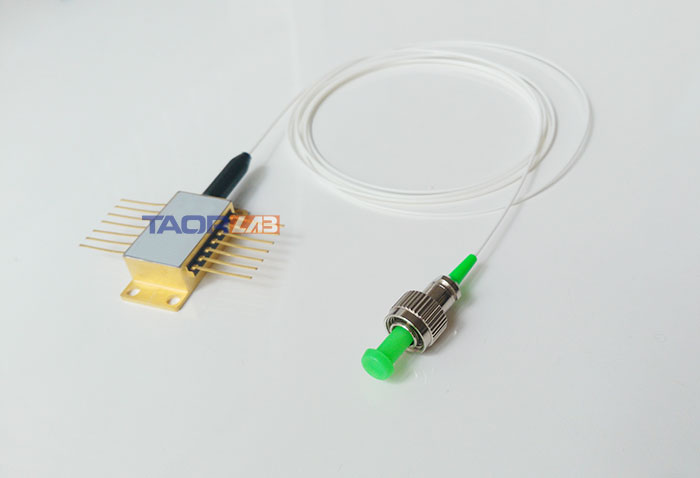

The SLED super luminescent diode laser is packaged in a 14-pin butterfly tube shell with built-in laser diode, thermoelectric cooler, thermistor and optical isolator. In addition to 14-pin butterfly lasers, our company can also provide 9-pin packaged lasers and other customized packaged lasers.
[Features]
The optical power can reach 10mW.
Highly reliable conventional package.
Customized package (optional).
[Applications]
Fiber amplifier
Fiber Optic Sensor
Element detection
Fiber optic gyroscope
Optical Fiber Communication
Optical coherence tomography
Biomedical imaging system
[Specification]
| Parameter | Symbol | Test Conditions | Minimum | Typical Value | Maximum | Unit |
| Peak output optical power | Pp | – | 5 | – | – | mW |
| Threshold current | Ith | CW | – | 80 | 90 | mA |
| Drive current | – | Po=10mW | – | 300 | 350 | mA |
| Laser forward voltage | Vlf | Po=10mW | – | 2.5 | 3 | V |
| Thermistor impedance | Rth | Tl=25℃ | 9.5 | – | 10.5 | kΩ |
| Center Wavelength | λc | TLD=15~35℃, CW | 1290 | 1310 | 1330 | nm |
| Full wave half width | FWHM | CW | – | 55 | 60 | dB |
| Ripple | – | RB=0.1nm, CW 5mW | – | – | 0.2 | dB |
| Thermoelectric cooler current | ITEC | – | – | – | 1.9 | A |
| Operating temperature range | TO | The cooler is working | -20 | 70 | ℃ | |
| Storage temperature range | Tstg | – | -40 | 85 | ℃ |
| Numbering | Pin Definition |
| 1 | Thermistor |
| 2 | Thermistor |
| 3 | Laser DC cathode |
| 4 | None |
| 5 | None |
| 6 | Thermoelectric cooler anode |
| 7 | Thermoelectric cooler cathode |
| 8 | None |
| 9 | None |
| 10 | None |
| 11 | Connect to the shell |
| 12 | Laser radio frequency cathode |
| 13 | Connect to the shell |
| 14 | Laser anode |
Note:
(1) $100 is the product deposit, not the final product price.
(2) The minimum order quantity is 5pcs;
(3) The customizable parameters are as follows:
| Parameter | Customizable Options |
| Center Wavelength(nm) | 1310nm, 1400, … 1610nm |
| Output Power(dBm) | 03, 07, 10 |
| Fiber Type | G657A, 1310nm PM fiber, 1550nm PM fiber |
| Pigtailed Type | 250μm bare fiber, 0.9mm loose tube, 0.9mm tight tube |
| Fiber Length(m) | 0.5, 1, 1.5, 2, 2.5, 3, 1.25, 1.75, 2.25 |
| Connector | None, SC/UPC, SC/CAPC, FC/UPC, FC/APC, LC/UPC, LC/APC, ST/UPC, MU |
