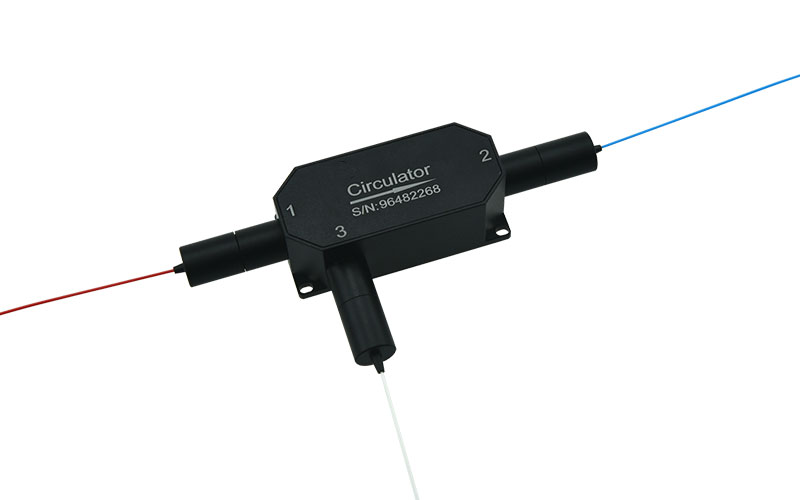

530nm Low Insertion Loss 3-port Single-mode Optical Fiber Circulator

The three-port fiber optic circulator is a multi-port non-reciprocal optical device in which light can only propagate in one direction. If the signal is input from port 1, it will be output from port 2; if the signal is input from port 2, it will be output from port 3, and the output loss is very small; when the light is input from port 2, the loss is very large when it is output from port 1. Similarly, when light is input from port 3, the loss when output from ports 1 and 2 is also very large.

TaorLab can produce three-port, four-port, different power and different wavelength fiber optic circulators, which are widely used in fiber lasers, instrumentation, dispersion compensation devices, fiber optic sensing, scientific research and other fields.

Specification

Parameter Unit Value
Center Wavelength nm 530
Operating Wavelength Range nm ±5
Peak Isolation (Type) dB 25
Isolation (min) dB 20
Insertion Loss(Type) dB 2.0
Insertion Loss(max) dB 2.5
Polarization Dependent Loss dB ≤0.2
Minimum Return Loss dB 45
Optical Power(CW) mW 50
Fiber Type 460-HP
Package Size mm 64x28x26
Operating Temperature 0 ~ +60
Storage Temperature -10 ~ +75

*The temperature measurement environment is 25℃;
*The above data does not include connectors. If connectors are added, the insertion loss will increase by 1dB and the return loss will decrease by 5dB.

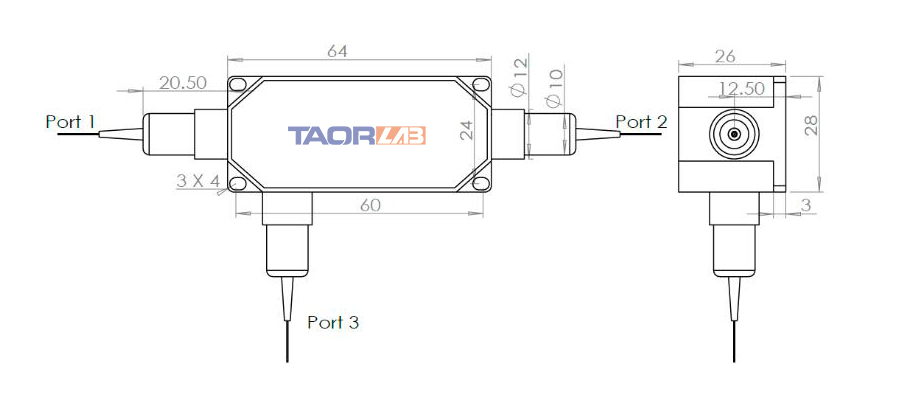

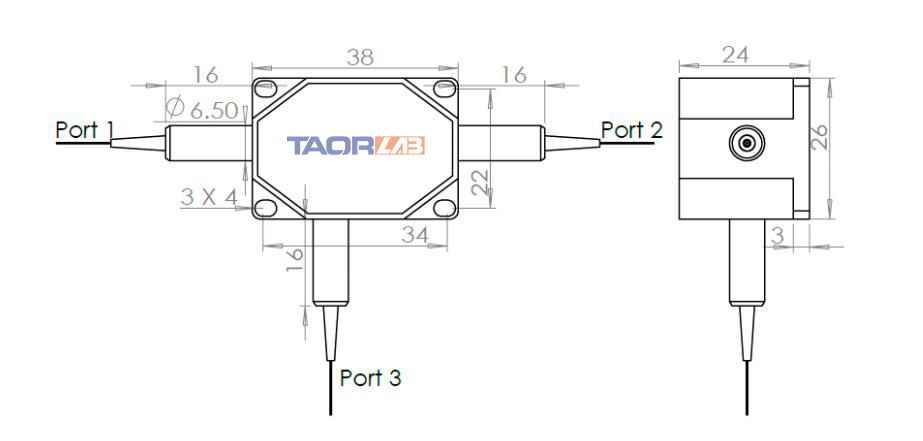

Package Dimensions

TaorLab fiber circulator

Ordering Information

TLCIR Working Wavelength Average Power Power Type Fiber Type Pigtail Length Pigtail Type Connector Type
530=530nm 00=300mW
S=Others
C=CW
P=Pulse
H4=460-HP 08=0.8m
10=1.0m
15=1.5m
S=Others
B=250um bare fiber
L=900um loose tube
S=Others
N=None
FP=FC/PC
FA=FC/APC
S=Others

*Model reference: TLCIR-530-S-C-H4-10-L-FA
Three-port fiber optic circulator, center wavelength 530nm, continuous optical power 50mW, fiber type 460-HP, fiber length 1 meter, 900um loose tube, FC/APC.
