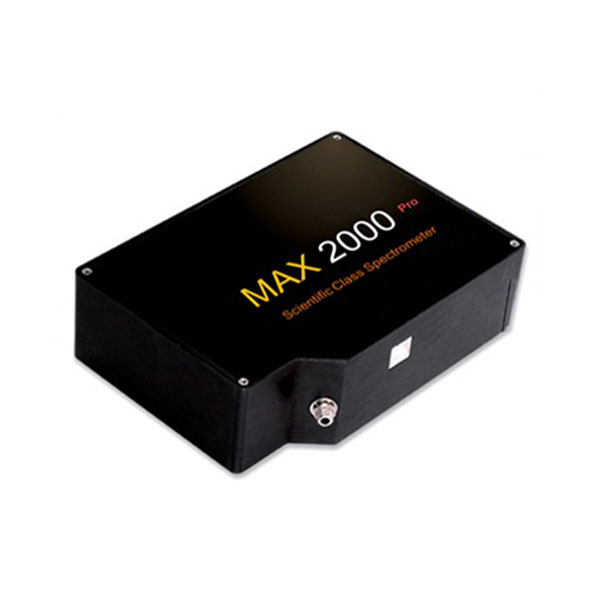

Fiber Optical Spectrometer MAX2000-Pro Highly Sensitive Miniature Spectrometer Portable Spectrometer

Product ID: 6114


$5,851

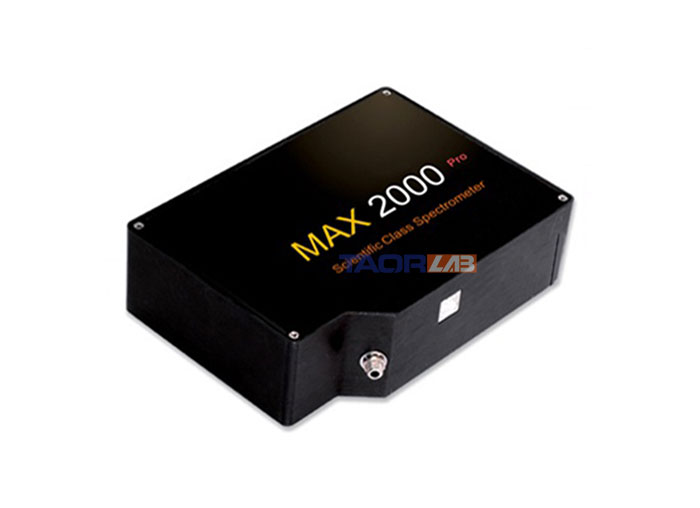

Fiber Optical Spectrometer MAX2000-Pro Highly Sensitive Miniature Spectrometer Portable Spectrometer

Note:
This is the deposit, not the final product price.
For the actual product price, please contact us, different specifications have different prices.

MAX2000-Pro fiber optic spectrometer (also known as portable spectrometer/miniature spectrometer) has high sensitivity, high quantization efficiency and high dynamic range, and can respond to the deep ultraviolet band (~185-300nm). MAX2000-PRO uses Hamamatsu back The illuminated area FFT-CCD can be perfectly applied to those fields that require high quantization efficiency and a wider spectrum.

MAX2000-PRO perfectly combines the Hamamatsu area array back-illuminated FFT-CCD. The EX grating has many advantages such as low electronic noise, high UV sensitivity, high quantization efficiency, high dynamic range and ultra-wide spectrum. It is the first choice in the fields of low light detection, ultraviolet sensitivity and wide spectrum requirements.

It has the widest rich band of 185-1150 nm.

About the spectrometer resolution:
Resolution is inversely proportional to sensitivity. The smaller the slit, the lower the sensitivity, but the resolution is better.
The greater the number of grating lines, the higher the resolution and the smaller the irradiation wavelength range.

[Specification]

Mechanical parameters
Item Value
Size (mm) 115*158*46.5
Weight (g) 600
Detector parameters
Item Value
Detector Hamamatsu S10420-1106 back-illuminated, area array FFT-CCD
Detector response range (nm) 185-1100
Effective Pixels 2048 X 64
Pixel size (µm) 14 μm²
Detector area (mm) Width 28.672, height 0.896
A/d conversion 16 bits, 500kHz
Integration time 11 milliseconds – 5 seconds
Sensitivity (V/lx·s) ~0.32 count/e-
Optical system parameters
Item Value
Optical system F/4, f/4, symmetrical cross optical path
Focal length (mm) 100 mm
Slit size (µm) 5/10/25/50/100/200, etc., or without slits (customized)
Raster A variety of ruled gratings or holographic gratings with the same blaze wavelength with different parameters (customizable)
Cylindrical mirror Optional
Elimination of secondary spectral filter Band pass or long wave pass filter to eliminate secondary spectrum
Optical fiber and its connection interface NA 0.22, SMA905
Spectral parameters
Item Value
Spectral wavelength test range Depend on grating selection, 185~1100nm
Spectral resolution (nm) ~0.07-8.4 nm FWHM (determined by grating constant, slit width and detector model, etc.)
SNR 500:01:00 (full scale range)
Wavelength tolerance PWH*20%
Integration time 1 millisecond to 2 seconds
Dynamic Range 300
Stray light <0.05% at 600 nm; <0.10% at 435 nm
Correction linearity >99.8%
Electrical parameters
Item Value
Power consumption 500mA × 5V DC
Data transfer rate Full spectrum read into memory via USB2.0 interface, time 3.0 ms.
Operating system Windows / XP (32-bit)
Data transmission interface USB 2.0 (480Mbps), compatible with USB 1.1
Pre-configured system parameters
Part Name Component parameters Remarks
Slit Width (µm) 10, 20, 50, 100, etc.
Raster Number of wire pairs (L/mm) 300,400,500, 600, 800,1200, 1800
Spectral response range (nm) 185-1100 (User-defined, for 600 line pairs/mm grating, the spectral response range is about 650nm.)
Optical fiber Core diameter (µm) 9, 50, 200, 400, 600, 1000, etc.
Spectral response range (nm) 190~2500
Outer protective layer Normal or enhanced care
Interface Type SMA 905 (standard) or FC, TA, TB, etc.
Detector Model Hamamatsu S10420-1106

Optional parts
Part Name Remarks
Light source Used for measurement or wavelength calibration of a wide spectral response range, such as deuterium halogen two-in-one light source, tungsten halogen lamp, deuterium lamp or mercury argon light source.
Integrating sphere Used to realize the uniform light output of the light source
Reflectance measurement accessories Accessories for reflectance spectrum measurement, such as standard reflectance standard whiteboard, aluminum mirror and miniature reflector platform, special fixtures, etc.
Transmission measurement accessories Accessories for transmission spectrum measurement, such as transmission support for sample holder, various cuvette supports, flow sample cell, etc.
Fluorescence excitation light measurement accessories Accessories for fluorescence excitation light measurement, such as 4-way cuvette holder, etc.
Packing list
Part Name Quantity
Micro spectrometer MAX2000-Pro
Optical fiber with SMA905 interface Optional
USB data cable 1
Software and development kit SDK CD 1

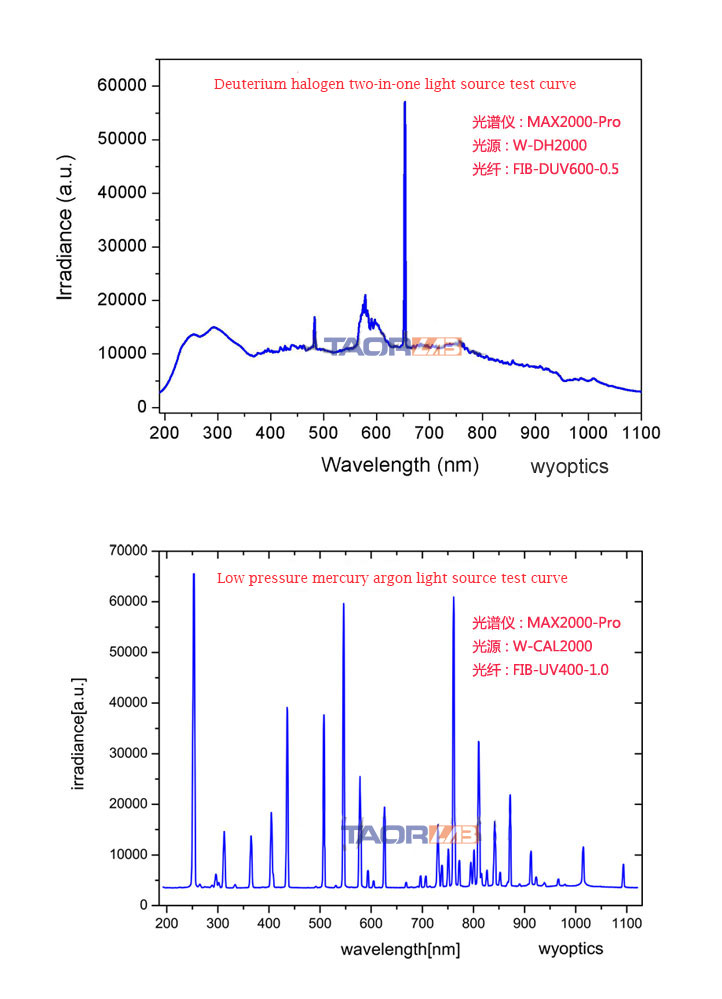

Spectra of two light sources measured by MAX2000-Pro fiber optic spectrometer after transmission through fiber FIB-DUV600-0.5:
fiber spectrometer

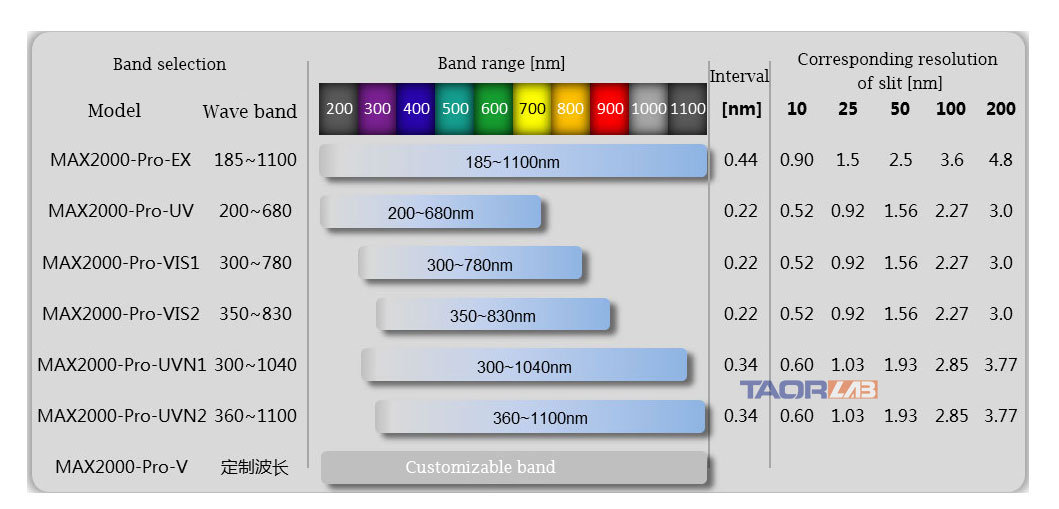

MAX2000-Pro has a variety of options: ordinary, EX full-spectrum and DUV deep ultraviolet:
fiber spectrometer

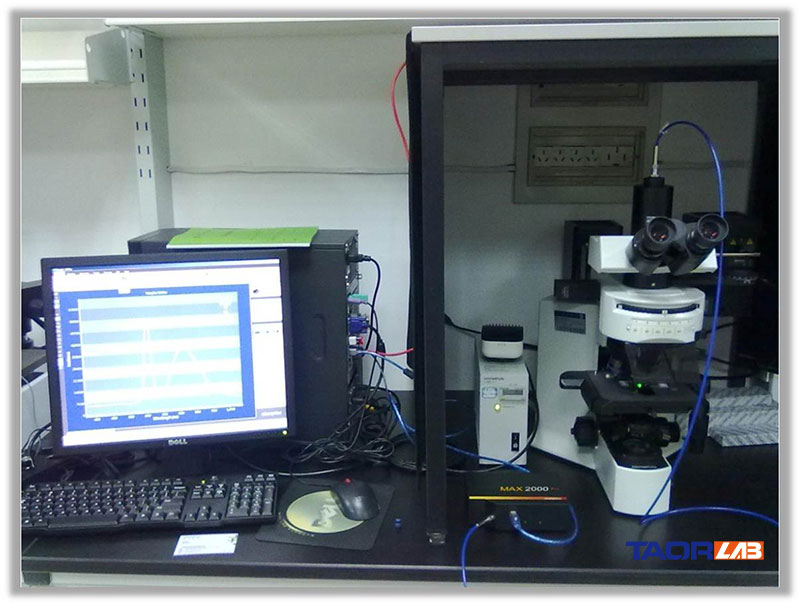

fiber spectrometerMAX2000-Pro spectrometer is used for photonic crystal research-microspectroscopy: fiber spectrometer

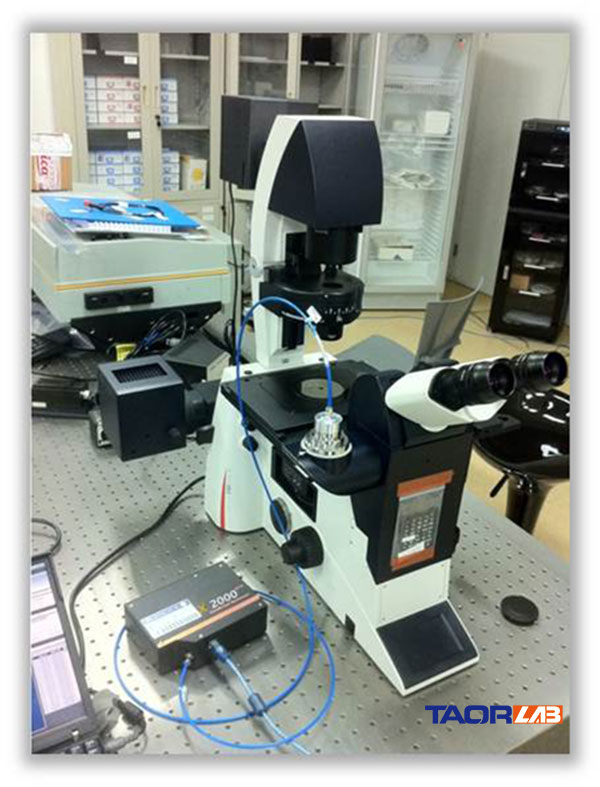

MAX2000-Pro spectrometer is used for micro-machining optical structures_Microspectroscopy:

fiber spectrometer

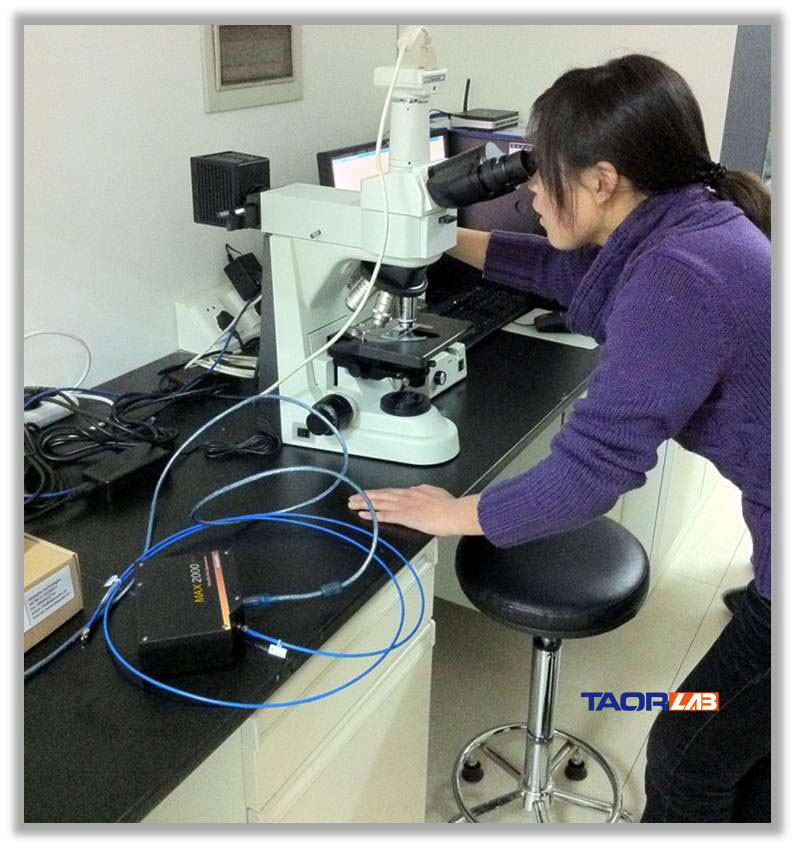

MAX2000-Pro spectrometer is used for microbial cycle changes_Microspectroscopy:

fiber spectrometer

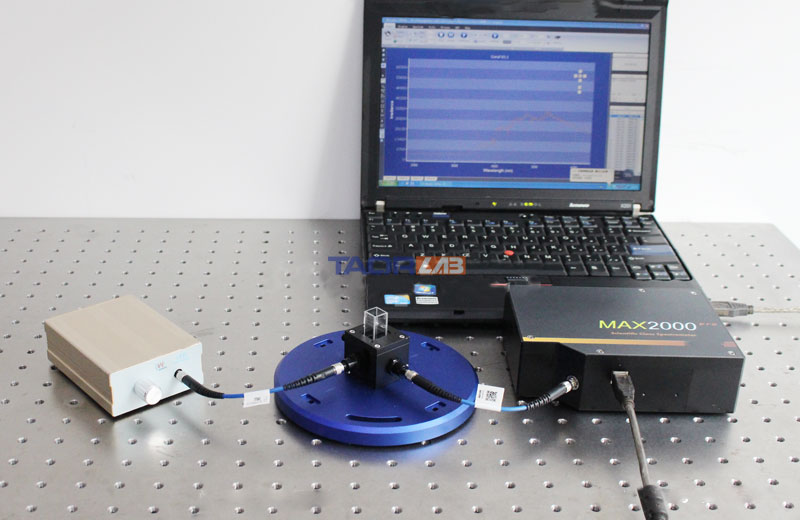

Application of fluorescence detection of liquid in cuvette holder:


fiber optical spectrometer
