PC2000 Fiber Optic Spectrometer Industrial Grade Fiber Optic Spectrometer Spectrograph

Product ID: 6117


$3,826

PC2000 Fiber Optic Spectrometer Industrial Grade Fiber Optic Spectrometer Spectrograph

Note:
This is the deposit, not the final product price.
For the actual product price, please contact us, different specifications have different prices.

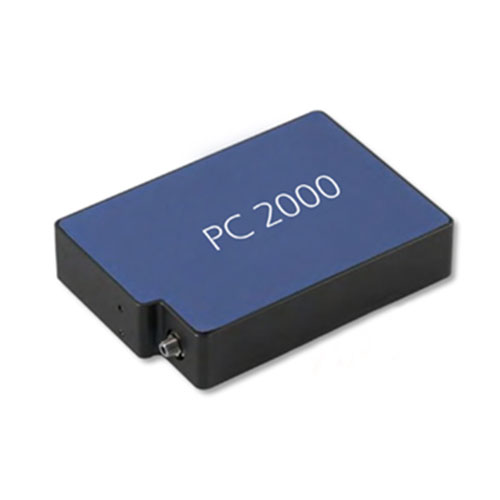

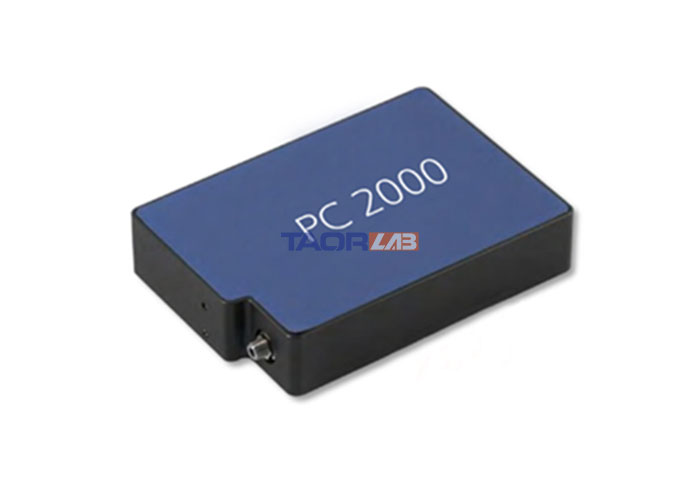

PC2000 is a lightweight, portable miniature spectrometer. This series of spectrometers are suitable for general spectral measurement applications in scientific research and industrial production. They have high measurement accuracy and come with software. They are used in a variety of fields involving spectral measurement and analysis with their ultra-high cost performance, such as: plasma measurement, LED sorting, Color measurement, chemical process analysis, etc.; and with its unique design, it can be easily integrated into other systems.

PC2000 optical fiber spectrometer has the following remarkable features:
1. Double blazed grating PC2000 adopts the world’s best Richardson grating, and adopts the double blazed grating used in high-end models in the 200~1100nm full spectrum model, which effectively balances the full spectrum response;
2. UV-sensitized CCD PC2000 optical fiber spectrometer adopts German technology for UV-sensitization of CCD, the UV conversion efficiency is 20% higher than the traditional one, and the life span is doubled;
3. Dynamic range better than 3000:1 The PC2000 optical fiber spectrometer has undergone a new electronic engineering design and has a dynamic range of more than 3000:1, which is significantly better than other brands of the same level spectrometer;
4. High-speed technology 2 PC2000 optical fiber spectrometers have two high-speed technologies, including high-speed switching technology and flag technology, to meet the needs of high-speed automatic detection.

[Features]
1. The high-resolution optical platform achieves the best balance of resolution and sensitivity without increasing the volume of the spectrometer itself.
2. Full-spectrum technology, using linear gradual reduction high-order filters and variable blazed gratings, solves the problem of wide-spectrum efficiency balance and high-order interference, and the widest spectrum covers 200-1100 nm.
3. Ultra high resolution, providing up to 0.1nm optical resolution.
4. High-speed control technology can set a new integration time within 1ms, saving time for spectrometer control.
5. Mark position technology, can query the completion status of the spectrometer at any time, interrupt and re-collect at any time, without long waiting.
6. Bottom call technology, support system integration development, facilitating users to develop spectrometer application programs more quickly.

[Performance]
1. The PC2000 optical fiber spectrometer can provide the highest optical resolution of 0.1nm. The combination of a focal length of 75nm and a numerical aperture of 0.22 enables the spectrometer to achieve the best balance of resolution and sensitivity without increasing its own volume.
2.EX double blazed grating, the double blazed grating has a more uniform response in a wide spectrum range, which solves the problem of efficiency balance and high-order interference in a wide spectrum, and the widest spectrum covers a range of 200-1100nm.
3.High-speed control technology can set a new integration time within 1ms, saving time for spectrometer control.
4.The PC2000 optical fiber spectrometer can be equipped with a special ultraviolet sensitized deep ultraviolet CCD, which can extend the spectrum detection range to the deep ultraviolet band. At the same time, the PC2000 high-resolution optical fiber spectrometer has a logo position and underlying calling technology. Under the condition of ensuring high-speed measurement, Further improve the measurement accuracy. It can make the user’s products in a leading position in technology, and give the product stronger bargaining power. With the provision of low-cost optical fibers, it can build personalized spectrum measurement equipment.

[Specification]

Mechanical parameters
Item Value
Size (mm) 128*90*27
Weight (g) 430
Detector parameters
Item Value
Detector Sony Linear CCD ILX554B
Detector response range (nm) 200-1100
Effective Pixels 2048
Pixel size (µm) 14×56
A/D resolution 16 bits
Non-uniformity of light response 1% (maximum)
Sensitivity (V/lx·s) 130 photons/count at 400 nm; 60 photons/count at 600 nm
Optical system parameters
Item Value
Optical system Symmetrical cross C-T optical path
Focal length (mm) 75mm
Slit size (µm) 5/10/25/50/100/200, etc., or without slits (customized)
Raster A variety of ruled gratings or holographic gratings with the same blaze wavelength with different parameters (customizable)
Cylindrical mirror Optional
Elimination of secondary spectral filter Band pass or long wave pass filter to eliminate secondary spectrum
Optical fiber and its connection interface NA 0.22, SMA905
Spectral parameters
Item Value

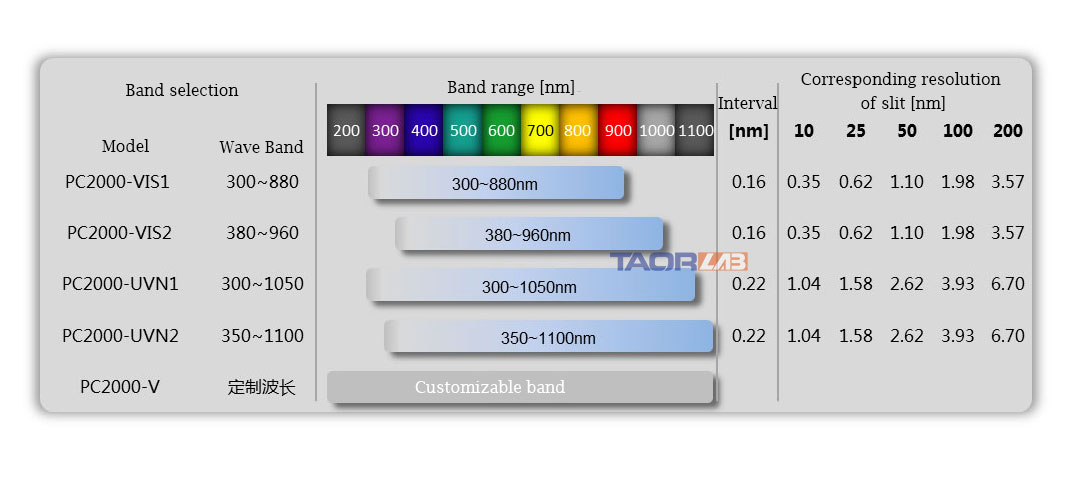

Spectral wavelength test range Depend on grating selection, 200~1100nm
Spectral resolution (nm) ~0.1-10 nm FWHM (determined by grating constant, slit width and detector model, etc.)
SNR 400:01 (full scale range)
Wavelength tolerance About ±0.2
Integration time 1ms to 60s
Dynamic Range 3000:01
Stray light <0.01% at 600 nm; <0.03% at 435 nm
Correction linearity >99.8%



The slit of the spectrometer is inversely proportional to the resolution, and the resolution is inversely proportional to the sensitivity.
fiber optical spectrometer


fiber optical spectrometer

fiber optical spectrometer

fiber optical spectrometer

Application of fluorescence detection of liquid in cuvette holder:

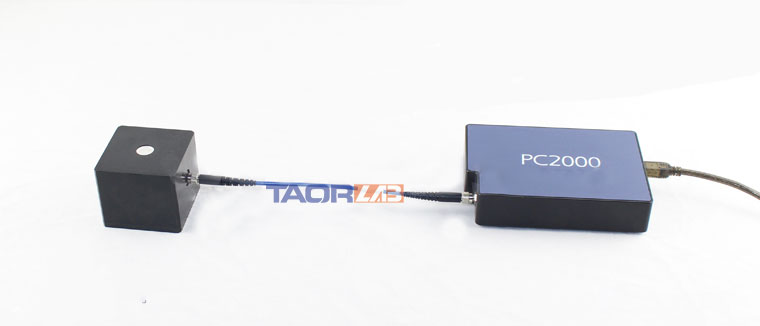

The cuvette holder in the figure below, the left fiber is connected to the light source (HL2000 halogen light source or DH2000 deuterium halogen light source can be selected), the right fiber is the transmission and absorption measurement end (MAX2000 fiber spectrometer or EQ4000 fiber spectrometer can also be selected ), the front side fiber is the fluorescence/excitation light measurement end (MAX2000 fiber spectrometer or EQ4000 fiber spectrometer can also be selected).
This measuring system is a spectrum measuring system designed for a cuvette with a light path of 1cm, which can measure:
1. The transmittance and reflectance of the liquid sample in the cuvette.
2. Absorption and fluorescence spectra of the liquid sample in the cuvette.
