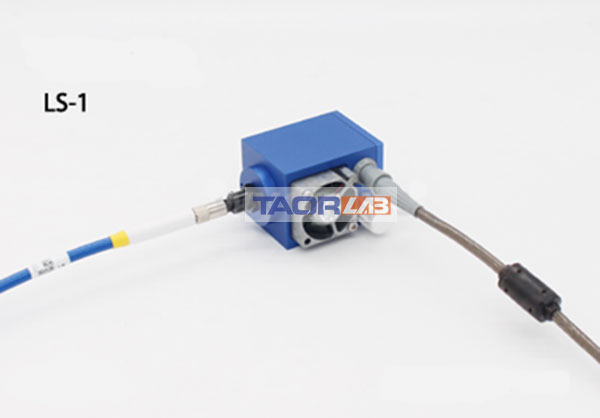

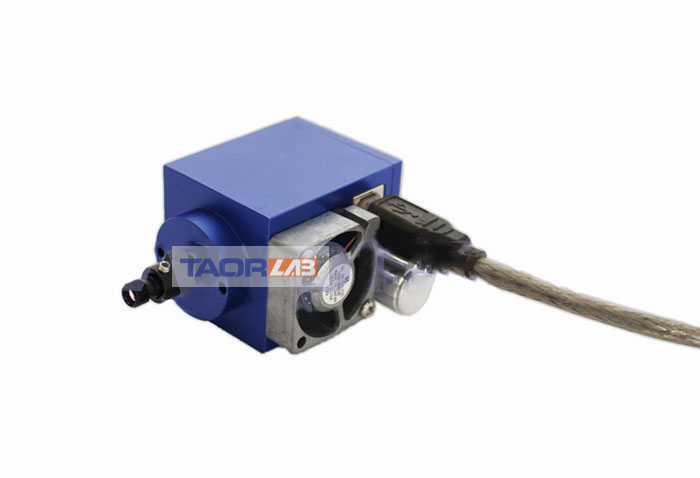

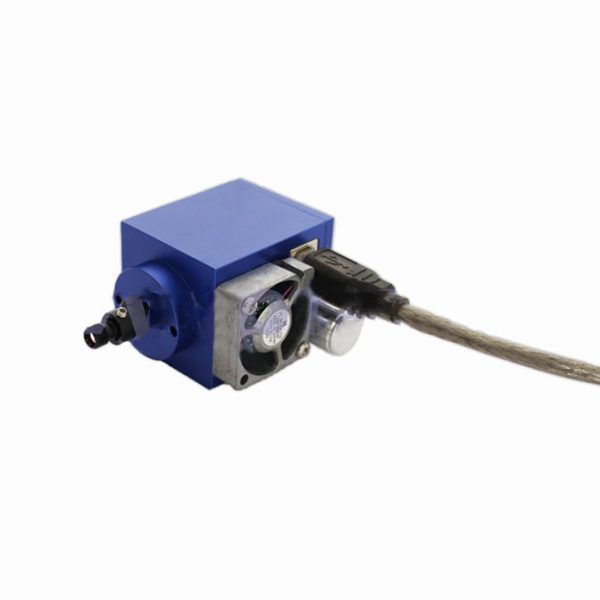

LS-1 Small Volume Halogen Light Source SMA905 Fiber Output Optical Detection Light Source
This small-volume halogen lamp has the main features of long life, small size and stable output spectrum, which is suitable for application schemes such as equipment integration.
1. Use high-quality bulbs, halogen bulbs with a life of up to 10,000 hours.
2. The output intensity of the light source can be adjusted through the potentiometer to adjust the filament current, which is convenient for various experimental applications.

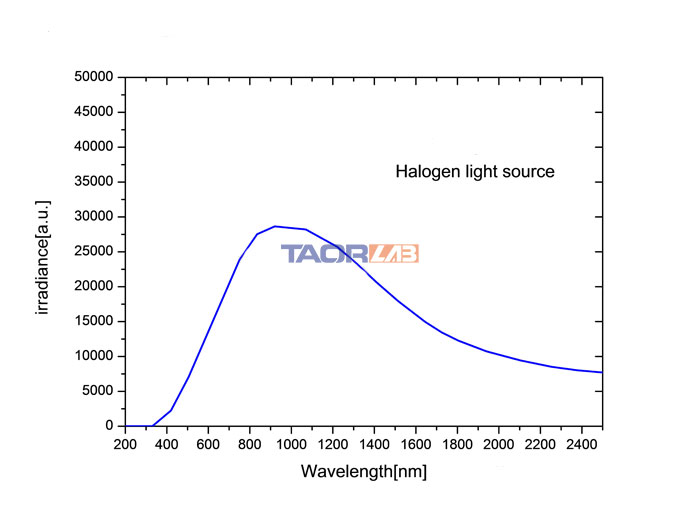

3. Wide wavelength range: 360~2500nm
4. Air-cooled heat dissipation is adopted. Please do not block the air inlet and outlet during use.
Product Name: Halogen Light Source
Wavelength Range: 360~2500nm
Power Consumption: 5W (1.5W~8W can be customized.)
Power Supply: 2A 5V DC
Size: 40mm x 70mm x 55mm
|Stability||Bulb drift <0.15%/hr||Bulb drift <0.15%/hr||Bulb drift <0.15%/hr||Bulb drift <0.15%/hr|
