HL1000 360~2500nm Halogen Light Source Spectral Detection Near Infrared Power Adjustable Light Source

Product ID: 6067


$750$1,123

Clear

HL1000 360~2500nm Halogen Light Source Spectral Detection Near Infrared Power Adjustable Light Source

Reflection/transmission spectrum: The output stability of the light source intensity affects the reliability of the results. In addition, the higher the color temperature, the better the short-band signal-to-noise ratio.
Irradiance calibration: In many applications, a standard radiation source is required. Generally speaking, the longer the life of this light source, the more stable the light output, the better.

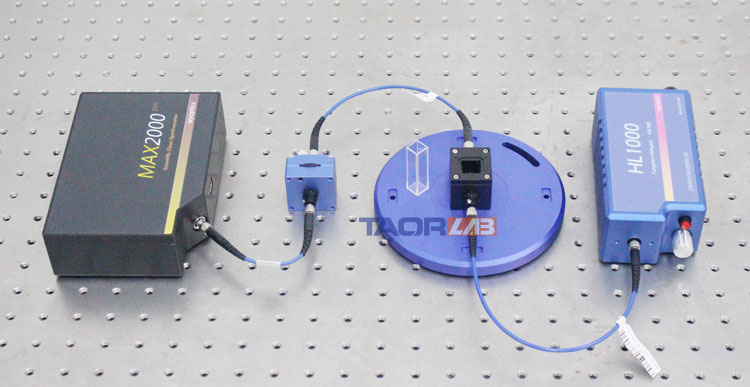

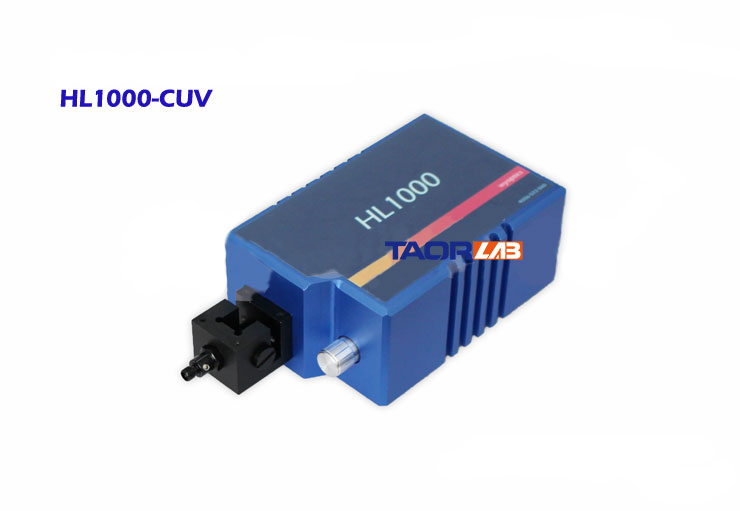

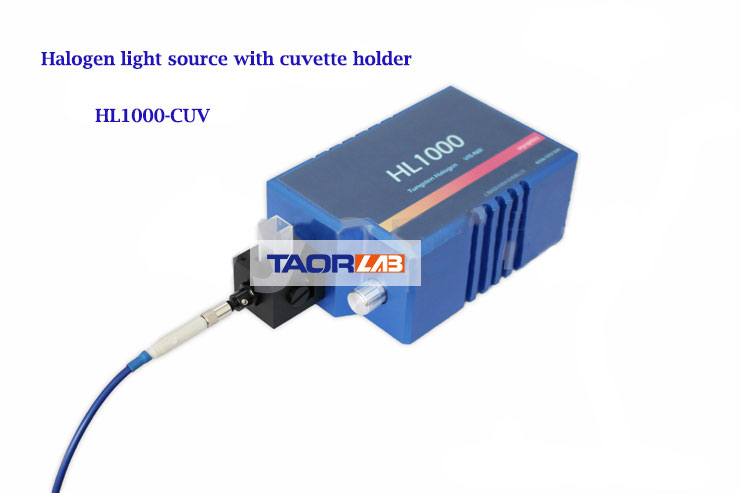

The HL1000 halogen light source can be equipped with a cuvette holder (HL1000-CUV), which can directly transmit and absorb the cuvette or filter.

[Features]
1. Long lifetime: >10000hrs
2. The output light intensity can be adjusted, the adjustment range is 0~100%.
3. Using advanced power control system, the output spectrum is stable.

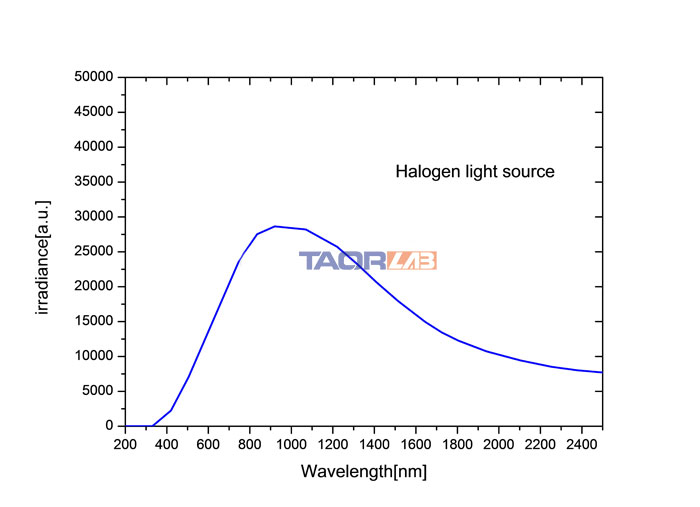

4. Wide wavelength range: 360~2500nm. It can output a smooth spectral curve and is suitable for various optical inspections.
5. The optical power output drifts no more than 2‰ per hour.
6. The filament positioning accuracy higher than ±0.127mm is used as the standard radiation source.

[Applications]
Color measurement analysis
Food and Drug Spectral Analysis
Environmental water pollution spectrum analysis, etc.

[Specifications]
Product Name: Halogen Light Source
Model: HL1000 / HL1000-CUV (Choose)
Wavelength Range: 360~2500nm
Power Consumption: 5W (1.5~20W can be customized.)
Bulb Voltage: 5V
Power Supply: 85~250V AC
Color Temperature: 2800K
Output Optical Power: 600um=3.0mW
Stability: <0.15%/hr
Size: 150mm x 75mm x 50mm
Lifetime: 10000 hrs

Model

,

Output Power

10W, 5W
