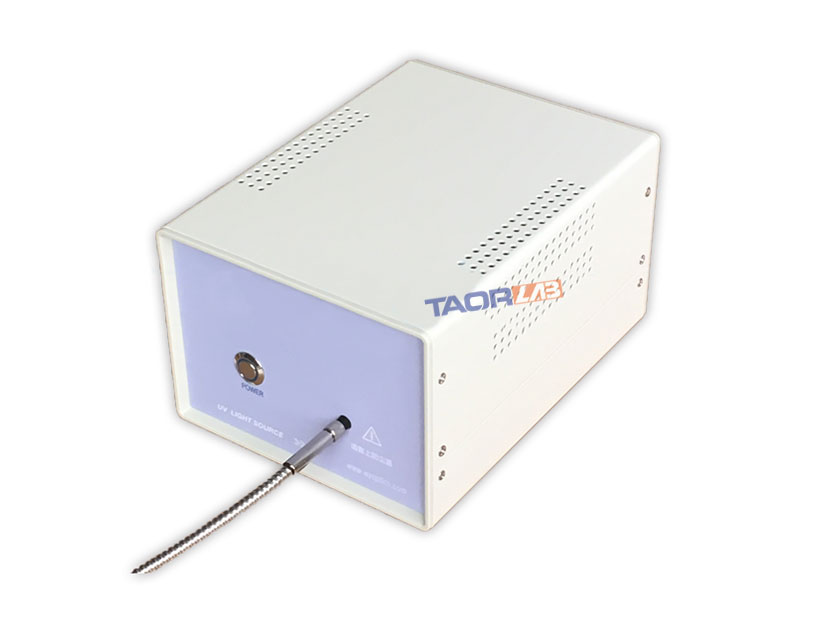

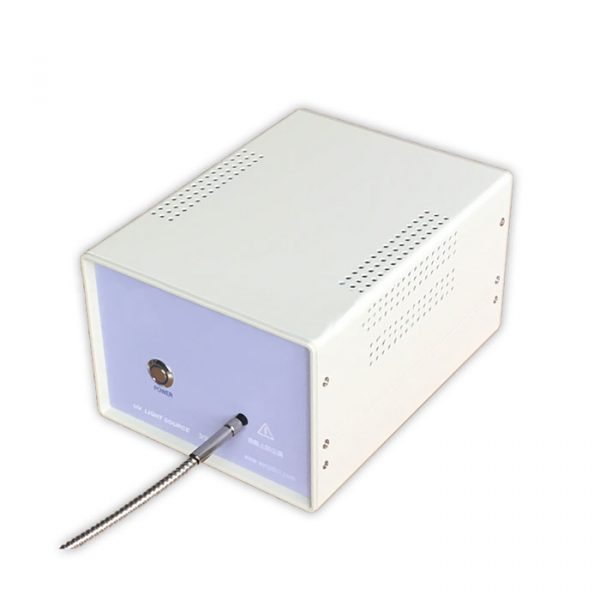

D2000 D2000-L 190~400nm Ultraviolet Deuterium Light Source Fiber Output UV Light Source

Product ID: 6052


$775$1,128

Clear

D2000 D2000-L 190~400nm Ultraviolet Deuterium Light Source Fiber Output UV Light Source

D2000 deuterium lamp light source can produce stable output spectrum of 190~400nm. Its peak-to-peak stability is less than 0.005%, and the drift is only +/-0.5% per hour.

[Features]
1. 190~400nm deep ultraviolet coverage.
2. Excellent performance. Super stable light source output with peak-to-peak stability less than 0.005%.
3. D2000 has an SMA905 interface, which is convenient to connect with spectrometer and optical fiber and other measurement accessories.
4. Long lifetime.

Note: It is recommended to use UV resistant silica fiber.

[Specifications]

Model D2000 D2000-L
Size 150 mm x 135 mm x 319 mm 150 mm x 135 mm x 319 mm
Weight 3.5 kg 3.5 kg
Power 25W(deuterium light) 30W(deuterium light)
Wavelength Range 185~600nm (deep UV deuterium bulb) 185~600nm (deep UV deuterium bulb)
Humidity Range 5~95% 5~95%
Operating current 85V/0.3A 85V/0.3A
Operating Voltage 580V@20℃ 580V@20℃
Voltage Drift <0.01% per hour <0.01% per hour
Voltage Stability <5×10^-6 peak (0.1-10.0 Hz) <5×10^-6 peak (0.1-10.0 Hz)
Operating Temperature 5℃~35℃ 5℃~35℃
Fiber Interface SMA905 (FC/PC can be customized) SMA905 (FC/PC can be customized)
Radiation Characteristics 0.5mm aperture, numerical aperture NA0.22~0.37 0.5mm aperture, numerical aperture NA0.22~0.37
Power Consumption ~78 VA ~78 VA
Warm-Up Time 40 minutes (deuterium light) 40 minutes (deuterium light)
Power Supply 85~250 V AC 50~60HZ 85~250 V AC 50~60HZ
Lifetime 1500hrs 2000hrs

Model

D2000, D2000-L
