LiGaS2 (Lithium Gallium Sulfide LGS) – Laser Crystal – Nonlinear Crystal – Customized Products

LiGaS2 (Lithium Gallium Sulfide LGS) – Laser Crystal – Nonlinear Crystal – Customized Products

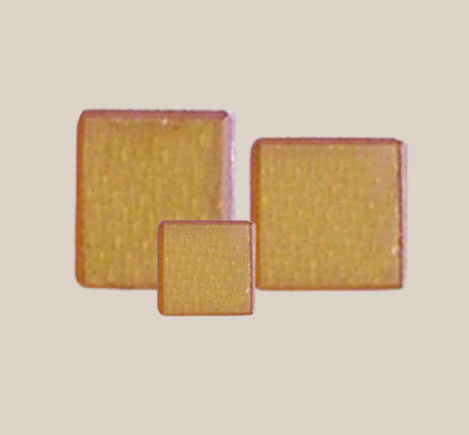

LiGaS2 (Lithium Gallium Sulfide, LGS), a new infrared nonlinear optical material (space group Pna21, point group mm2) with fibrillated zincite structure, is expected to be a new generation of nonlinear optical material with excellent overall performance due to its large nonlinear optical coefficient (d31=5.8 @2.26μm), wide transmission band (0.33~12 μm), large enough birefringence (Δn=0.04), and low two-photon absorption. LiGaS2 is expected to be a new generation of nonlinear optical material with excellent comprehensive performance in the mid-infrared band. Moreover, LiGaS2 has a wide band gap of 4.15 eV among the mid-infrared nonlinear crystals and is therefore effectively used in tunable laser systems in a wide spectral range.

Note:
$100 is a deposit, not the final price of the product. Please contact us for price if needed.

FEATURES
High damage threshold
Large band gap width
Low two-photon absorption
Stable physical and chemical properties
Wide transparent range
Low group velocity mismatch

Basic Parameters

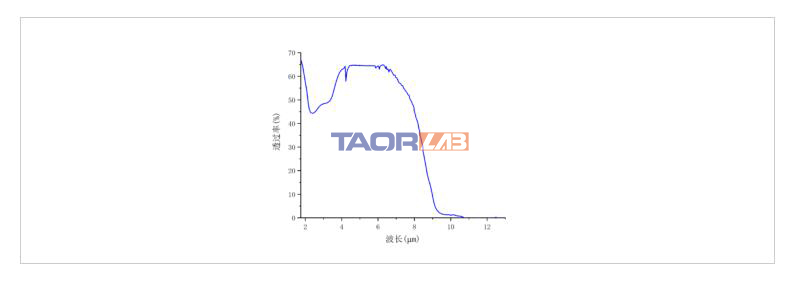

Spectrum
