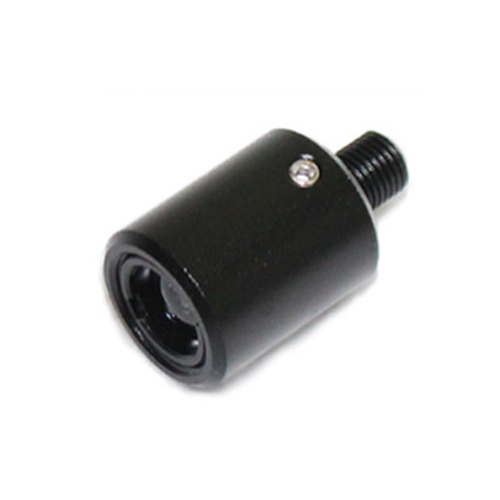

75-UV Fiber Collimator Φ10mm Fiber Focusing Lens SMA905 Interface Fiber Coupler

Product ID: 6238


$128

75-UV Fiber Collimator Φ10mm Fiber Focusing Lens SMA905 Interface Fiber Coupler

This product can be used for fiber collimation or for coupling focusing. The use of collimation, either single mode or multimode fiber can be used. If used as a coupling focus, it can only be used with multimode fiber (numerical aperture 0.22~0.37NA, core diameter ≧100μm).

[Features]
1. This collimator is used for SMA905 connector fiber, which can be easily adjusted to focus. It is easy to use, universal, compatible with other optical devices, and uses wavelengths from 200nm to 2500nm.
2. The 10mm lens is focused, and after the beam passes through the lens, the divergence angle does not exceed 2°.

[Specifications]

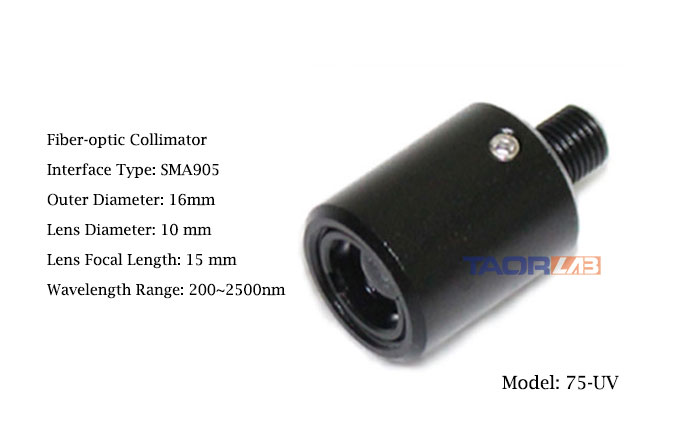

Product Name: Fiber Collimator
Model: 75-UV

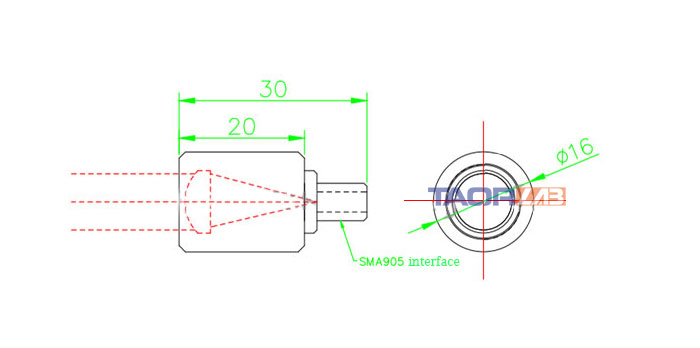

Connector: SMA905
Outer Diameter: 16mm
Lens Diameter: 10 mm
Lens Focal Length: 15 mm
Wavelength Range: 200~2500 nm
Operating Temperature: -20~150°C
Housing Material: Aluminum, black
