Er:YAG

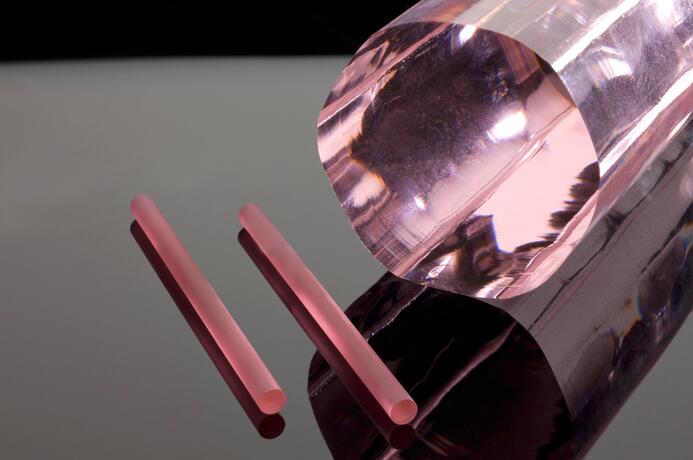

Er:YAG Crystals (Erbium-doped yttrium aluminum garnet crystal) – Laser Crystal – Gain Medium – Customized products
Product ID: 6560
$100
Er:YAG Crystals (Erbium-doped yttrium aluminum garnet crystal) – Laser Crystal – Gain Medium – Customized products
Er:YAG crystals products are also known as neodymium-doped yttrium aluminum garnet crystal, with the chemical formula of Er: Y3Al5O12. It is a laser crystal with good comprehensive performance.
Er:YAG crystals are widely used in plastic surgery and dentistry. Er:YAG laser crystal is 50% erbium-doped YAG, which can excite 2940 nm laser for medical and dental use.
Combined with different output wavelengths and Er:YAG, it is an excellent laser with a wavelength of 2.94 μm laser crystal. This wavelength is the most easily absorbed by water and hydroxyapatite among all the existing wavelengths and is considered as a high surface cutting laser.
It is a well-known medical application material. The emission wavelength of Er:YAG with 50% doping concentration is 2940 nm, which is located at the water absorption peak and can be strongly absorbed by water molecules.
The product has the characteristics of high doping concentration, excellent optical quality, excellent thermal and optical properties, high output and damage threshold. It is used in glaucoma surgery, 2940 nm laser penetrating keratoplasty and other fields.
At present, the projects we participate in include laser blood sampling instrument, which adopts the coating on both sides of Er:YAG rod and the structure of xenon lamp end pump.
Er:YAG laser wavelength is an excellent choice to improve a variety of skin conditions and aging, including poor pigmentation, photochemical light damage, solar elasticity, acne and traumatic scar formation, fine lines and mild to moderate wrinkle, rough skin texture and skin relaxation.
Note:
$100 is a deposit, not the final price of the product. Please contact us for price if needed.
The Features of Er:YAG Crystals:
Low scattering loss
Excellent optical quality
High concentrations of doping
The energy level structure of rich
High output and damage threshold
Material Specifications
| Direction | [100] or [100] <± 0.5。 |
| Parallelism | 10〞 |
| Vertical Degree | 5ˊ |
| Surface Quality | 5-Oct |
| Wavefront Distortion | <λ/8@632 nm |
| Surface Flatness | <λ/10@632.8nm |
| Clear Aperture | >90% |
| Chamfering | 0.1mm@45° |
| Thickness/Diameter Tolerance | ±0.05 mm |
| The Largest Size | Diameter:2mm-50mm, Length:5mm-180mm |
| Coating | < 0.25% @ 2940 nm |
Physical and Chemical Properties
| Chemical Formula | Er:YAlO3 |
| Crystal Structure | Rhombic Crystals-Pbnm |
| Molecular Mass | 163.884 |
| Shape | Translucent Crystalline Solid |
| Direction | b Shaft-Pbnm |
| Melting Point | 1870 °C |
| Density | 5.35 g/cm3 |
| Specific Heat Capacity | 0.557 J/g·K |
| Coefficient of Thermal Conductivity | 11.7 W/m·K (a-axis), 10.0 W/m·K (b-axis), 13.3 W/m·K (c-axis) |
| Coefficient of Thermal Expansion | 2.32 x 10-6 K-1 (a-axis), 8.08 x 10-6 K-1 (b-axis), 8.7 x 10-6 K-1 (c-axis) |
| Precise Quality | 163.872 g/mol |
| Single Isotope Mass | 163.872 g/mol |
Optical and Spectral Properties
| Laser Transition | 4I11/2→4I13/2 (High Doping), 4I13/2 → 4I15/2 (Low Doping) |
| Laser Wavelength, | 2940 nm (High Doping); 1645 nm (Low Doping) |
| Photon Energy | 6.75×10-20J@2940nm |
| Pump Absorption Bandwidth | 600~800 nm (High Doping); 1530 nm (Low Doping) |
| Damage Threshold | >500MW/cm2 |
| Emission Cross Section | 3×10-20 cm2 |
| Fluorescence Lifetime | 0.23 ms (High Doping); 2~5 ms (Low Doping) |
| Refractive Index | 1.7838@2940 nm |

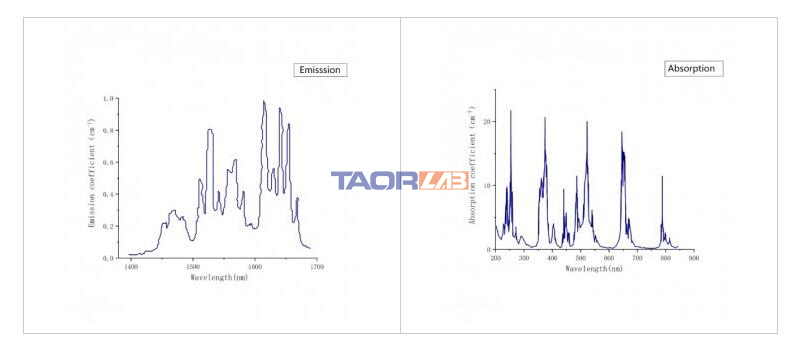

Asorption and Emission Spectra
