1080nm 3-port 1-100W High Power Polarization Maintaining PM Fiber Optic Circulator

Product ID: 7108


$100

1080nm 3-port 1-100W High Power Polarization Maintaining PM Fiber Optic Circulator

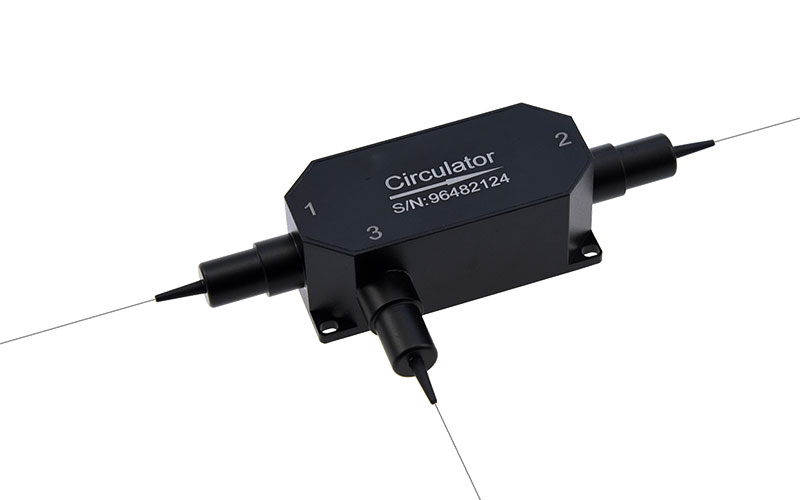

The three-port fiber optic circulator is a multi-port non-reciprocal optical device in which light can only propagate in one direction. If the signal is input from port 1, it will be output from port 2; if the signal is input from port 2, it will be output from port 3, and the output loss is very small; when the light is input from port 2, the loss is very large when it is output from port 1. Similarly, when light is input from port 3, the loss when output from ports 1 and 2 is also very large.

TaorLab can produce three-port, four-port, different power and different wavelength fiber optic circulators, which are widely used in fiber lasers, instrumentation, dispersion compensation devices, fiber optic sensing, scientific research and other fields.

Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.

Specification

Parameter Unit Value
Center Wavelength nm 1080
Operating Wavelength Range nm ±10
Peak Isolation (Type) dB 30
Isolation (min) dB 25
Insertion Loss(Type) dB 0.8
Insertion Loss(max) dB 1.2
Extinction Ratio (min) dB 20
Crosstalk (min) dB 50
Minimum Return Loss dB 45
Optical Power(CW) W 1, 2, 5, 10, 20, 30, 50,100 Optional
Peak Power(Pulse) KW 1, 5, 10, 20 Optional
Working Axis Single-axis work or double-axis work
Fiber Type PM980, PM10/125DC, PM20/400DC
Package Size mm 64x28x26 or others
Operating Temperature 0 ~ +60
Storage Temperature -10 ~ +75

*The temperature measurement environment is 25℃;
*The above data does not include connectors. Different power packages have different sizes. Please contact us for confirmation of specific specifications.

Package Dimensions


TaorLab fiber circulator

Ordering Information

TLHPCIR Working Wavelength Average Power Power Type Peak Power Working Axis Fiber Type Pigtail Length Pigtail Type
1080=1080nm 01=1W
05=5W
10=10W
20=20W
S=Others
C=CW
P=Pulse
0=Continuous light
10=10KW
20=20KW
B=Double-axis work
S=Slow axis work
F=Fast axis work
P9=PM980
PM10/125DC=PLMA-GDF-10/125-M
PM20/400DC=PLMA-GDF-20/400-M
08=0.8m
10=1.0m
15=1.5m
S=Others
B=250um bare fiber
L=900um loose tube
S=Others

*Model reference: TLHPCIR-1080-10-P-10-S-PM10/125DC-10-L-N
Three-port high-power polarization-maintaining optical fiber circulator, center wavelength 1080nm, withstands maximum average power 10W, pulse power 10KW, slow-axis operation, PLMA-GDF-10/125-M, fiber length 1 meter, 900um loose tube, not included head.
