Ultra-high Vacuum Fiber Feedthrough VFT Vacuum Through Tube Fiber Through Interface Can be Customized

Product ID: 6212


$939

Ultra-high Vacuum Fiber Feedthrough VFT Vacuum Through Tube Fiber Through Interface Can be Customized

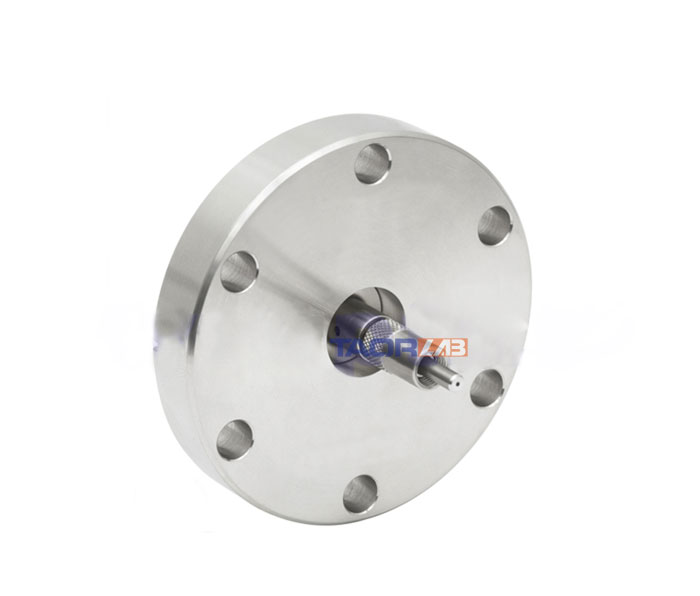

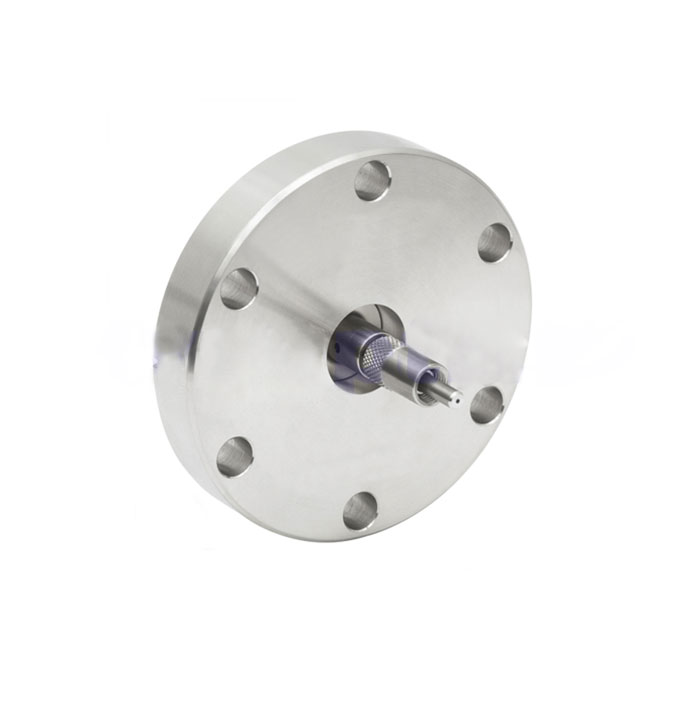

The VFTT ultra-high vacuum fiber feedthrough adopts welding type or integrated structure, and its sealing performance is more, allowing the vacuum level to be as low as 1 × 10-10 Torr, and can be used at temperatures up to 250 °C. VFTT includes two transmission ranges of multi-mode fiber, ultraviolet light/visible light: 200~800 nm, visible light/near infrared: 400~2200 nm. In addition, it can also be customized according to customer needs.

Ultra-high Vacuum Fiber Feedthrough

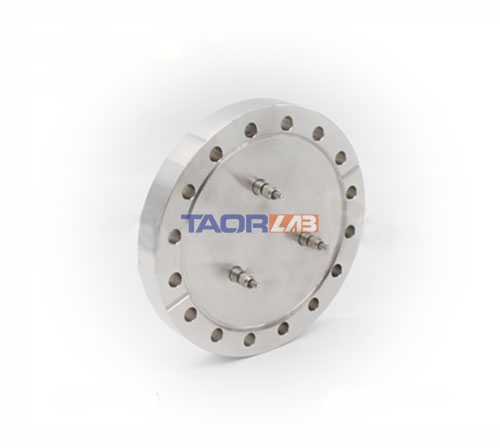

This product can use various flanges of CF KF ISO series, and can also be customized according to customer requirements.
The optical fiber connectors at both ends are conventional SMA905, FC, ST, etc., and can also be customized according to customer requirements. The flange dimensions can also be customized. Please contact us.

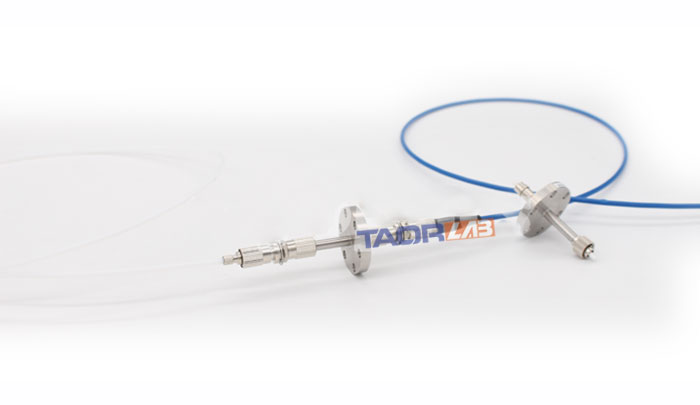

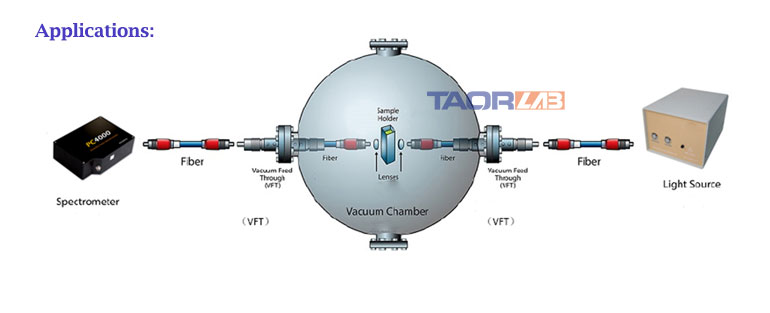

It is compatible with our vacuum multi-mode fiber optic patch cords, allowing users to couple light from the external environment to a vacuum chamber through fiber optic cables. When using fiber optic patch cords in a vacuum environment, please ensure that the cables are compatible with vacuum (it is recommended to match with TaoLab Vacuum fiber).

Fiber core selection:

Abbreviation Name Core diameter Cladding diameter Coating diameter Coating material Wavelength range Temperature
UV Deep UV Fiber 100μm 115μm 245μm Epoxy resin 200~1100nm -60~+85℃
200μm 220μm 320μm
400μm 440μm 700μm
600μm 660μm 960μm
800μm 840μm 1100μm
1000μm 1050μm 1600μm
IR Near IR Fiber 105μm 125μm 245μm Epoxy resin 400~2500nm -60~+85℃
200μm 220μm 320μm
400μm 440μm 700μm
600μm 660μm 900μm
800μm 880μm 1100μm
1000μm 1100μm 1600μm
XSR Anti-ultraviolet radiation fiber 100μm 110μm 160μm Polyimide 185~1100nm -190~+350℃
200μm 220μm 240μm
400μm 440μm 480μm
600μm 660μm 710μm
SMF Single-mode Fiber 9.2±0.4μm 125μm 245μm Epoxy resin 120~1700nm -60~+85℃
SM650 3.6~5.3μm 125μm 245μm 600~800nm
SM780 5.0±0.5μm 125μm 245μm 750~1000nm
SM850 4.7~6.9μm 125μm 245μm 800~1000nm
MM50 Multi-mode Fiber 50μm 125μm 245μm Epoxy resin 400~2400nm -60~+85℃
MM625 62.5μm 125μm 245μm
