200~2500nm 50~1000μm Optional Short Optical Fiber Connector SMA905 Standard Interface

200~2500nm 50~1000μm Optional Short Optical Fiber Connector SMA905 Standard Interface

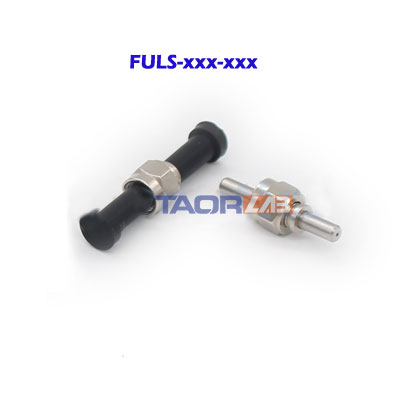

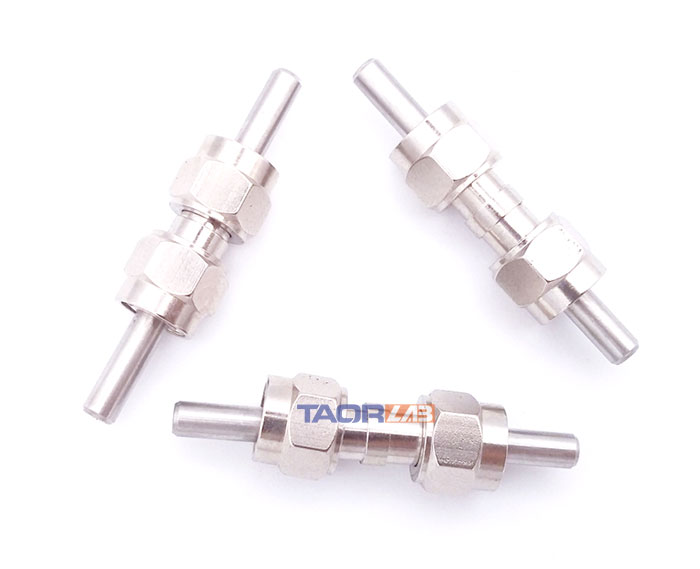

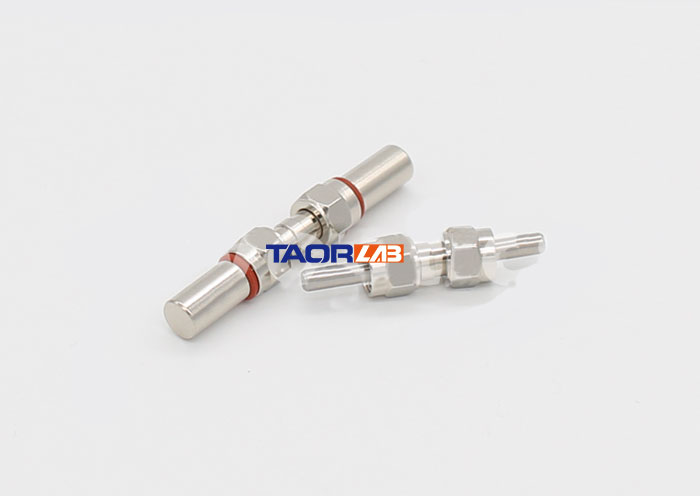

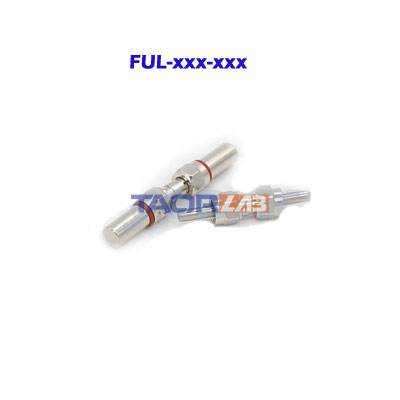

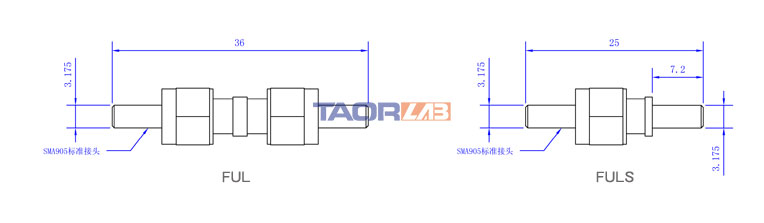

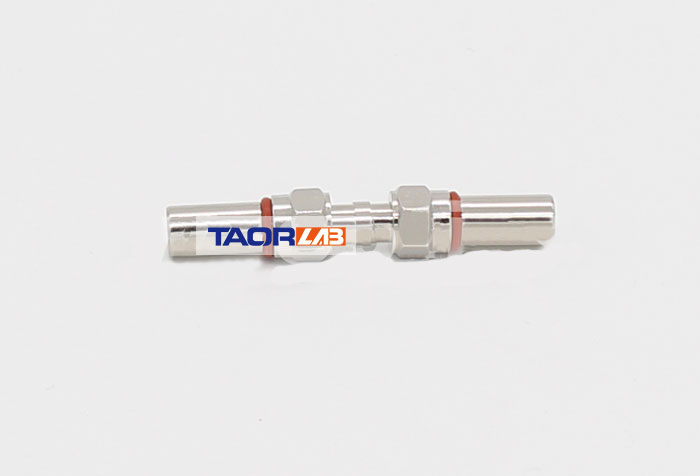

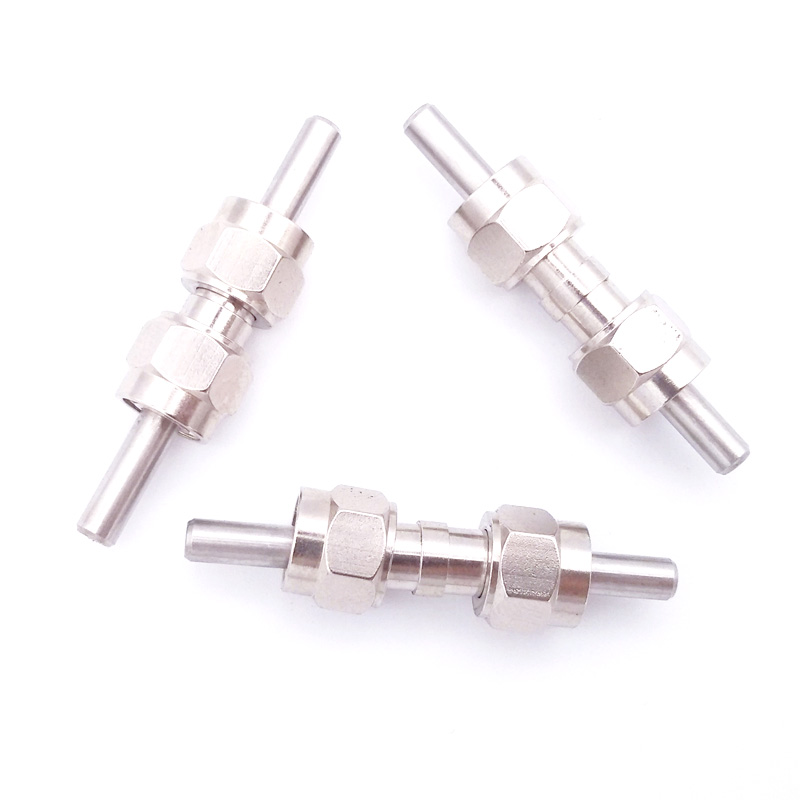

This product is produced internally with imported quartz optical fiber, SMA905 standard interface, the core diameter is 50~1000um, and the wavelength is 200~2500nm. We can also customize the FC/PC interface according to customer needs.

Model selection:
FUL-50-VIS
FUL-100-VIS, FUL-100-IR
FUL-200-UV, FUL-200-IR
FUL-400-UV, FUL-400-IR
FUL-600-UV, FUL-600-IR
FUL-800-UV, FUL-800-IR
FUL-1000-UV, FUL-1000-IR

FUL series	FULS series	Description
FUL-50-VIS	FULS-50-VIS	Core diameter: 50μm – Near-infrared silica fiber (300-1100nm)
FUL-100-VIS	FULS-100-VIS	Core diameter: 100μm – Near-infrared silica fiber (300-1100nm)
FUL-100-IR	FULS-100-IR	Core diameter: 100μm – Near-infrared silica fiber (400-2500nm)
FUL-200-UV	FULS-200-UV	Core diameter: 200μm – Ultraviolet silica fiber (200-1100nm)
FUL-200-IR	FULS-200-IR	Core diameter: 200μm – Near-infrared silica fiber (400-2500nm)
FUL-400-UV	FULS-400-UV	Core diameter: 400μm – Ultraviolet silica fiber (200-1100nm)
FUL-400-IR	FULS-400-IR	Core diameter: 400μm – Near-infrared silica fiber (400-2500nm)
FUL-600-UV	FULS-600-UV	Core diameter: 600μm – Ultraviolet silica fiber (200-1100nm)
FUL-600-IR	FULS-600-IR	Core diameter: 600μm – Near-infrared silica fiber (400-2500nm)
FUL-800-UV	FULS-800-UV	Core diameter: 800μm – Ultraviolet silica fiber (200-1100nm)
FUL-800-IR	FULS-800-IR	Core diameter: 800μm – Near-infrared silica fiber (400-2500nm)
FUL-1000-UV	FULS-1000-UV	Core diameter: 1000μm – Ultraviolet silica fiber (200-1100nm)
FUL-1000-IR	FULS-1000-IR	Core diameter: 1000μm – Near-infrared silica fiber (400-2500nm)
Operating temperature		-30~+200℃ (HT high temperature can reach 300℃)
SMA adapter		SMA905 adapter, each short optical fiber connector needs to be equipped with 2 pcs.
