Nd:YCOB – Laser Crystal – Gain Medium – Customized Products

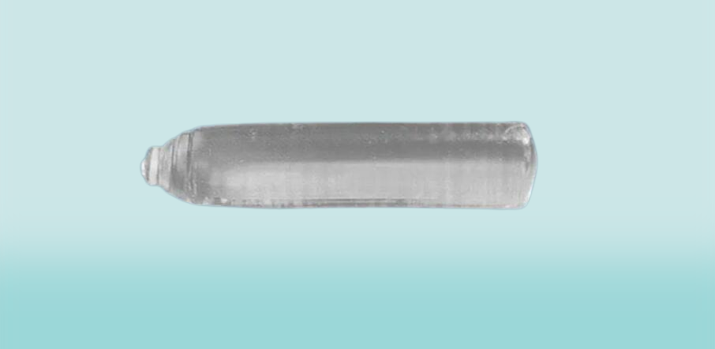

Nd: YCOB crystal products, also known as Nd: YCa4O(BO3)3 crystal. It is a kind of laser crystal product with excellent comprehensive performance. It is widely used in the fields of frequency doubling laser, ranging and LD pumping. The product has uniform melting behavior and self-doubling laser action characteristics. Can be used in solid state laser, Nd: YCOB laser, continuous wave self-frequency doubling laser, diode pump ranging system products.

Note:
$100 is a deposit, not the final price of the product. Please contact us for price if needed.

Features
Consistent melting behavior
Has the characteristics of self-multiplier laser action

Standard

Orientation Tolerance < 0.5°
Thickness/Diameter Tolerance ±0.01 mm
Surface Finish <λ/8 @632nm
Wavefront Distortion <λ/4 @632nm
Surface Quality 5-Oct
Parallel 30〞
Vertical 15ˊ
Clear Aperture >90%
Chamfer <0.2×45°

Basic Parameters

Chemical Formula Nd:YCa4O(BO3)3
Crystal System Monoslope (m), Biaxial
Lattice Constant a = 0.8076Å，b=1.6020 Å，

c = 0.3527Å，β=101.23°
Melting Point 1510℃
Density 3.31 g/cm3
Mohs Hardness 6.0-6.5 (mohs)
Growth Method Czochralski growth
Refractive Index@1064nm nx=1.6844, ny=1.7152, nz=1.7256
Fluorescence Lifetime 105μm
Emission Cross Section 0.45×10-19 cm2
Absorption Peak 796, 812nm
Absorption Cross Section at Pump Wavelength 2.3×10-20 cm2
Absorption Cross Section at SFD Wavelength 0.40×10-20 cm2
Transmission Range 1000-2600nm
Damage Threshold >1 Gw/cm2@532 nm, 6 ns
SHG的deff @1.06 μm (Type I) 1.1 pm/V

Parameters of the Sellmeier Equation

Sellmeier equation n2(λ)=A+B/(λ2-C)-D•λ2
Parameter nx ny nz
A 2.78232 2.88739 2.92685
B 0.01120 0.01223 0.01474
C 0.08990 0.08855 0.07466
D 7.2561×10−5 6.1142×10−5 5.2148×10−5

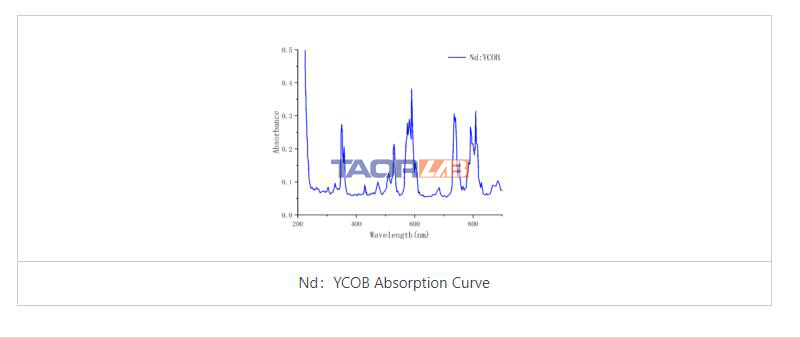

Spectrum
