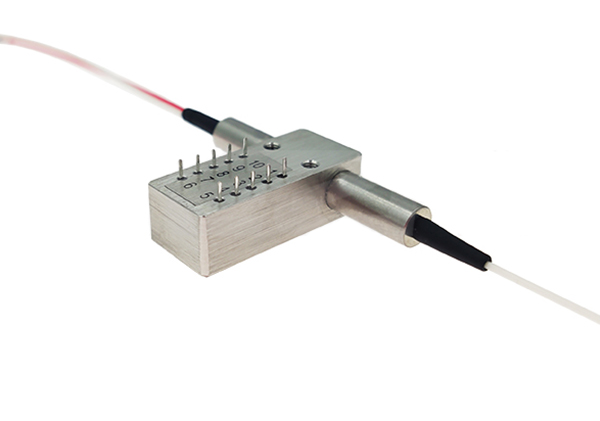

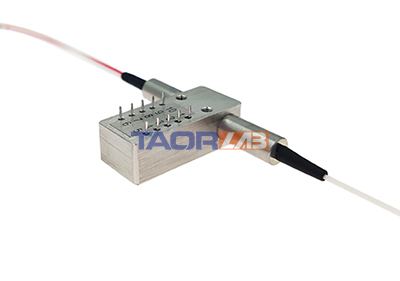

1×1 1×2 Polarization Maintaining Optical Switch PM Fiber Optic Switch
| Features | .jpg) |
| Low Insertion Loss High crosstalk Compact package |
|
| Application | |
| Cofiguratable OADM Optical Cross and connection system Network Monitor Optical fiber ring protection |
Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.
Specifications
| Parameter | Value | |
| Type | 1×1, 1×2 | |
| Wavelength (nm) | 1310 or 1550 | 1064 |
| Insertion Loss (dB) | ≤0.55 (Typ 0.4) | ≤0.80 (Typ 0.6) |
| Extinction Ratio (dB) | 18 | 16 |
| Cross Talk (dB) | ≥55 | |
| Return Loss (dB) | ≥55 | |
| Repeatability (dB) | ≤±0.05 | |
| Switch Time (ms) | 10 | |
| Lifetime (cycle) | >1,000,000 | |
| Switch mode | Latching or Non-latching | |
| Operating Temperature (°C) | -15 ~ +70 | |
| Storage Temperature (°C) | -40 ~ +85 | |
| Drive Voltage (V) | 5 ±0.5 DC or 5V Pulse | |
| Work Current (mA) | ＜50 | |
| Fiber Type | 1310 or 1550nm PM panda fiber | 980nm PM panda fiber |
| Dimension (LxMxH) (mm) | (L)26.5×(W)13.4×(H)11 (P2) | |
*Above specifications are for devices without the connectors.
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.
*The PM fiber and the connector key are aligned to the slow axis.
Electrical Drive
|
Optical Path |
Electrical Drive | Status Sensor | ||||||
| Pin1 | Pin10 | Pin5 | Pin6 | Pin2-3 | Pin3-4 | Pin7-8 | Pin8-9 | |
| 1-2 | +V Pulse | GND | N/A | N/A | open | close | close | open |
| 1-3 | GND | +V Pulse | N/A | N/A | close | open | open | close |

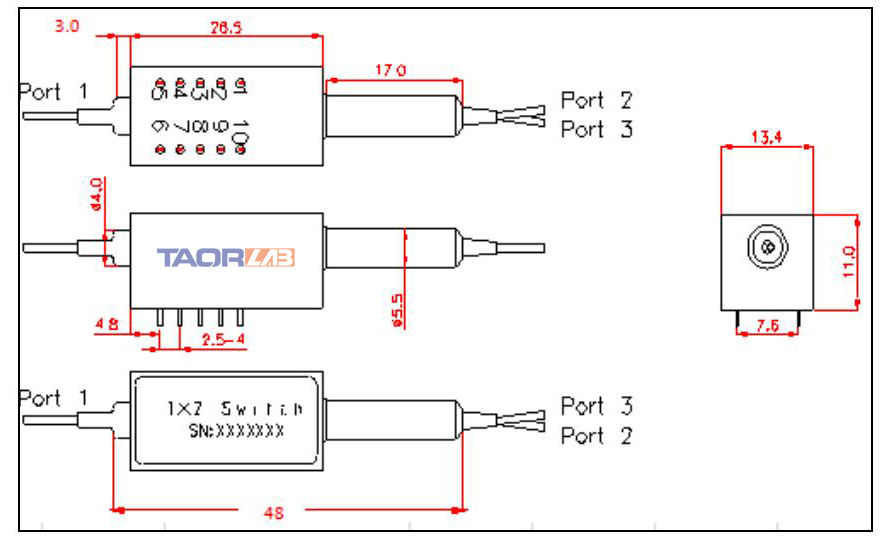

Package Dimension
Ordering Information
| PMSW | Wavelength | Type | Mode | Fiber Type | Pigtail Type | Length | Connector |
| 1064=1064nm 1310=1310nm 1550=1550nm |
1=1×1 2=1X2 |
L=Latching N=Non-Latching |
1=PM1310 2=PM1550 3=PM1064 |
1=250um bare fiber 2=900um loose tube |
H=0.5m 8=0.8m 1=1.0m 5=1.5m 2=2.0m 3=3.0m 4=4.0m A=2.5m B=5.0m |
0=None 1=FC/UPC 2=FC/APC 3=LC/UPC 4=LC/APC 5=SC/APC 6=SC/UPC |
