IS30-F Diffuse Reflection Type 200-2500nm Wide Band High Quality Integrating Sphere

Product ID: 6217


$1,080

IS30-F Diffuse Reflection Type 200-2500nm Wide Band High Quality Integrating Sphere

The IS series of high-quality integrating spheres have a wide spectrum range covering ultraviolet-visible-near infrared (200~2500nm). IS series high-quality integrating sphere adopts imported high-quality PTFE material, which can provide ultra-high reflectivity in the 200~2500nm band. IS series of high-quality integrating spheres can measure reflection, transmission, fluorescence and radiation spectra, and are widely used in various industries.

IS series high-quality integrating sphere ports are all SMA905 standard interfaces (the interface can also be customized). The vertical optical path is 8° excitation input and the ports are equipped with fiber collimators. The output port is a 90° vertical integrating sphere output.

Our integrating sphere is far superior to the cheap barium sulfate liner integrating sphere on the market, resulting in a better Lambertian reflective surface.
The main differences are as follows:
1. The inner tank has a higher reflectivity and a more delicate internal surface structure.
2. The more stable material will not turn yellow due to oxidation reaction with air.

Broad applicability:

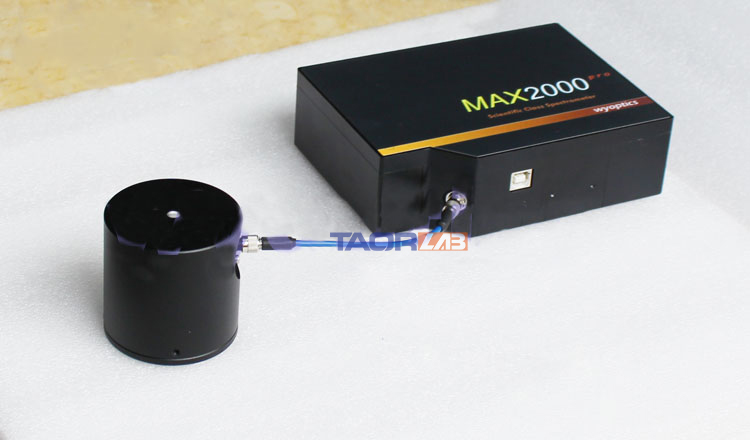

Each IS integrating sphere has wide applicability and can be combined with TaorLab’s quartz fiber, fiber light source, and various optical spectrometers to form a system for various sample measurements. It is suitable for measuring various samples, such as rough sample surface reflectance, rough sample transmittance, light source radiation and so on. These integrating spheres are very suitable for measuring variegated samples, as well as for measuring opaque or highly directional samples.
In addition, the IS integrating sphere with light trap can distinguish between specular reflection and diffuse reflection of the sample and measure them separately.

IS Integrating Sphere Features:
· The integrating sphere has a compact design, two or three SMA905 optical fiber interfaces, and a vertical optical path 8° design;
· The integrating sphere is made of PTFE liner material, suitable for the 200-2500 nm band;
· Integrating sphere is suitable for diffuse irradiation/vertical measurement mode and vertical irradiation/diffuse measurement mode that comply with CIE standards;
· The integrating sphere is suitable for the transmittance measurement of rough samples such as embossed glass;
· Integrating sphere is suitable for radiation measurement of light sources such as LEDs and bulbs;
· Integrating sphere has a wealth of choices, the diameter of the sample port is 10 mm;
· Integrating spheres are widely used in pipeline operations. The distance between the sample and the measuring port of the integrating sphere can be 0~10mm.

Use suggestions :
1. The inner surface of IS series high-quality integrating sphere is made of PTFE material to prevent dust from falling and hand touch. Avoid washing;
2. It is inevitable to contaminate the material during normal use, so despite careful protection, long-term use may still cause surface contamination. Therefore, it is recommended that you use a new integrating sphere after long-term use;
3. If you are used for reflection measurement, it is recommended to buy a reference white board or UV reference aluminum mirror. Buy reference whiteboard for non-mirror solids, buy UV reference aluminum mirrors for mirrored solids;
4. After the experiment, please use black tape to stick the open integrator entrance to prevent dust from falling in.

Model selection:

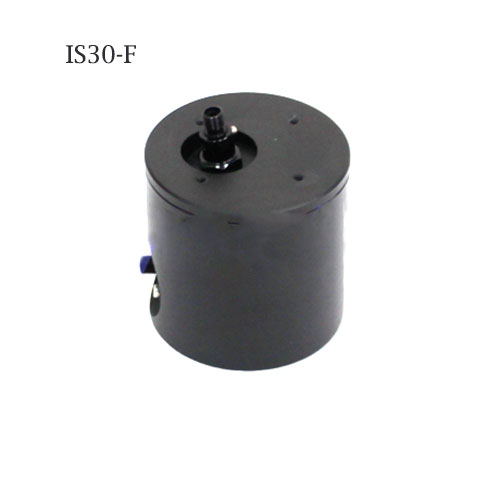

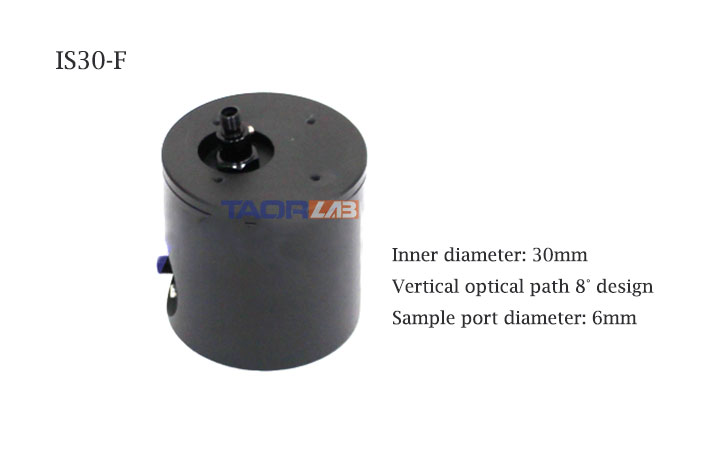

Model IS30-F
(Current IS)
IS30-T IS50-F IS50-T IS50-X IS50-L
Description Diffuse reflection type (F) Transmission type (T) Diffuse reflection type (F) Transmission type (T) With light trap (X) Two optical inputs (L)
Work Styles A C A C D B
Liner diameter 30mm 50mm
Sample port diameter 6mm 10mm
External dimensions Diameter: 59mm, height: 58mm Diameter: 80mm, height: 58mm
Weight 330g 730g
Spectral range 200~2500 nm
Liner material Imported high-quality PTFE to make integrating sphere liner
Reflectivity >98% (400~1500 nm); >95%(250~2500 nm)

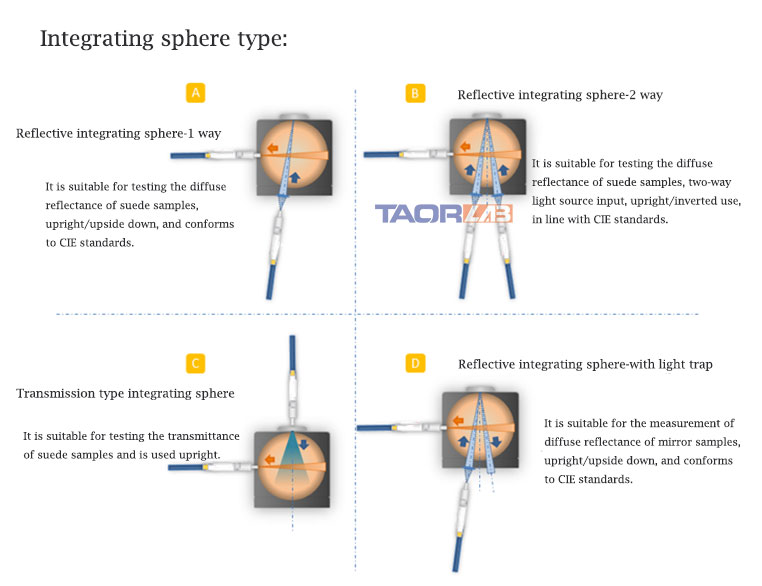

Integrating sphere work styles:


integrating sphere

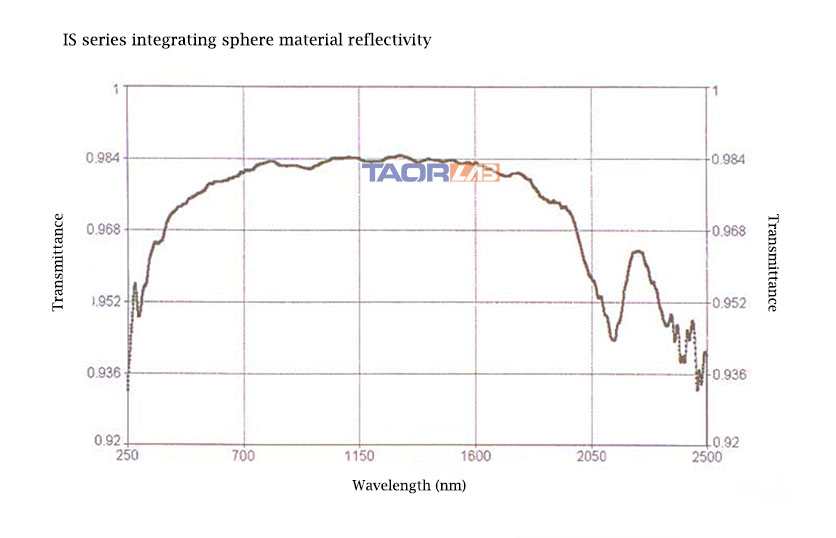

Integrating sphere material reflection curve:


integrating sphere

integrating sphere

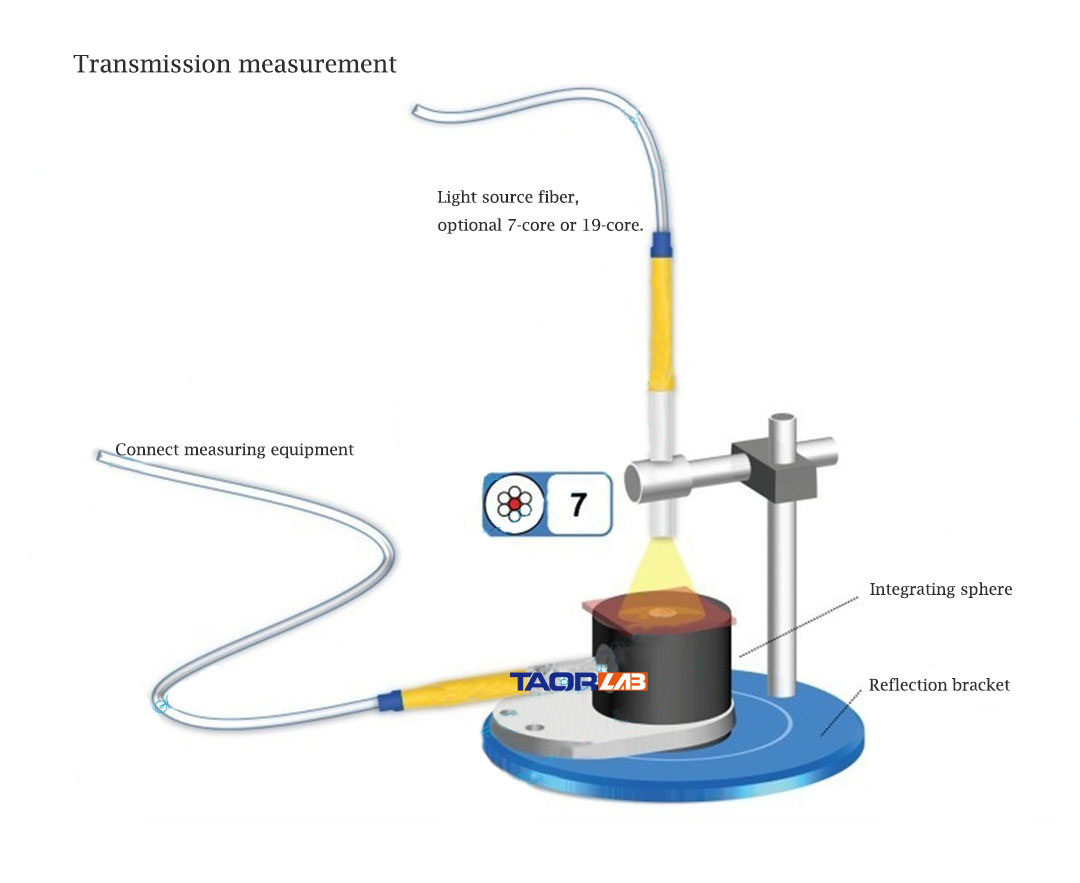

Integrating sphere transmission measurement

integrating sphere

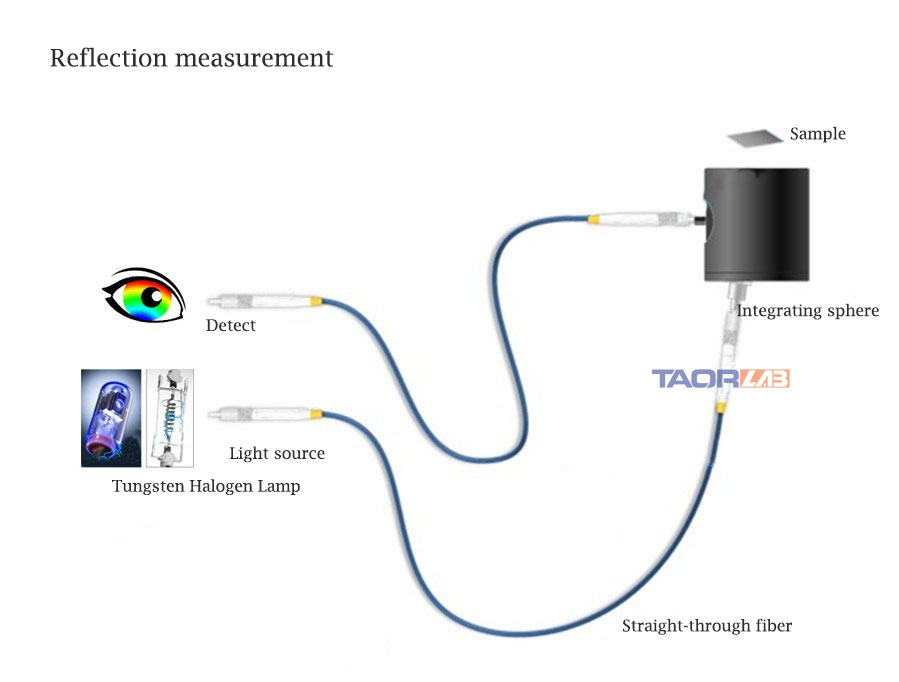

Integrating sphere reflection measurement

integrating sphere

integrating sphere

integrating sphere

integrating sphere

Related Products:

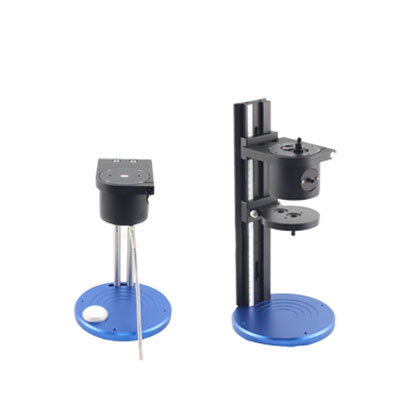

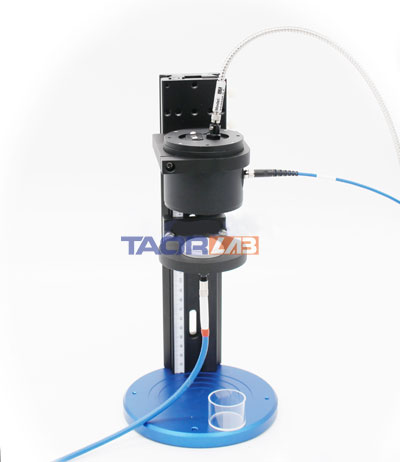

Integrating sphere bracket

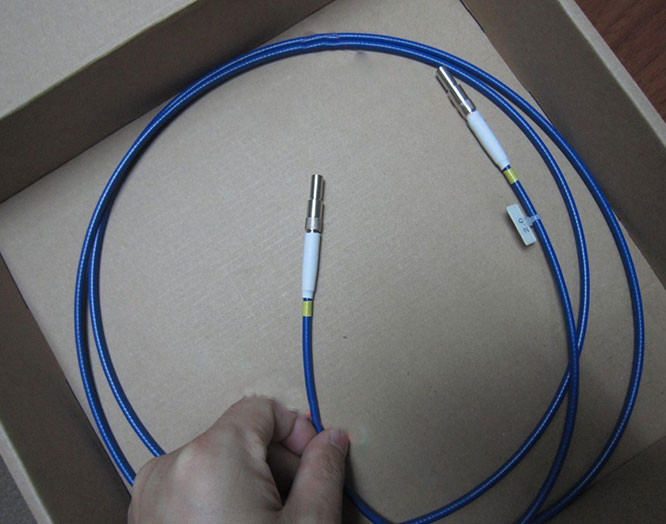

Silica Optical Fiber
