HGTR-KTP

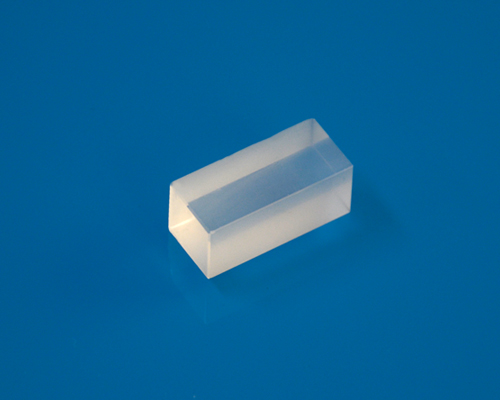

HGTR-KTP (Highly Gray Trace Resistant KTP) – Nonlinear Crystal – Customized Products
Product ID: 6671
$100
HGTR-KTP (Highly Gray Trace Resistant KTP) – Nonlinear Crystal – Customized Products
HGTR-KTP (Highly Gray Trace Resistant KTP) nonlinear crystal, the direct manifestation of gray trace is the appearance of black or gray damage traces inside the crystal, while HGTR-KTP nonlinear crystal greatly reduces the Ti+3 ion center defect inside the crystal during laser frequency doubling, its nonlinear optical coefficient, high thermal conductivity, small mismatch and small walking away angle, no deliquescence, stable chemical and mechanical properties, is now widely used in Nd:YAG and Nd:YVO4 lasers with 1064-532 nm wavelengths are widely used as frequency doubling crystal materials. In addition, it can also be used to make components for frequency doubling, frequency mixing, electro-optical modulation, optical parametric oscillation and optical waveguide.
Note:
$100 is a deposit, not the final price of the product. Please contact us for price if needed.
FEATURES
No deliquescence
High optical quality
Low half wave voltage
Large nonlinear coefficient
High anti ash track performance
High light damage threshold
Stable chemical and mechanical properties
Large range of allowable temperature matching and allowable angle matching
Physicochemical Properties
| Property | Value |
| Chemical Formula | HGTR-KTiOPO4 |
| Crystal Structure | Rhombic system, space group Pna21, point group mm2 |
| Lattice Constant | a=6.404Å |
| b=10.616Å | |
| c=12.814Å | |
| Z=8 | |
| Mohs Hardness | 5 |
| Density | 3.01 g/cm3 |
| Melting Point | 1172°C |
| Thermal Conductivity | 13 W/m/K |
| Thermal Coefficient of Expansion | ax=11×10-6/℃ |
| ay=9×10-6/℃ | |
| az=0.6×10-6/℃ |
Nonlinear Optical Properties
| SHG phase matching range | 497-1800nm (Type II) |
| Nonlinear Coefficient @1064nm | deff(II)≈(d24-d15)sin2φsin2θ-(d15sin2φ+d24cos2φ)sinθ |
| d31=2.54pm/V | |
| d32=1.35pm/V | |
| d33=16.9pm/V | |
| d24=3.64pm/V | |
| d15=1.91pm/V | |
| Thermo-optical Coeffecient | dnx/dT=1.1*10-5/℃ |
| dny/dT=1.3*10-5/℃ | |
| dnz/dT=1.6*10-5/℃ | |
| Damage Threshold: [GW/cm ] | >0.5 @1064 nm,TEM00, 10ns,10HZ(AR-coated) |
| >0.3 @532 nm,TEM00, 10ns,10HZ(AR-coated) |
Linear Optical Properties
| Transparency range | 350-4500 nm |
| Absorption Coefficient | <0.1%/cm @1064 nm |
| <1%/cm @532 nm | |
| Refractive Index | nx=1.7377, ny=1.7453, nz=1.8297 @1064nm |
| nx=1.7780, ny=1.7886, nz=1.8887 @532nm |
|
| Sellmeier Equation （λ in μm） | nx2=3.0065+0.03901/(λ2-0.04251)-0.01327λ2 ny2=3.0333+0.04154/(λ2-0.04547)-0.01408λ2 nz2=3.3134+0.05694/(λ2-0.05658)-0.01682λ2 |

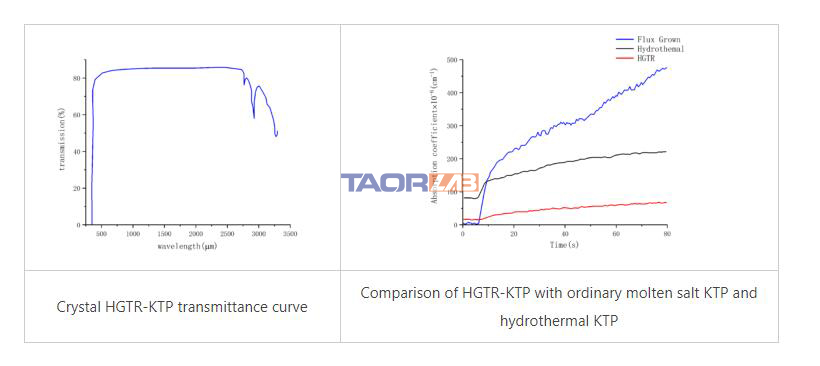

Spectrum
.jpg)
