780-1000nm Pump Wavelength 1064/1080/1550/2000nm Cladding Power Stripper with Fiber

Product ID: 7192

Add to wishlist
Compare

$100

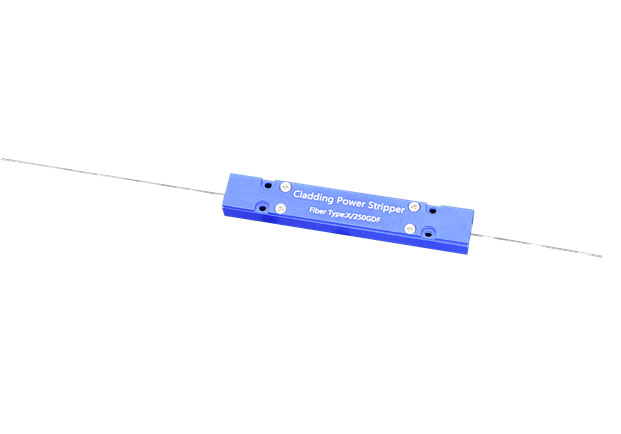

780-1000nm Pump Wavelength 1064/1080/1550/2000nm Cladding Power Stripper with Fiber

In high-power fiber lasers and fiber amplifiers, pump light and signal light undergo energy exchange in the doped fiber. The pump is weakened and the signal is enhanced. The pump energy cannot be fully absorbed, and there will always be some residue, and will be in the double package. This energy is often unnecessary and may cause damage to subsequent devices. CPS can effectively “strip” the energy within the cladding. The residual pump is even the reflected signal light returned by the inner cladding, and the signal light transmitted in the core can be well maintained, including the signal light power and beam quality factor (M2).

Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.

Product specifications

Parameter Unit Value
Signal wavelength nm
1064/1080/1550/2000
Pump wavelength range nm 780-1000nm
Min Cladding stripping capability dB 18-20
Input/output fiber type –
Double-clad optical fiber, see the table below for details
Max insertion loss dB 0.2
Min extinction ratio dB 18 (for PM fiber)
Stripping power W
10,20,50,100,200 or others
Fiber length m 1 or other
Package size mm
65X12X7 80X12X8 100X15X10
Operating temperature ℃ 0～ +50
Storage temperature ℃ -20 ～ +75

*The temperature measurement environment is 25℃;
*Fiber polarization-maintaining or non-polarization-maintaining optional.


Various optical fiber indicators and specifications

Signal wavelength (nm) Input/output fiber signal optical insertion loss Min. Stripping efficiency
Max. Stripping power
1020~1080 6/125DC ≤0.2dB 20dB 20W
1020~1080 10/125DC ≤0.2dB 20dB 50W
1020~1080 12/125DC ≤0.2dB 20dB 50W
1020~1080 15/125DC ≤0.2dB 20dB 50W
1020~1080 20/125DC ≤0.2dB 20dB 50W
1020~1080 20/200DC ≤0.2dB 20dB 50W
1020~1080 25/250DC ≤0.2dB 20dB 200W
1020~1080 30/250DC ≤0.2dB 20dB 300W
1020~1080 20/400DC ≤0.2dB 18dB 500W
1020~1080 PM6/125DC ≤0.2dB/ER>18dB 20dB 20W
1020~1080 PM10/125DC ≤0.2dB/ER>18dB 20dB 50W
1020~1080 PM15/125DC ≤0.2dB/ER>18dB 20dB 50W
1020~1080 PM20/125DC ≤0.2dB/ER>18dB 20dB 50W
1020~1080 PM20/200DC ≤0.2dB/ER>18dB 20dB 100W
1020~1080 PM25/250DC ≤0.2dB/ER>16dB 20dB 300W
1020~1080 PM30/250DC ≤0.2dB/ER>16dB 20dB 300W
1020~1080 PM20/400DC ≤0.2dB/ER>16dB 18dB 500W
1530~1570 SM-GDF-1550 ≤0.2dB 20dB 20W
1530~1570 12/130µm,NA0.20/0.46 ≤0.2dB 20dB 50W
1530~1570 25/300µm,NA0.09/0.46 ≤0.2dB 20dB 200W
1530~1570 PM-GDF-1550 ≤0.2dB/ER>18dB 20dB 20W
1530~1570 PM12/130µm,NA0.20/0.46 ≤0.2dB/ER>18dB 20dB 50W
1530~1570 PM25/300µm,NA0.09/0.46 ≤0.2dB/ER>18dB 20dB 200W
1950~2050 10/130µm,NA0.15/0.46 ≤0.2dB 20dB 30W
1950~2050 25/250µm,NA0.09/0.46 ≤0.2dB 20dB 100W
1950~2050 25/400µm,NA0.09/0.46 ≤0.2dB 20dB 100W
1950~2050 PM10/130µm,NA0.15/0.46 ≤0.2dB/ER>18dB 20dB 30W
1950~2050 PM25/250µm,NA0.09/0.46 ≤0.2dB/ER>18dB 20dB 100W



Package Dimensions

Package type P1 P2 P3 P4
Size (mm) Ф4.0×60 65x12x7 80x12x8 100x15x10




TaorLab Mode field adapter


TaorLab Mode field adapter


TaorLab Mode field adapter


TaorLab Mode field adapter


Model Information

TLCPS
 ① ② ③ ④ ⑤ ⑥
Pump wavelength Signal wavelength Stripping power Fiber type Pigtail length Package type
793=793nm
915=915nm
976=976nm
S=other		 1064=1064nm
1550=1550nm
2000=2000nm
S=other		 020=20W
030=30W
050=50W
100=100W
S=other
10/130DC=10/130DC
20/130DC=20/130DC
30/250DC=30/250DC
 08=0.8m
10=1.0m
20=2.0m
S=other		 1=P1
2=P2
3=P3
4=P4

*Model Reference: TLCPS-976-1064-020-10/125DC-10-3
Cladding power stripper, pump wavelength 976nm, signal wavelength 1064nm, stripping power 20W, using LMA-GDF-10/125-M fiber, pigtail length 1 meter, package size 80X12X8mm.
