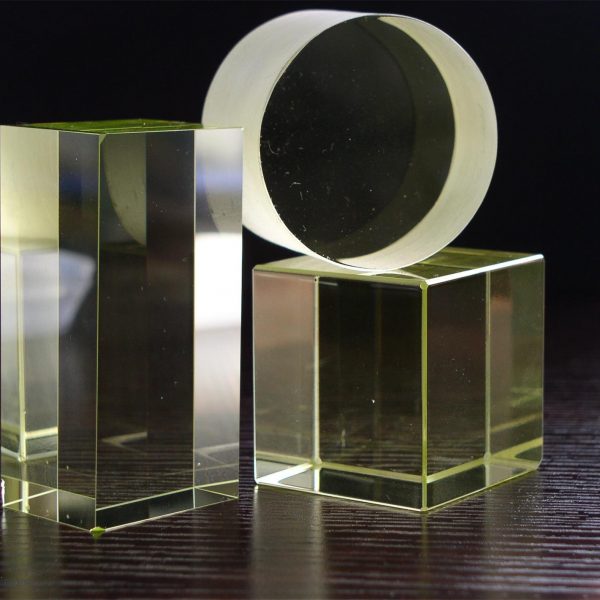

Faraday Rotating Glass – Magneto-optical Glass – Customized Products
Product ID: 6815
$100
Faraday Rotating Glass – Magneto-optical Glass – Customized Products
Faraday rotating glass is a magneto-optical glass with good transmittance in the visible and infrared range (520-1400nm). It can rotate the polarization plane of a beam of polarized light passing parallel to the magnetic field direction and is a glass functional material with a strong Faraday effect. Because of its “non-reciprocity”, it can rotate the polarization plane of both forward- and reverse-incident light of the same wavelength in the same direction by the same angle, regardless of the direction of light beam propagation. This material is widely used to make Faraday rotators based on these properties. TG20 has been widely used in switches, modulators, sensors, and magneto-optical isolators.
Note:
$100 is a deposit, not the final price of the product. Please contact us for price if needed.
FEATURES
Verdet constant high
Good chemical durability
Excellent transparency
Material Specifications
| Diameter Tolerance | < λ/8 @ 633nm |
| Length Tolerance | ±0.05mm |
| Flatness | <λ/8 @ 633nm |
| Surface Finish | 10/5 S/D |
| Parallelism | < 5‘’ |
| Clear Aperture | >90% |
| Chamfer | 0.1mm x 45° |
Physical and Chemical Properties
| Material | TG20 | TG28 |
| Refractive index thermal coefficient（10-7 /℃） | 74 | – |
| Thermal coefficient of optical path（10-7 /℃） | 105 | – |
| Transmission Window（nm） | 520-1400 | 520-1400 |
| Thermal Coefficient of Expansion（10-7 /℃） | 51.3 | 69 |
| Transformation Temperature（℃） | 760 | 759 |
| Sag of temperature（℃） | 800 | 800 |
| Density（g / cm3） | 4.32 | 4.99 |
| Young’s Modulus (GPa） | 108 | |
| Poisson Ratio | 0.22 | |
| Knoop Hardness（Kg/cm2 ） | 760 |
Optical and Spectral Properties
| Material | TG20 | TG28 |
| Refractive Index（1064nm) | 1.6721 | 1.736 |
| Refractive Index（@589.3nm） | 1.6888 | 1.75 |
| Nonlinear refractive index（10-13 e.s.u) | 2.46 | 2.42 |
| Abbe Value | 53.14 | 50.98 |

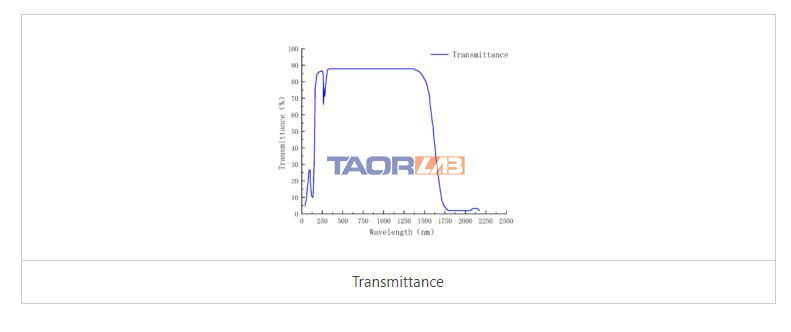

Spectrum
.jpg)
