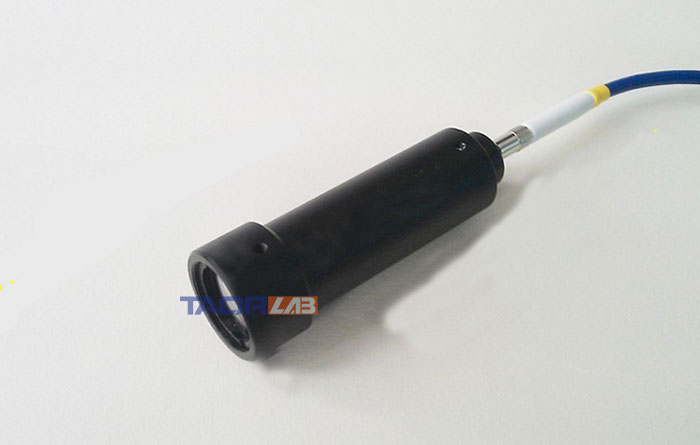

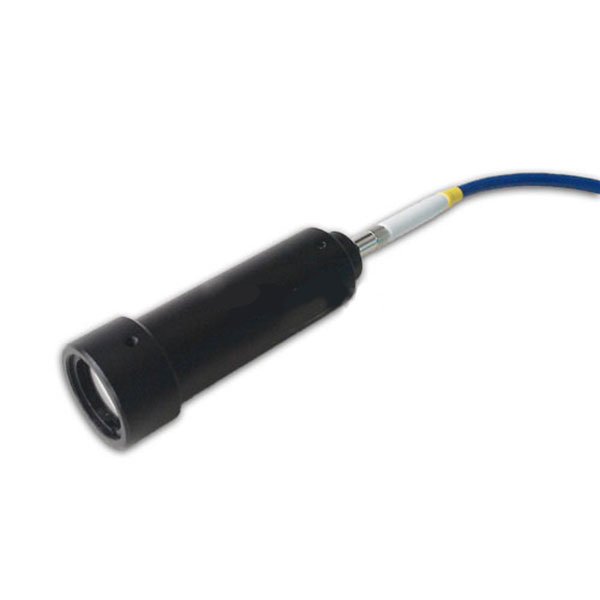

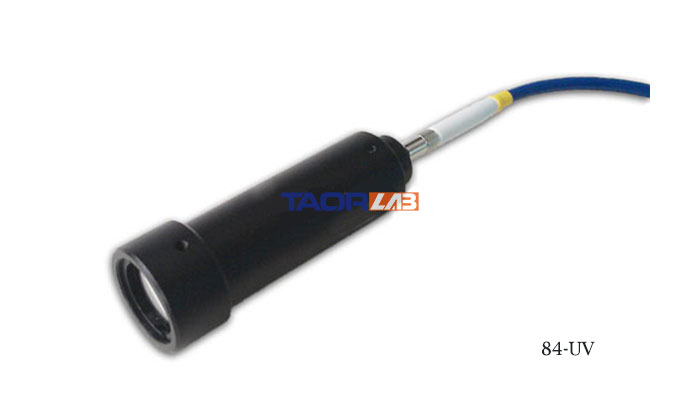

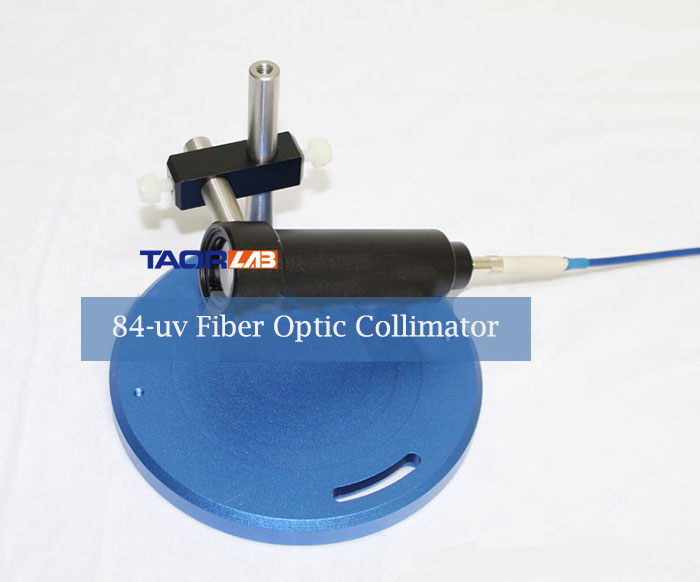

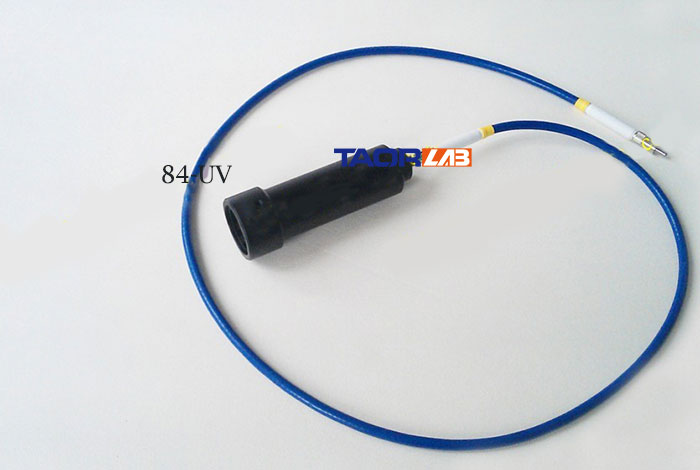

84-UV SMA905 Fiber Collimator Focus Adjustable Lens Φ25.4 mm Coupling Lens

84-UV SMA905 Fiber Collimator Focus Adjustable Lens Φ25.4 mm Coupling Lens

This product can be used for fiber collimation or for coupling focusing. The use of collimation, either single mode or multimode fiber can be used. If used as a coupling focus, it can only be used with multimode fiber (numerical aperture 0.22~0.37NA, core diameter ≥100μm).

[Features]
1. Large lens diameter and long focal length
2. Wavelength: 200nm~2500nm quartz lens
3. After the beam passes through the lens, the divergence angle <2°
4. Easy to use with SMA905 interface

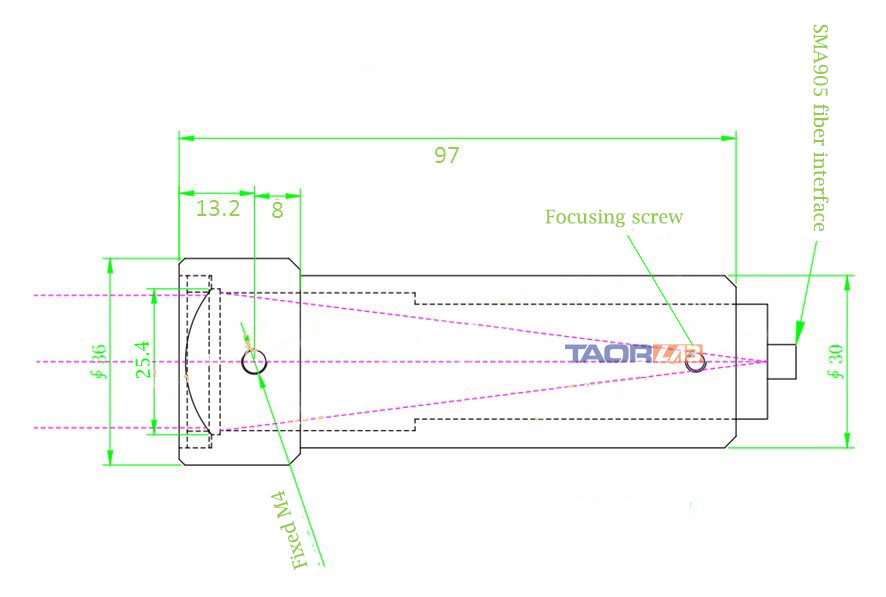

[Specifications]
Product Name: Fiber Collimator
Model: 84-UV
Connector: SMA905
Screw Hole(can be fixed): M4
Lens Diameter: 25.4 mm
Focal Length: 100 mm
Wavelength Range: 200-2500nm
Working Temperature: -20~150 °C
Housing Material: Aluminum, black
