Pockels Cell Drive
Pockels Cell Drive – Electro-optic Product- Customized Products
Product ID: 6772
$100
Pockels Cell Drive – Electro-optic Product – Customized Products
To match the use of a Pockler box, TaorLab offers the following series of Pockler box drivers, high voltage power supplies, modules and signal controllers. Please refer to the product sheet for details.
TL-PCDH Series Pressurized Step-down Crystal Driver
TL-PCDS Series Pressurized Step-down Crystal Driver
TL-PCDH-1M Series Pressurized Step-down Crystal Driver: mainly used in Q switching optical circuit, pulse selection optical circuit, cavity emptying circuit;
TL-PCDX Series Pressurized Step-down Crystal Driver
TL-OEM-HV-80 High Voltage Power Supply
TL-OEM-HV-120 High Voltage Power Supply
TL-PCD-HV High Voltage Power Supply: With the display and regulation of high voltage, high voltage power supply separate switch, at the same time to the box drive power supply;
TL-PACK-PCDH Series All-in-one Crystal Driver Module
TL-SC300 Series Pockels Cells Drive Signal Controller
Note:
$100 is a deposit, not the final price of the product. Please contact us for price if needed.

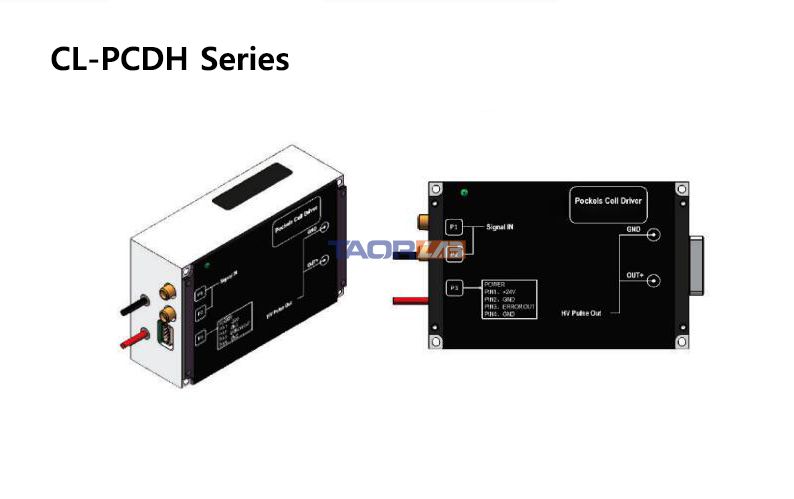

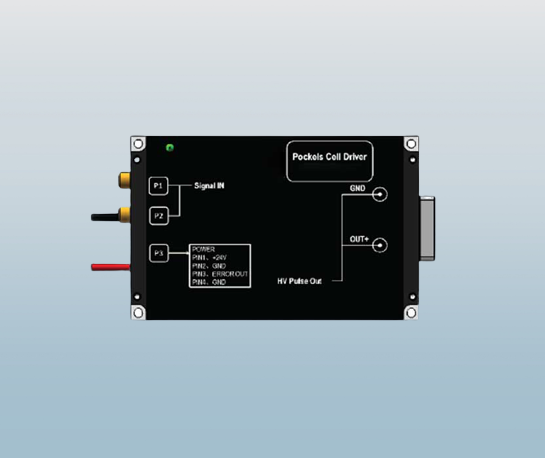

TL-PCDH Series Pressurized Step-down Crystal Driver
| Specification | ||||||
| Series | TL-PCDH series | TL-PCDH-S series | ||||
| Model | TL-PCDH-250-3.6 | TL-PCDH-500-2.6 | TL-PCDH-500-1.8 | TL-PCDH-S-250-3.6 | TL-PCDH-S-500-2.6 | TL-PCDH-S-500-1.8 |
| High voltage maximum rated Voltage | 3.8 kV | 2.8 kV | 2.0 kV | 3.8 kV | 2.8 kV | 2.0 kV |
| High voltage maximum working voltage | 3.6 kV | 2.6 kV | 1.8 kV | 3.6 kV | 2.6 kV | 1.8 kV |
| High voltage maximum repetition rate | 250 kHz | 500kHz | 500kHz | 250 kHz | 500kHz | 500kHz |
| Pulse duration | 100–5000 ns | 15–1250 ns | ||||
| High voltage pulse rise time | <7 ns | <6.5 ns | <6ns | <7 ns | <6.5 ns | <6ns |
| High voltage pulse fall time | <7 ns | <6.5 ns | <6 ns | <7 ns | <6.5 ns | <6ns |
| External trigger signal amplitude | 3.5–5 V (50 Ω load) | 3.5–5 V (50 Ω load) | ||||
| External signal input interface | SMA | SMA | ||||
| High voltage output interface | 7w2 | 7w2 | ||||
| Indicator light | Power indication | Power indication | ||||
| Cooling method | Forced air cooling or water cooling (Water cooling plate accessories available) |
Forced air cooling or water cooling (Water cooling plate accessories available) |
||||
| Volume | 110*70*37 mm（L*W*H） | 110*70*37 mm（L*W*H） | ||||
| High voltage power | <75 W OEM-HV-80 |
<120W OEM-HV-120 |
<120W OEM-HV-120 |
<75 W OEM-HV-80 |
<120W OEM-HV-120 |
<120W OEM-HV-120 |
| Power supply | 24V | 24V | ||||

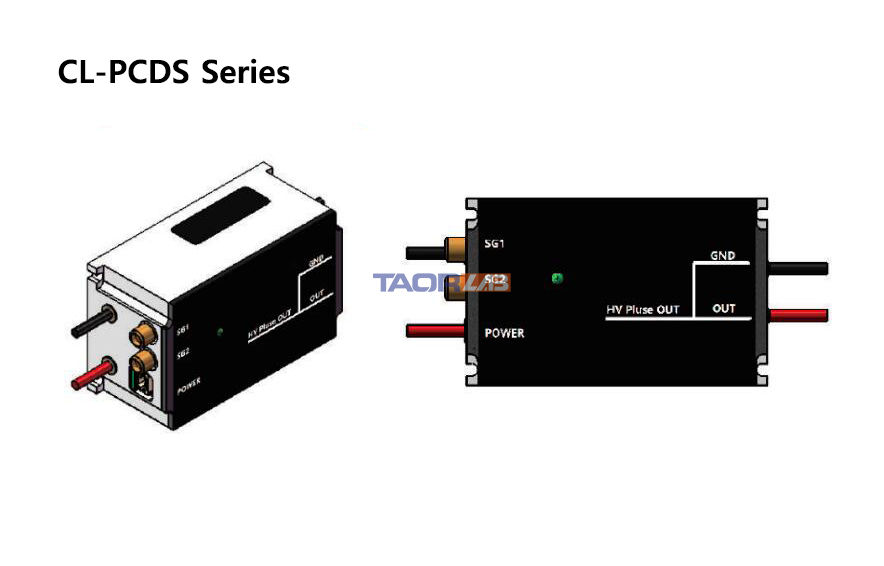

TL-PCDS Series Pressurized Step-down Crystal Driver
| Series | TL-PCDS series | TL-PCDS-S series | ||
| Model | TL-PCDS-200-2.5/ TL-PCDS-500-2.5 |
TL-PCDS-250-1.8/ TL-PCDS-600-1.8 |
TL-PCDS-S-200-2.5/ TL-PCDS-S-500-2.5 |
TL-PCDS-S-250-1.8/ TL-PCDS-S-600-1.8 |
| High voltage maximum rated Voltage | 2.8 kV | 2.0 kV | 2.8 kV | 2.0 kV |
| High voltage maximum working voltage | 2.5 kV | 1.8 kV | 2.5 kV | 1.8 kV |
| High voltage maximum repetition rate | 200 kHz/500 kHz | 250 kHz/600 kHz | 200 kHz/500 kHz | 250 kHz/600 kHz |
| Pulse duration | 100 – 5000 ns | 15 – 1250 ns | ||
| High voltage pulse rise time | <6.5 ns | <6 ns | <6.5 ns | <6 ns |
| High voltage pulse fall time | <6.5 ns | <6 ns | <6.5 ns | <6 ns |
| External trigger signal amplitude | 3.5 – 5 V (50 Ω load) | 3.5 – 5 V (50 Ω load) | ||
| External signal input interface | SMA | SMA | ||
| Indicator light | Power indication | Power indication | ||
| Cooling method | Forced air cooling or water cooling (Water cooling plate accessories available) |
Forced air cooling or water cooling (Water cooling plate accessories available) |
||
| Volume | 78*48*35 mm（L*W*H） | 78*48*35 mm（L*W*H） | ||
| High voltage power | 200kHz: OEM-HV-80 500kHz: OEM-HV-120 |
250kHz: OEM-HV-80 600kHz: OEM-HV-120 |
200kHz: OEM-HV-80 500kHz: OEM-HV-120 |
250kHz: OEM-HV-80 600kHz: OEM-HV-120 |
| Power supply | DC24V | DC24V | ||
TL-PCDH-1M Series Pressurized Step-down Crystal Driver
| Specifications | |
| Series | TL-PCDH-1M series |
| Model | TL-PCDH-1M-2.9 |
| High voltage maximum rated voltage | 2.9 kV |
| High voltage maximum working voltage | 2.7 kV |
| High voltage maximum repetition rate | 1000 kHz |
| Pulse duration | 100 – 5000 ns |
| High voltage pulse rise time | <7 ns |
| High voltage pulse fall time | <7 ns |
| External trigger signal amplitude | 3.5–5 V (50 Ω load) |
| External signal input interface | SMA |
| Indicator light | Power indication |
| Cooling method | Water cooling |
| Volume | 135*68*45 mm（L*W*H） |
| High voltage power | OEM-HV-120 |
| Power supply | DC24V |
TL-PCDX Series Pressurized Step-down Crystal Driver
| Specification | |
| Model | TL-PCDX-10-7.5 |
| High voltage Maximum working voltage | 7.5 kV |
| High voltage maximum repetition frequency | 4 kHz |
| Pulse duration | 100 – 5000 ns |
| High voltage pulse rise time | <12 ns |
| High voltage pulse drop time | <12ns |
| External trigger signal amplitude | 3.5 – 5 V (50 Ω load) |
| External signal input interface | SMA |
| High voltage output interface | 7w2 |
| Indicator light | Power Light on/off |
| Type of cooling | water-cooling |
| Volume（L*W*H） | 165*65*45 mm |
| High voltage power | <200W |
| Power supply | 24V |
TL-OEM-HV-80 High Voltage Power Supply
| Specification | |
| Model | TL-OEM-HV-80/TL-OEM-HV-80-RS |
| Maximum output voltage option | 4.0 Kv |
| Output voltage range | 1.5kv~4.0kv (Different drivers choose different ranges of high voltage) |
| Function | Power supply enable control, high voltage test voltage output, RS232 control (RS version) |
| Maximum output power | 80 W |
| Power input | 24 V DC, <90 W |
| Size (L × W × H) | 170 × 70 × 40 mm |
| Mounting dimension | 160 × 60mm or 160 × 80mm |
TL-OEM-HV-120 High Voltage Power Supply
| Specification | |
| Model | TL-OEM-HV-120/TL-OEM-HV-120-RS |
| Maximum output voltage option | 4.0 kv |
| Output voltage range | 1.5kv~4.0kv(Different drivers choose different ranges of high voltages) ±1.4 kv~±2.0kv(Different drivers choose different ranges of high voltages) |
| Function | Power supply enable control, high voltage test voltage output, power supply overtemperature protection indicator, RS232 control (RS version) |
| Maximum output power | 120 W |
| Power input | 24 V DC, <140 W |
| Size (L × W × H) | 170 × 130 × 40 mm |
| Installation dimension | 160 × 120mm or 160 × 100mm |
TL-PCD-HV High Voltage Power Supply
| Specification | ||
| Model | TL-PCD-HV-80 | TL-PCD-HV-120 |
| Maximum output voltage option | 4.0 Kv | 4.0 kv |
| Output voltage range | 1.5kv~4.0kv(Different drivers choose different ranges of high voltages) | 1.5kv~4.0kv (Different drivers choose different ranges of high voltages) ±1.4 kv~±2.0kv (Different drivers choose different ranges of high voltages) |
| Function | Power enable control, high-voltage display, high-voltage control knob, Pucker box drive power supply | |
| Maximum output power | 80W | 120 W |
| Power input | AC 200V | |
| Size(L × W × H) | 285× 220 × 88 mm | |
TL-PACK-PCDH Series All-in-one Crystal Driver Module
| Specification | |
| Series | TL-PACK-PCDH-S series |
| Model | TL-PACK-PCDH-S -250-3.8 |
| High voltage Maximum rated voltage | 3.8 kV |
| High voltage Maximum working voltage | 3.6 kV |
| High voltage maximum repetition frequency | 250 kHz |
| Pulse duration | 15– 1250 ns |
| High voltage pulse rise time | <7.5 ns |
| High voltage pulse drop time | <7.5 ns |
| External trigger signal amplitude | 3.5 – 5 V (50 Ω load) |
| External trigger signal amplitude | SMA |
| Type of cooling | Water-cooling |
| Volume | 310*123*66.5 mm（L*W*H） |
| High voltage power | <75 W |
| Power supply | 24V |
| Function | High voltage display, high voltage regulation, power indicator |

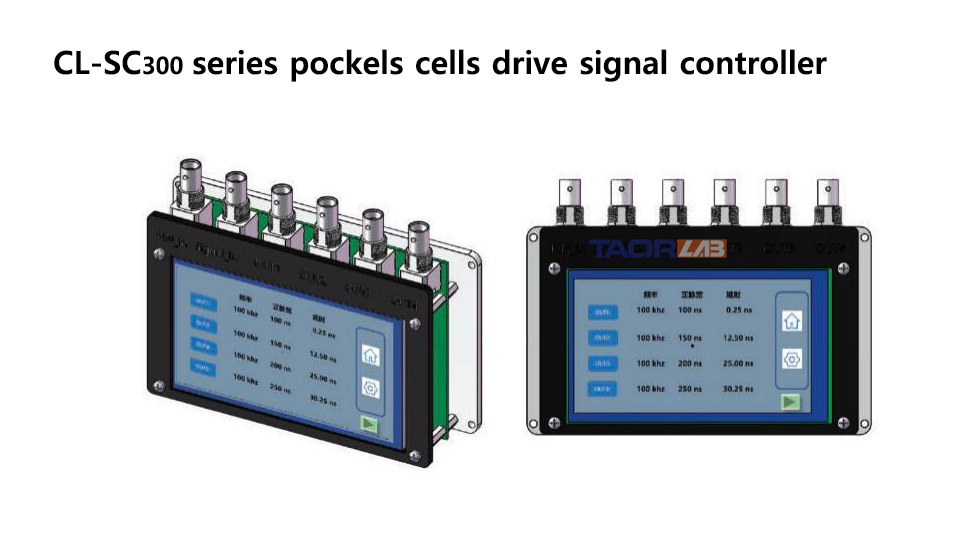

TL-SC300 Series Pockels Cells Drive Signal Controller
| Model | TL-SC300-BNC | TL-SC300-SMA |
| Output interface | BNC | SMA |
| Output maximum frequency | 1.0MHz | |
| Signal jitter | 100ps RMS | |
| Positive pulse width range | 2ns ~ 100ms | |
| Delay range | 0ns ~20us | |
| Delay accuracy | 250ps | |
| Output level | >3.5V（50Ω） | |
| Input signal trigger mode | Rising edge trigger | |
| Maximum input frequency | 100MHz | |
| PIN input minimum level | >50mv（50Ω） | |
| Signal input level | >2.5V（50Ω） | |
| Input/ output interface | BNC | |
| Communication interface | USB and RS232 are supported | |
| Volume | 96*160*41 mm（L*W*H） | |
| Power supply | DC:9~36V | |
