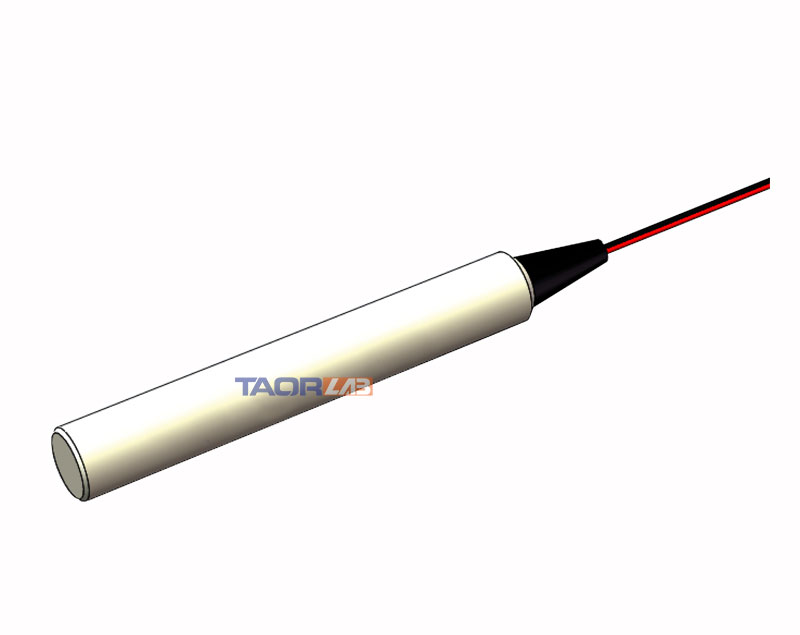

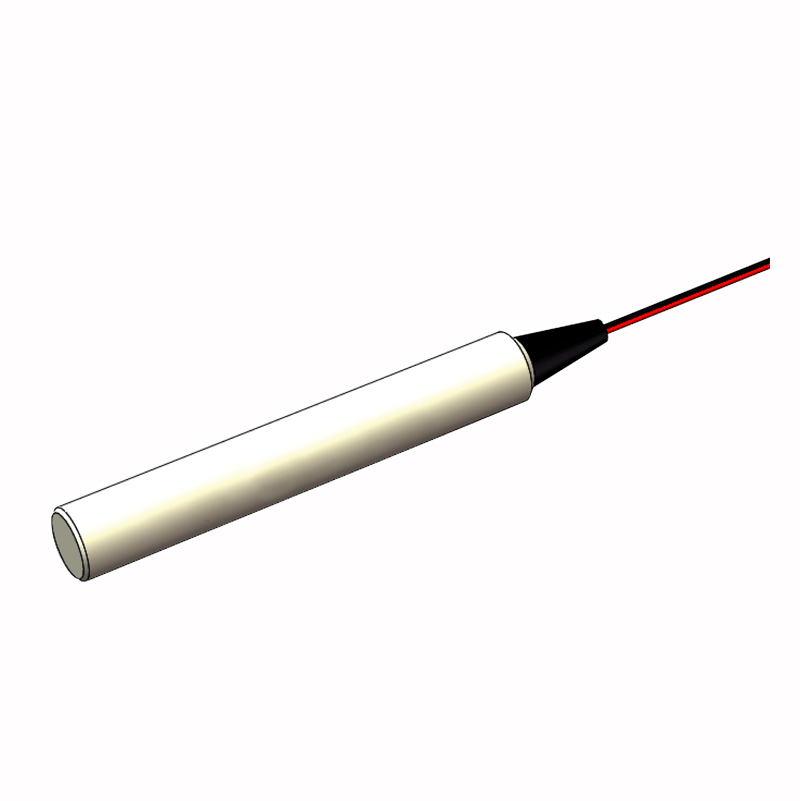

Custom Optical Fiber Reflector 1310nm 1550nm Customizable

Product ID: 6285

Add to wishlist
Compare

$100

Custom Optical Fiber Reflector 1310nm 1550nm Customizable

Fiber optic reflectors are widely used in fiber amplifiers, sensing systems, communication networks, CATV networks, local area network systems, and so on. It has the characteristics of low insertion loss, high isolation, and strong film strength, and adopts a glue-free optical path design.

[Features]
High isolation;
Low insertion loss;
Optical path without glue;
Low polarization sensitivity;
Low profile packaging.

[Applications]
optical fiber amplifier
Sensing system
Telecommunications network
CATV network
Local area network

[Specification]

Parameter Unit Value
Center Wavelength nm 1310 or 1550
Bandwidth nm ±40
Typical Insertion Loss(at 23℃) dB ≤0.4
Maximum Insertion Loss(at 23℃) dB ≤0.6
Maximum Polarization Dependent Loss(at 23℃) dB ≤0.1
Maximum Polarization Mode Dispersion ps ≤0.2
Maximum Wavelength Dependent Loss dB ≤0.35
Maximum Temperature Dependent Loss dB ≤0.3
Fiber Type Single mode
Maximum Carrying Power dBm ≤27
Operating Temperature ℃ -20~70
Storage Temperature ℃ -40~85
Operating Relative Humidity %RH ≤90
Storage Relative Humidity %RH ≤90
Package Size mm Φ5.5*L32

*The parameter does not include the loss of the optical fiber connector.

Note:
(1) $100 is the product deposit, not the final product price.
(2) The minimum order quantity is 5pcs;
(3) The customizable parameters are as follows:

Parameter Customizable Options
Working Wavelength(nm) 1310nm, 1550nm
Package Type(mm) 5.5*32, 5.5*35, 5.5*50
Pigtailed Type 250μm bare fiber, 0.9mm/2.0mm/3.0mm loose tube, 0.9mm/2.0mm/3.0mm tight tube
Fiber Length(m) 0.5, 1, 1.5, 2, 2.5, 3
Connector None, SC/UPC, SC/CAPC, FC/UPC, FC/APC, LC/UPC, LC/APC
