980nm 1×2/2×2 Single-axis Working Polarization Maintaining PM Fiber Coupler

Product ID: 7275


$100

980nm 1×2/2×2 Single-axis Working Polarization Maintaining PM Fiber Coupler

The crystal structure polarization-maintaining fiber coupler (PM crystals Coupler) produced by TaorLab can achieve single-axis operation (slow-axis operation, fast-axis cut-off, or fast-axis work and slow-axis cut-off); by adjusting the crystal optical path, it can achieve 0.1-55 % splitting, it can produce couplers with various wavelengths and different splitting ratios in the range of 780-2050nm, which are widely used in optical fiber communications, fiber lasers, fiber amplifiers and other fields.

Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.

Specifications

Parameter Unit Value
1×2 (2×2)
Working wavelength nm 980
Bandwand nm ±30
Split ratio 01/99~50/50
Additional loss(max) dB
0.8@1X2,1.2@2X2
Extinction Ratio(min) dB 22@1X2,20@2X2
Return loss dB 50
Fiber type PM780-HP
Power W 0.3~20 optional
Working axis
Single-axis work (slow-axis work, fast-axis cut-off; or fast-axis work, slow-axis cut-off)
Connector FC/APC or other
Fiber length m 1
Package size mm φ5.5XL35
Operating temperature -5~+70
Storage temperature -40~+85

*The temperature measurement environment is 25℃;
*The above data does not include connectors. If a connector is added, the insertion loss increases by 0.3dB, the return loss decreases by 5dB, the extinction ratio decreases by 2dB, and the slow axis of the optical fiber is aligned with the Key key by default.

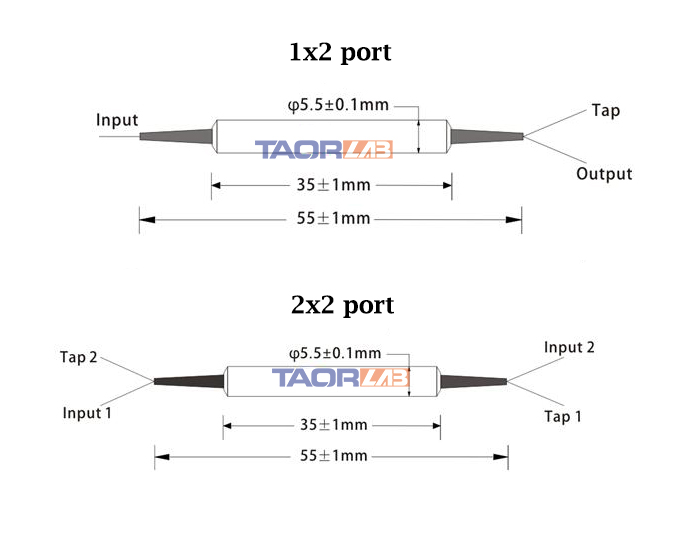

Package Dimensions


TaorLab fiber coupler



Model Information

TLPMTC
Port Working wavelength Split ratio Power Working axis Fiber type Pigtail length Tail boot type Connector type
12=1×2
22=2×2
980=980nm
50=50/50
10=10/90
01=1/99
S=Other
00=300mW
01=1W
05=5W
10=10W
S=Other
S=Slow axis working, fast axis cut off
F=Fast axis works, slow axis cuts off
P9=PM980
08=0.8m
10=1.0m
15=1.5m
S=other
B=250um bare fiber
L=900um loose tube
S=other
N=None
FP=FC/PC
FA=FC/APC
S=other

*Model Reference: TLPMTC-12-980-50-00-S-P9-10-L-FA
Crystal structure polarization-maintaining fiber coupler, 1X2 structure, center wavelength is 980nm, splitting ratio 50:50, continuous optical power is 300 mW, slow axis operation, fast axis cutoff, fiber type PM980, pigtail length 1 meter, 900um loose Bushing, connector type FC/APC, slow axis alignment key.
