Faraday Mirror
Fiber Optic Faraday Mirror Faraday Mirror (FM) with Fiber Pigtails
Product ID: 6934
$100
Fiber Optic Faraday Mirror Faraday Mirror (FM) with Fiber Pigtails
| Features |  |
| Low Insertion Loss Compact Size, Environmental Stability |
|
| Application | |
| EDFA, DWDM System, Fiber Instruments, Fiber Sensor |
Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.
Specifications
| Parameter | Values | |
| Operating wavelength (nm) | 1310, 1450, 1480, 1550 | 1064 |
| Operating bandwidth (nm) | ±15 | ±5 |
| Insertion loss (dB) | ≤0.6(45deg.), ≤0.7(90deg.) | ≤3.0( 45deg.), ≤5.0( 90deg.) |
| Faraday Rotation Angle(single pass) (Deg) | 45 or 90 | 45 or 90 |
| Maximum Rotation angle tolerance over wavelength range at 23℃) (Deg) | ±1 | ±3 ( 45deg.) ，±4( 90deg.) |
| PDL (dB) | ≤0.05 | ≤0.10 |
| Power handling (mW) | ≤500 | ≤150 |
| Fiber Type | SMF-28e | HI1060 |
| Operating temperature(℃) | -5 ~ +70 | -5 ~ +50 |
| Storage temperature(℃) | -40~ +85 | |
| Package dimensions(mm) | Ф5.5×L35(P1) ; Ф4.5×L25(P3) | |
*Above specifications are for devices without the connectors.
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower

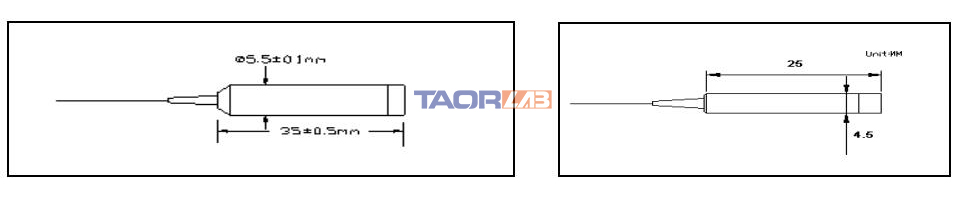

Package Dimensions
Ordering Information
| FM | Wavelength | 000 | Faraday Rotation Angle | Package | Pigtail Type | Length | Connector |
| FM | 1310=1310nm 1450=1450nm 1480=1480nm 1550=1550nm 1064=1064nm |
0000 | 1=45deg 2=90deg |
1=5.5*35mm 3=4.5*25mm |
1=250um bare fiber 2=900um loose tube 3=3mm loose tube 4=2mm loose tube |
H=0.5m 8=0.8m 1=1.0m 5=1.5m 2=2.0m 3=3.0m 4=4.0m A=2.5m B=5.0m |
0=None 1=FC/UPC 2=FC/APC 3=LC/UPC 4=LC/APC 5=SC/APC 6=SC/UPC |
