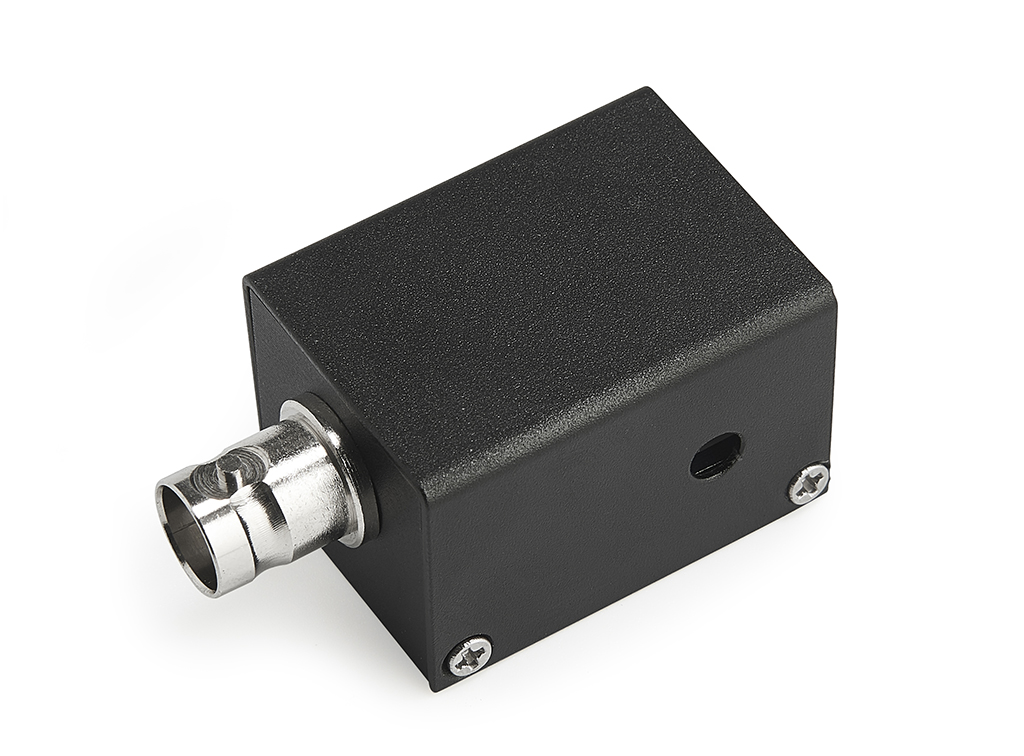

633nm 100MHz 800mW Audio Acousto-Optic Modulator Customized

Product ID: 5821


Input the audio signal (from radio, tape recorder, CD player, etc.) to the driver, and adjust the carrier amplitude and demodulation amplitude appropriately to make the speaker play the audio program.

$100

633nm 100MHz 800mW Audio Acousto-Optic Modulator Customized

Input the audio signal (from radio, tape recorder, CD player, etc.) to the driver, and adjust the carrier amplitude and demodulation amplitude appropriately to make the speaker play the audio program.

[Applications]
Audio signal switch
Teaching demonstration instrument

Note:
(1) This is the deposit, not the final product price.
For the actual product price, please contact us, different specifications have different prices.
(2) Lead Time: 3~4 weeks

[Specifications]

Parameter Unit Min Max Typ. Remarks
Material TeO²
Wavelength nm 583 683 633
Average Optical Power Density W 20
Ultrasonic Velocity m/s 4200
Diffraction Efficiency % 90 85
Center Frequency MHz 100
Clear Aperture (L*W) mm 2*1 2*3 2*1 Customized
Diffraction series ±5
RF Power W 0.8
Rising Time ns 200
Voltage Standing Wave Ratio 1.2:1
Input Resistance Ω 50
Deflection Angle mrad 15
Device Interface SMA / BNC
Operating Temperature -10~+60
Storage Temperature -30~+70

Acousto-Optic Modulators AOM
