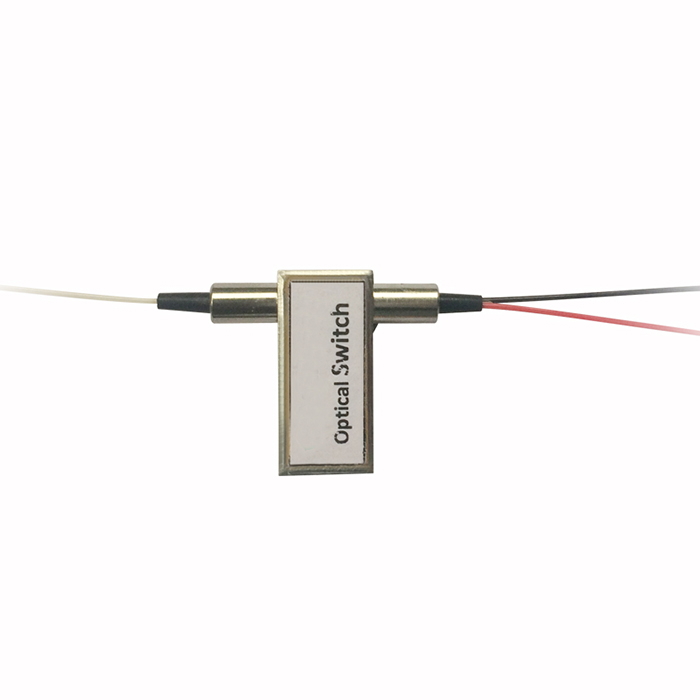

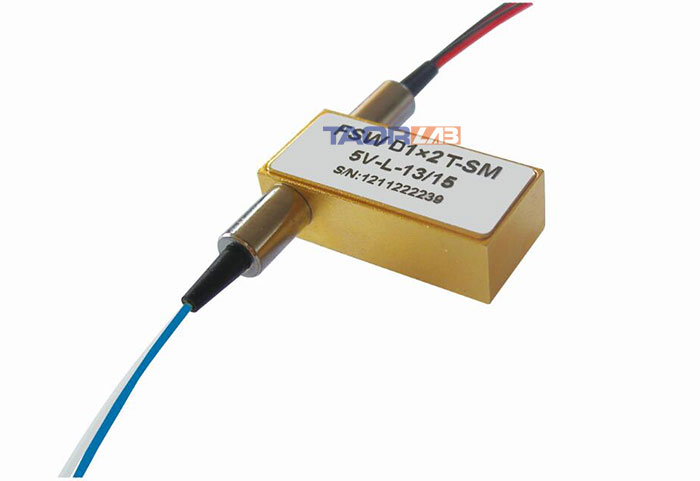

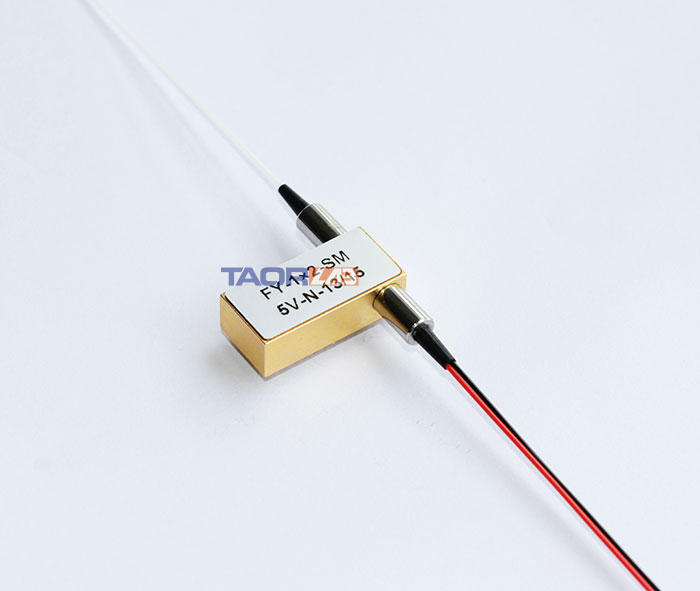

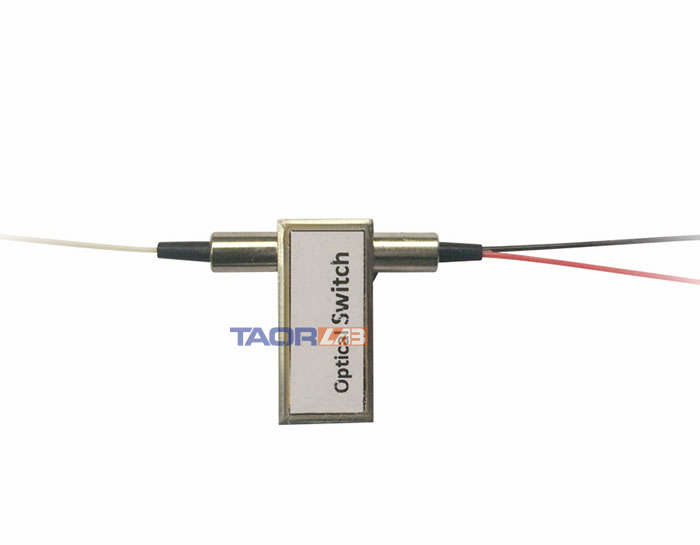

Custom Optical Switching 1260nm~1650nm Wavelength Can Be Customized

Product ID: 6283

Add to wishlist
Compare

$100

Custom Optical Switching 1260nm~1650nm Wavelength Can Be Customized

The optical switch package has the characteristics of fast speed and low loss, and the operating temperature range is -40～85℃.

[Features]
Low cost;
Low insertion loss;
High channel isolation;
High stability and high reliability;
Optical path without glue design;
Locked and non-locked two types.

[Applications]
Optical Network
Protection and storage
Optical signal routing upload and download transmission and reception protection
Network test system

[Specification]

Configuration Unit 1×2 2×2
Center Wavelength nm 1260~1620
Working Wavelength Range nm 1310/1490/1550
Typical Insertion Loss dB ≤0.6 ≤1
Maximum Insertion Loss dB ≤0.8 ≤1.5
Polarization Dependent Loss dB ≤0.05
Operating Voltage V 5.0±0.5
Switching Time ms ≤8 ≤8
Repeatability dB ±0.02
Return Loss dB ≥50
Carrying Power mW ≤500
Fiber Type Single mode
Operating Temperature ℃ -40 to 85
Storage Temperature ℃ -40 to 85
Package Size mm 27*12*8.2

*The parameter does not include the loss of the optical fiber connector.

Note:
(1) $100 is the product deposit, not the final product price.
(2) The minimum order quantity is 5pcs;
(3) The customizable parameters are as follows:

Parameter Customizable Options
Configuration 1×1, 1×2, 2×2,…
Working Wavelength(nm) 1260, 1270 … 1640, 1650
Fiber Type SM, MM
Package Type(mm) 27*12*8.2 (L*W*H)
Pigtailed Type 250μm bare fiber, 0.9mm/2.0mm/3.0mm loose tube, 0.9mm/2.0mm/3.0mm tight tube
Fiber Length(m) 0.5, 1, 1.5, 2, 2.5, 3
Connector None, SC/UPC, SC/CAPC, FC/UPC, FC/APC, LC/UPC, LC/APC, ST/UPC, ST/CAPC
