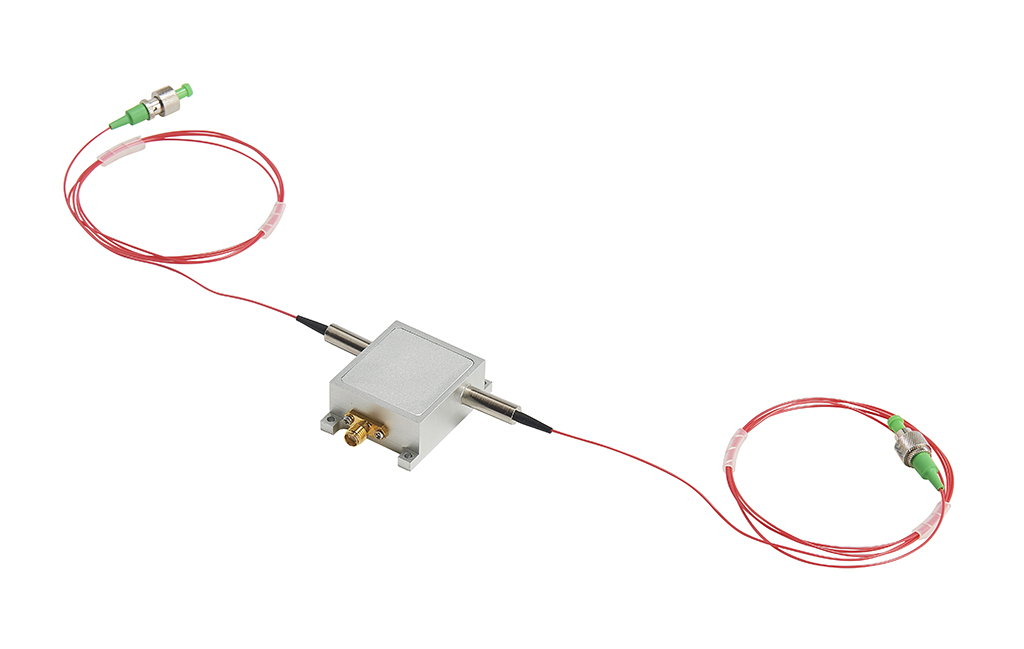

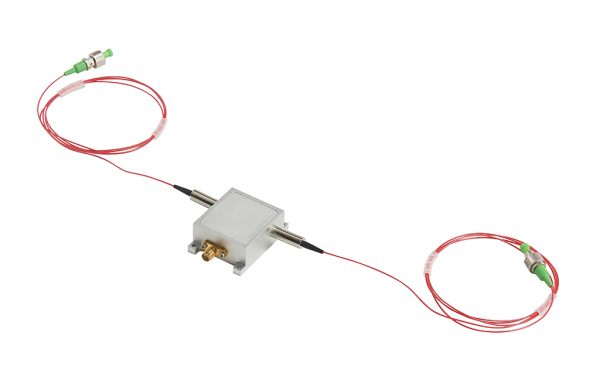

1064nm High Frequency 200MHz Fiber Coupled Acousto-Optic Modulator

1064nm High Frequency 200MHz Fiber Coupled Acousto-Optic Modulator

[Features]
Low insertion loss
Compact structure
Stable performance

[Applications]
Optical switch
Laser wavelength shift
Menu and frequency reduction in ultrafast laser system

Note:
(1) This is the deposit, not the final product price.
For the actual product price, please contact us, different specifications have different prices.
(2) Lead Time: 3~4 weeks
(3) Regular product price reference (the actual price needs to be determined according to the customized demand)
e.g.
(a) AOM 1064nm 100M, $1174/pcs
(b) AOM 1064nm 200M, $1409/pcs
(c) AOM Driver, $469/pcs

[Specifications]

Parameter	Unit	Min	Max	Typ.	Remarks
Material	–			TeO²
Wavelength	nm	1030	1090	1064
Average Optical Power	W		0.5		Can be customized 5W
Peak (Pulse) Optical Power	kW		0.5
Ultrasonic Velocity	m/s			4200
Insertion Loss			2.5	2.5
Extinction Ratio	dB	45
Polarization Extinction Ratio	dB	18	25	20
Return Loss	dB	40
Rising/Falling Time	ns	8	10	10
Frequency	MHz			200
Frequency Shift	MHz			±200	Optional
RF Power	W			2.5
Voltage Standing Wave Ratio	–			1.5:1
Input Resistance	Ω			50
Device Interface	–			SMA
Fiber Type	–	PM: PM980 / SM: HI1060			Customizable
Fiber Length	m			1
Fiber Interface	–			FC/APC
Operating Temperature	℃			-20~+60
Storage Temperature	℃			-30~+70
