Isolated Polarization Splitter/Combiner
Isolator Polarization Beam Combiner/Splitter IPBC IPBS Optical Components
Product ID: 6897
$100

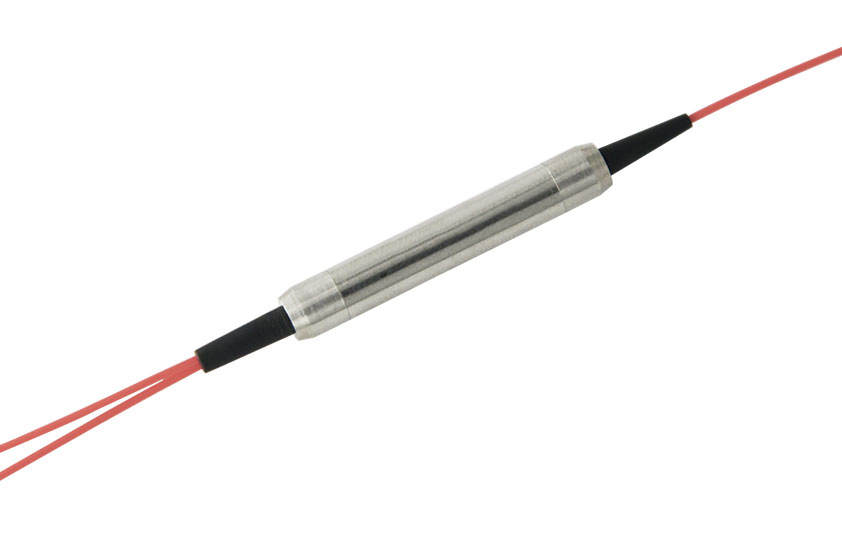

Isolator Polarization Beam Combiner/Splitter IPBC IPBS Optical Components
| Features |  |
| Low Insertion Loss High Extinction Ratio High Stability and Reliability |
|
| Application | |
| Amplifier Fiber Sensor Coherent Telecommunication Systems Polarization Mode Dispersion Compensator |
Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.
Specifications
| Parameter | Values | |||||
| Isolator Stage | Single Stage | Dual Stage | ||||
| Center Wavelength (nm) | 1310,1480,1550 | 1064 | 1310,1480,1550 | |||
| Operating Wavelength Range (nm) | ±20 | ±5 | ±20 | |||
| Typ. Insertion Loss (dB) | 0.45 | 1.8 | 0.55 | |||
| Insertion Loss (dB) | ≤0.7 | ≤2.1 | ≤0.8 | |||
| Typ. Isolation (dB) | 35 | 35 | 55 | |||
| Isolation @23℃ (dB) | ≥20 | ≥25 | ≥40 | |||
| Extinction Ratio (dB) (Only for PBS) | ≥20 | |||||
| Directivity (dB) | ≥50 | |||||
| Return Loss (dB) | ≥50 | |||||
| Power Handling (mW) | ≤500 | ≤300 | ≤500 | |||
|
Fiber Type |
Port 1 & 2 | PM Panda Fiber | PM Panda Fiber | PM Panda Fiber | ||
| Port 3 | SMF-28e or PM Panda Fiber | HI 1060 or PM Panda Fiber | SMF-28e or PM Panda Fiber | |||
| Operating Temperature (°C) | -5 ~ +70 | -5 ~ +50 | -5 ~ +70 | |||
| Storage Temperature (°C) | -40 ~ +80 | |||||
| Dimensions (mm) | φ5.5 × L35(P1) (only for bare fiber or 900um loose tube) | |||||
| L90*W20*H9.5（ABS）(P2) (only for 3mm or 2mm cable) | ||||||
*Above specifications are for device without connector.
*For devices with connector,IL will be 0.3dB higher,ER will be 2dB lower and RL will be 5dB lower.
*The PM fiber and the connector key are aligned to the slow axis.

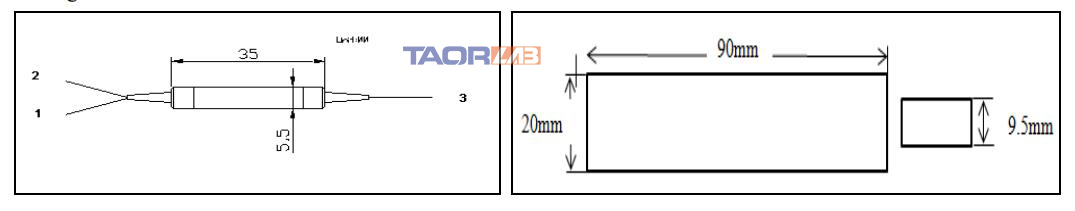

Package Dimensions
Ordering Information
| IPBS IPBC | Wavelength | Isolator type | 0 | Fiber for Port 3 | Package Dimensions | Pigtail Type | Length | Connector |
| 1064=1064nm 1310=1310nm 1480=1480nm 1550=1550nm |
S=Single stage D=Dual stage |
1=SMF-28e 2=PM Fiber, Slow Axis Align to Port 1 3=PM Fiber, Slow Axis Align 45° to Port |
1=P1(φ5.5*L35) 2=P2(L90*W20*H9.5) |
1=250um bare fiber 2=900um loose tube 3=3mm loose tube 4=2mm loose tube |
H=0.5m 8=0.8m 1=1.0m 5=1.5m 2=2.0m 3=3.0m 4=4.0m A=2.5m B=5.0m |
0=None 1=FC/UPC 2=FC/APC 3=LC/UPC 4=LC/APC 5=SC/APC 6=SC/UPC |
