Fiber Patchcord Fiber Optic Cable with Singlemode Fiber Customized Product

Product ID: 6945

Add to wishlist
Compare

$100

Fiber Patchcord Fiber Optic Cable with Singlemode Fiber Customized Product

Features
Low Insertion Loss

High Return Loss & High Repeatability
Application
LAN

Data network

CATV Network Telecommunication

Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.

Specifications

Parameter

Value
Connector Type

FC,SC,ST, LC, MU etc
Operating wavelength (nm)

1310 or 1550

 980 or 1060

780 or 850
Fiber Type

SMF-28e

 HI1060 or HI1060Flex

HI780
Insertion loss (dB)

≤0.25

 ≤0.4

≤0.8


Return loss (dB)

 UPC

≥50

 ≥50

≥50
APC

≥60

 ≥60

≥60
Repeatability (dB)

≤0.1

 /

/
Changeability (dB)

≤0.2

 /

/
Durability

≥1000
Max.Optical Power(mW)

500
Operating temperature (℃)

-5 ~ + 75
Storage Temperature (℃))

-40 ~ + 85

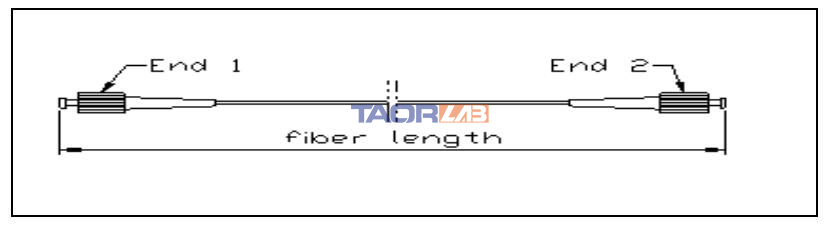

Package Dimensions


fiber patchcord

Ordering Information

JP Wavelength 0000 Fiber Type Pigtail Type Length Connector 1 Connector 2
JP 0780=780nm
0850=850nm
0980=980nm
1064=1064nm
1310=1310nm
1550=1550nm		 0000 1=SMF-28e
4=HI1060 Flex
5=HI1060
6=HI780		 1=250um bare fiber
2=900um loose tube
3=3mm loose tube
4=2mm loose tube		 H=0.5m
8=0.8m
1=1.0m
5=1.5m
2=2.0m
3=3.0m
4=4.0m
A=2.5m
B=5.0m		 0=None
1=FC/UPC
2=FC/APC
3=LC/UPC
4=LC/APC
5=SC/APC
6=SC/UPC		 0=None
1=FC/UPC
2=FC/APC
3=LC/UPC
4=LC/APC
5=SC/APC
6=SC/UPC
