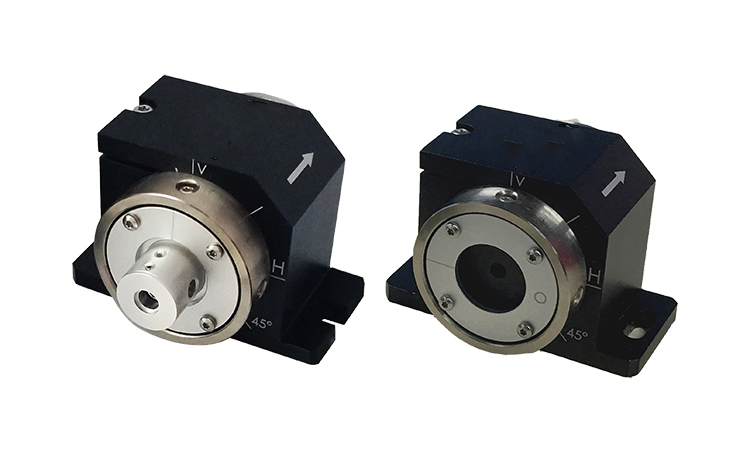

Faraday Rotator – Magneto-optic Products – Customized Products
Faraday rotator is a kind of magneto-optical device based on the Faraday magneto-optical effect. When the beam enters forward, the Faraday rotator rotates the linearly polarized light θ， After this beam of light is reflected into the Faraday rotator, the polarization direction of the light is rotated again, and the rotation direction is the same as that of the light entering in the forward direction. At this time, the polarization direction of the outgoing light is rotated by 2 relative to the incident light θ，This can effectively reduce the interference effect between incident light and reflected light, to reduce the impact on the system. Faraday rotators are widely used in various laser systems, such as erbium-doped fiber amplifiers, optical switches, optical modulators, etc., which can effectively avoid optical damage or system instability caused by harmful reflected light.
Note:
$100 is a deposit, not the final price of the product. Please contact us for price if needed.
FEATURES
High isolation
Low insertion loss
Multiple transparent holes
Multi-wavelength available
Controllable output polarization
Faraday Rotator Product Parameters

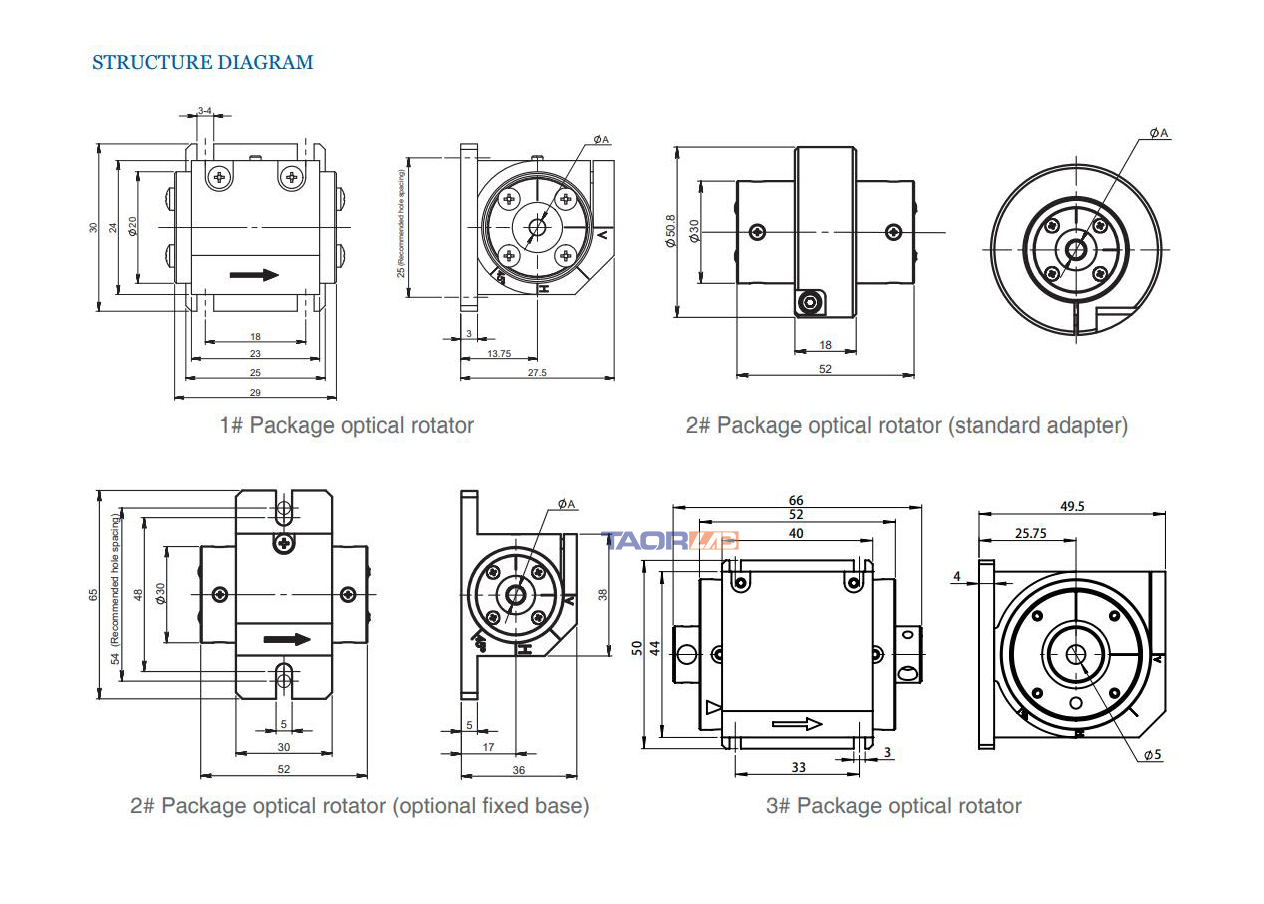

| Model | Central Wavelength | Clear Aperture | Extinction ratio @25℃ | Transmittance @25℃ | Rotation angle @25℃ | Damage Threshold @10ns | Assembly |
| TL-ROT-532-5 | 532nm | 5mm | ＞30dB | ＞95% | 45°±1° | 3.5J/cm2 | 2# |
| TL-ROT-633-2.5 | 633nm | 2.5mm | ＞30dB | ＞95% | 45°±1° | 3.5J/cm2 | 1# |
| TL-ROT-633-5 | 5mm | ＞30dB | ＞95% | 45°±1° | 3.5J/cm2 | 2# | |
| TL-ROT-780-2.5 | 780nm | 2.5mm | ＞30dB | ＞95% | 45°±1° | 3.5J/cm2 | 1# |
| TL-ROT-780-5 | 5mm | ＞30dB | ＞95% | 45°±1° | 3.5J/cm2 | 2# | |
| TL-ROT-785-2.5 | 785nm | 2.5mm | ＞30dB | ＞95% | 45°±1° | 3.5J/cm2 | 1# |
| TL-ROT-785-5 | 5mm | ＞30dB | ＞95% | 45°±1° | 3.5J/cm2 | 2# | |
| CL- ROT-1030-2.5 | 1030nm | 2.5mm | ＞30dB | ＞95% | 45°±1° | 5J/cm2 | 3# |
| TL-ROT-1030-5 | 5mm | ＞30dB | ＞95% | 45°±1° | 5J/cm2 | 3# | |
| TL-ROT-1064-2.5 | 1064nm | 2.5mm | ＞30dB | ＞95% | 45°±1° | 5J/cm2 | 3# |
| TL-ROT-1064-5 | 5mm | ＞30dB | ＞95% | 45°±1° | 5J/cm2 | 3# |
