AgGaGeS4 (Silver Germanium Gallium Sulfide) – Nonlinear Crystal – Customized Products

AgGaGeS4 (Silver Germanium Gallium Sulfide) – Nonlinear Crystal – Customized Products

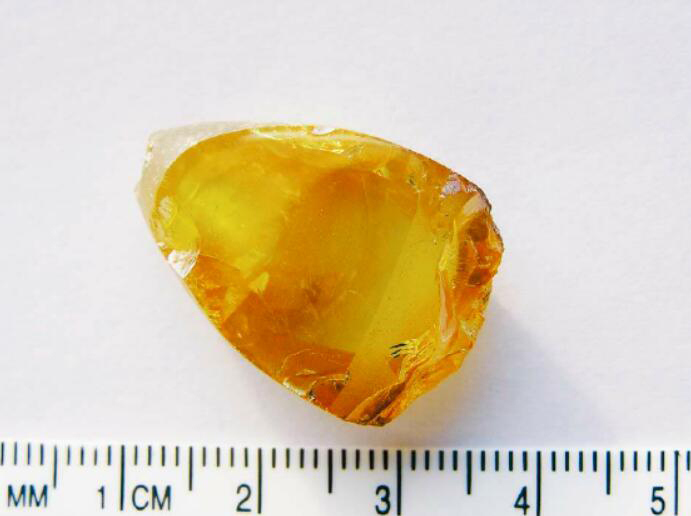

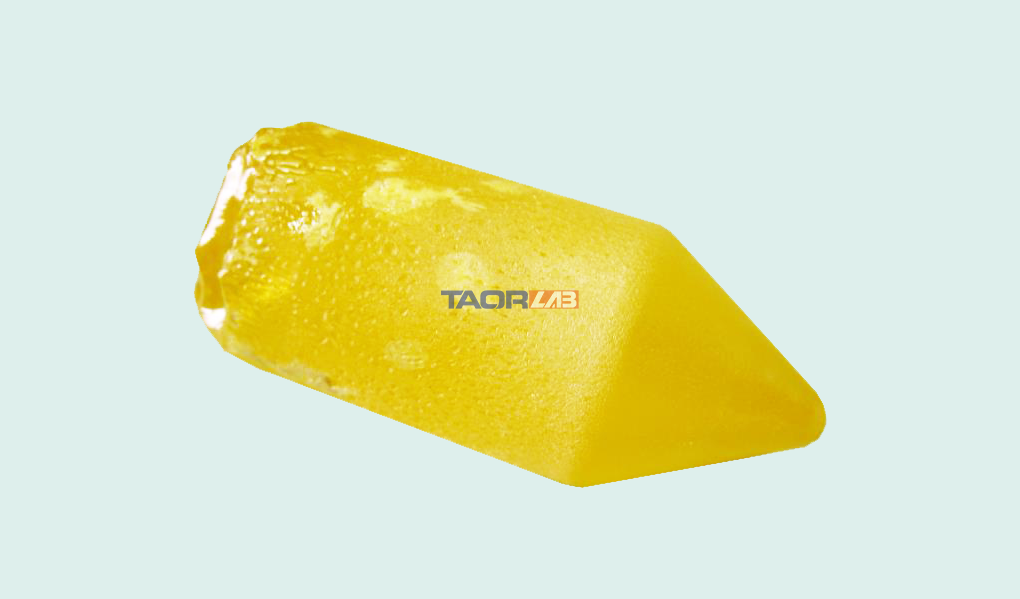

AgGaGeS4 (Silver Germanium Gallium Sulfide) is a negative biaxial crystal with an orthogonal crystal system and a larger nonlinear coefficient than AgGaS. Compared with conventional materials, AgGaGeS4 has a wide transmission band (0.5~11.5 μm), a small absorption coefficient (α<0.005 cm–1), and a high threshold of laser damage resistance (30 ns, 9.55 μm, 230 MW/cm2), which is about 1.6 times that of AgGaS2(149 MW/cm2), ZnGeP2 (142 MW/cm2) 1.6 times, suitable for titanium gem 800 nm, Nd: YAG 1 μm laser pumping birefringence (0.057); can be applied to CO2 laser frequency doubling, can withstand high-power laser pumping, output high power mid and far infrared laser.

Note:
$100 is a deposit, not the final price of the product. Please contact us for price if needed.

FEATURES
High output power
Low absorption coefficient
High laser damage threshold
Withstand high power laser pumping
High nonlinear optical coefficient wide transmission range

Physicochemical Properties

Spectrum
