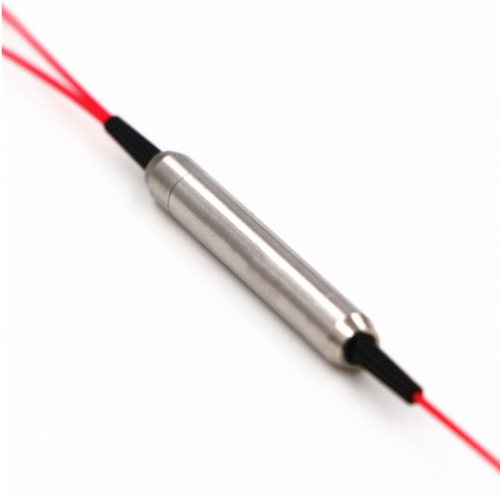

3 Port Polarization Maintaining Optical Circulator Both Axis Working PM Circulator

Product ID: 6894

Add to wishlist
Compare

$100

3 Port Polarization Maintaining Optical Circulator Both Axis Working PM Circulator

Features
Low Insertion Loss
High Extinction Ratio and High Isolation High stability and reliability
Application
EDFA
Fiber Optical Instrument
Fiber Sensor

Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.

Specifications

Parameter Value
Operating wavelength（nm） 1310,1480,1550
Bandwidth （nm） ±30
Typ. Isolation（dB） 40
Isolation（dB） ≥35
Insertion Loss（dB） ≤1.0
Extinction Ratio（dB） ≥18
Cross Talk（dB） ≥50
Return loss（dB） ≥50
Power handling（mW） ≤500
Fiber Type PM1310 Panda Fiber PM1550 Panda Fiber
Operating temperature （℃） -5 ~ +70
Storage temperature（℃） -40 ~ +85


Dimensions（mm）

 φ5.5 × L50(P3) (only for bare fiber or 900um loose tube)
L90*W20*H9.5（ABS）(P2) (only for 3mm or 2mm cable)

For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis

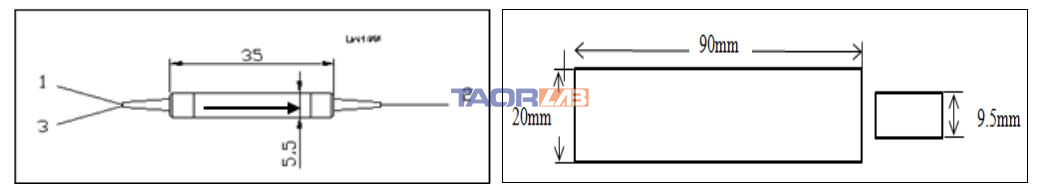

Package Dimensions

PM Circulator

Ordering Information

PMOC Wavelength Ports 0 Axis Alignment Package Pigtail Type Length Connector
PMOC=PMCIR 1310=1310nm
1480=1480nm
1550=1550nm		 3=3 Ports B=Both Axis Working 3=P1(5.5*50mm)
2=90*20*9.5mm(P2)		 1=250um bare fiber
2=900um loose tube
3=3mm loose tube
4=2mm loose tube		 H=0.5m
8=0.8m
1=1.0m
5=1.5m
2=2.0m
3=3.0m
4=4.0m
A=2.5m
B=5.0m		 0=None
1=FC/UPC
2=FC/APC
3=LC/UPC
4=LC/APC
5=SC/APC
6=SC/UPC
