1950nm 1×2/2×2 Polarization Maintaining Optical Fiber Tapered Coupler

Product ID: 7240


$100

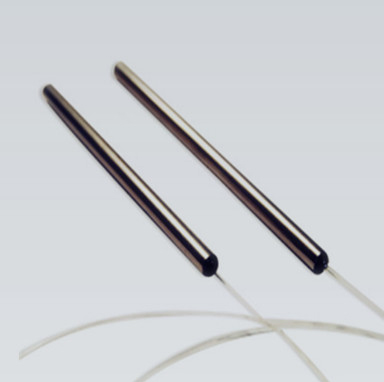

1950nm 1×2/2×2 Polarization Maintaining Optical Fiber Tapered Coupler

The fused tapered single-mode polarization-maintaining fiber tapered coupler (PM FBT Coupler) produced by TaorLab can couple the optical signal transmitted in the optical fiber in the coupling area of the special structure and redistribute the optical power. It can produce 400- Couplers with various wavelengths and different splitting ratios within the 2050nm range, and fused tapered splitters are widely used in optical fiber communications, underwater laser communications, fiber lasers, fiber amplifiers and other fields.

Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.

Specifications

Parameter Unit Value
Structure 1×2(2×2)
Working wavelength nm 1950
bandwidth nm ±20
Split ratio
1/99~50/50 (reference data 50/50)
Insertion loss(max) dB 3.6
Extinction ratio(min) dB 20
Return loss dB 55
Fiber type PM1550/PM1950
Power size mW 0.5~10 optional
Connector FC/APC or other
Fiber length m 1
Package size mm
φ3.0X54(bare fiber) or φ3.0X60(casing)
Operating temperature -10~+70
Storage temperature -40~+85

*The temperature measurement environment is 25℃;
*The above data does not include connectors. If you add a connector, the insertion loss will be different for different wavelengths. Please contact us for confirmation. The return loss will be reduced by 5dB, the extinction ratio will be reduced by 2dB, and the slow axis of the fiber will be aligned with the Key key by default.

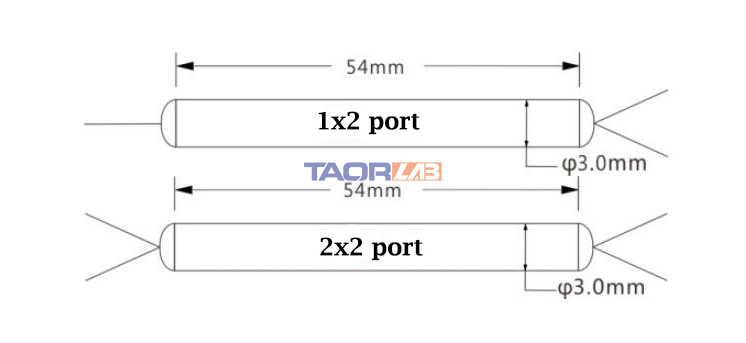

Package Dimensions


TaorLab fiber coupler



Model Information

TLPMFBT
Port Working wavelength Split ratio Power Package size Fiber type Pigtail length Tail boot type Connector type
12=1×2
22=2×2
1950=1950nm
50=50/50
40=40/60
10=10/90
01=1/99
S=Other
00=300mW
01=1W
05=5W
10=10W
S=Other
1=Φ3.0x54mm
2=Φ3.0x60mm
3=Φ4.0x60mm
S=Other
P15=PM1550
P19=PM1950
08=0.8m
10=1.0m
15=1.5m
S=other
B=250um bare fiber
L=900um loose tube
S=other
N=None
FP=FC/PC
FA=FC/APC
S=other

*Model Reference: TLPMFBT-12-1950-50-00-2-P19-10-L-FA
Tapered polarization-maintaining fiber coupler, 1X2 structure, center wavelength 1950nm, splitting ratio 50:50, continuous optical power 300 mW, package size Φ3.0x60mm, fiber type PM1950, pigtail length 1 meter, 900um loose tube , Connector type FC/APC, slow axis alignment key.
