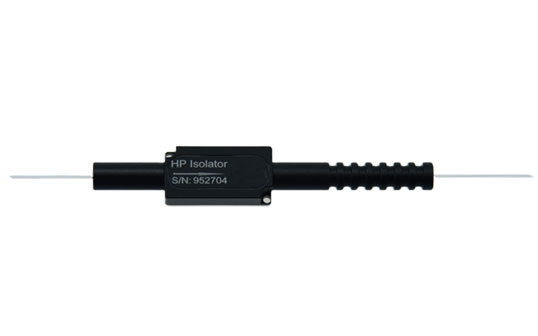

1550nm 10W/20W/30W High Power Polarization Maintaining PM Fiber Optical Isolator

Product ID: 6997


$100

1550nm 10W/20W/30W High Power Polarization Maintaining PM Fiber Optical Isolator

Optical fiber isolators mainly use the Faraday effect of magneto-optical crystals to isolate reflected light and are passive magneto-optical devices that only allow light to transmit in one direction. Fiber isolators are used to protect the light source from unwanted effects caused by back reflections or signals; back reflections can damage the laser or cause it to mode hop, change in amplitude or shift in frequency. In high power reactions, back reflections can also cause instabilities and power spikes.

The isolators produced by TaorLab have high isolation, low insertion loss, and high withstand power. Isolators with different wavelengths, powers, and fibers can be customized according to user needs. The products are widely used in fiber lasers, fiber amplifiers, laser communications, fiber optic sensors, Scientific research and other fields.

Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.

Specifications

Parameter Unit Value
Center Wavelength nm 1550
Bandwidth nm ±20
Single/Double Stage Single Stage Dual Stage
Peak Isolation (Type) dB 45 55
Isolation(min) dB 32 45
Insertion Loss (Type) dB 0.35 0.4
Insertion Loss (max) dB 0.5 0.6
Minimum Return Loss dB 45 45
Polarization Extinction Ratio (PER) dB 20 20
Power Handling (CW) W 10, 20, 30
Peak Power (Pulse) KW 10
Fiber Type PM1550, PLMA-GDF-12/130-M or others
Fiber Length m 1 or others
Package Dimensions mm 30x15x10
Operating Temperature -5 ~ +70
Storage Temperature -40 ~ +85

*The temperature measurement environment is 25℃;
*The above data does not include connectors, different power packages have different sizes, please contact us for specific specifications.

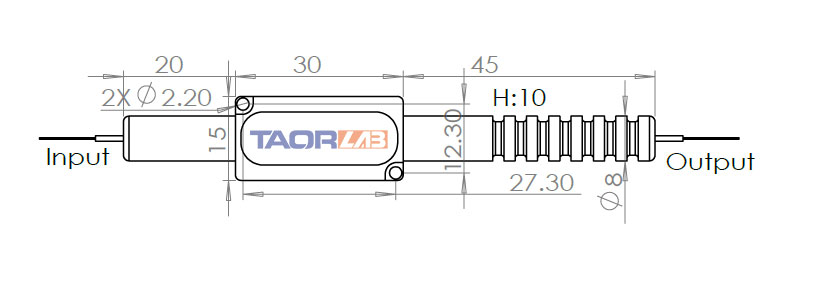

Package Dimensions


TaorLab fiber isolator

Ordering Information

TLHPMI Working Wavelength Power Power Type Peak Power Stage Type Working Axis Fiber Type Pigtail Length Pigtail Type
1550=1550nm
1570=1570nm
S=Others
10=10W
20=20W
30=30W
S=Others
C=CW
P=Pulse
0=continuous light
10=10KW
20=20KW
S=Single stage
D=Dual stage
S=Slow axis work
F=Fast axis work
B=Both axis work
P19=PM1950
PM12/130DC -PLMA-GDF-12/130-M
S=Others
08=0.8m
10=1.0m
15=1.5m
S=Others
B=250um bare fiber
L=900um loose tube
S=Others

*Model reference: TLHPMI-1550-20-P-10-S-PM12/130DC-10-L
High power polarization maintaining fiber optic isolator, center wavelength 1550nm, maximum average power 20W, peak power 10KW, slow axis operation, fiber type PLMA-GDF-12/130-M, pigtail length 1 meter, 900um bushing.
