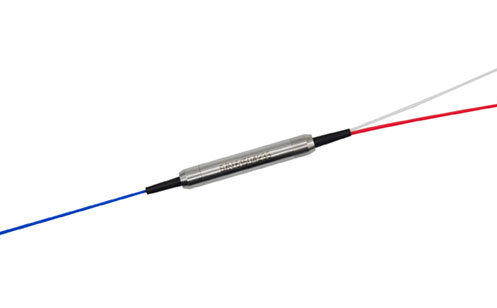

1310/1480/1550nm Polarizing Beam Splitter/Combiner PBS

Polarization beam splitter (PBS/PBC) is used to couple two beams of orthogonally polarized light into one optical fiber or to couple a single output containing orthogonal linearly polarized light into two optical fiber outputs respectively. It can also be used in reverse. Two orthogonal polarization beams input from the polarization-maintaining fiber branch are coupled into a single-mode output fiber, which can be used to combine the power of the pump laser and improve the extinction ratio of the fiber laser.

Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.

Specifications

Parameter Unit Value
Center wavelength nm 1310/1480/1550
Operating bandwidth nm ±40
Typical insertion loss dB 0.4
Max insertion loss dB 0.6
Min extinction ratio dB 22
Directionality dB 50
Return loss dB 50
Withstand power CW W 0.3,  1,  2,  5,  10
Fiber type PM Panda fiber for Ports 1&2, SMF-28e or PM Panda fiber for Port 3
Fiber length m 1 or other
Connector type
FC/APC or other
Max pulling force N 5
Package size mm Φ5.5XL35
Operating temperature -5~+70
Storage temperature -40~+85

*The temperature measurement environment is 25℃;
*The above data does not include connectors. If you add connectors, the insertion loss will increase by 0.3dB, the return loss will decrease by 5dB, and the extinction ratio will decrease by 2dB. By default, the slow axis of the optical fiber is aligned with the Key key.

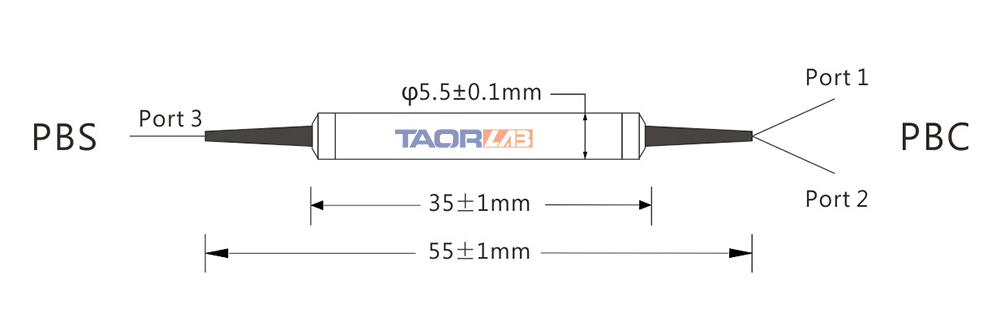

Package Dimensions


TaorLab polarizing beam splitter



Model Information

TLPBS/C
Pump wavelength Withstand power Fiber type Port1&2 Fiber type Port3 Pigtail length Tail boot type Connector type
1310=1310nm
1480=1480nm
1550=1550nm
00=300mW
10=10W
S=other
P15=PM1550 S2=SMF-28e
P155=PM1550 slow axis 45° alignment Port 1
P150=PM1550 slow axis alignment Port 1
08=0.8m
10=1.0m
15=1.5m
S=other
B=250um bare fiber
L=900um loose tube
S=other
N=None
FP=FC/PC
FA=FC/APC
S=other

*Model Reference: TLPBS-1550-00-P15-P150-10-L-FA
Polarizing beam splitter, center wavelength 1550nm, power capacity 300mW, Port1&2 fiber type PM1550, Port3 fiber type PM1550 and slow axis aligned with Port 1, fiber length 1 meter, 900um loose tube, FC/APC connector, fiber slow axis alignment key key.
