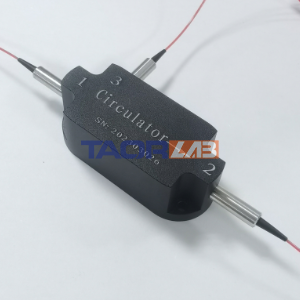

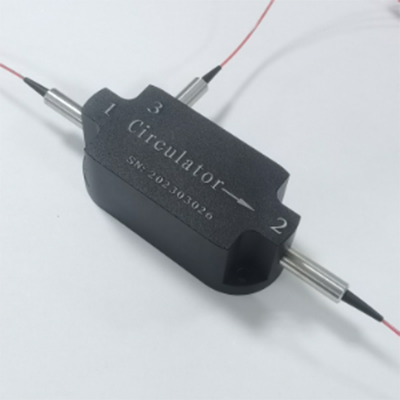

1064nm 1×2 3Ports Polarization Insensitive Fiber Optical Circulator
| Features |  |
| High isolation & High Return Loss
Low insertion loss & PDL Optical Path Epoxy Free |
|
| Application | |
| Fiberopitc Amplifier
Fiber Laser |
Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.
Specifications
| Type & Parameter | 3 Port |
| Operating wavelength (nm) | 1064 |
| Bandwidth(nm) | ±5 |
| Isolation(dB) | ≥22（Typ.28dB） |
| Insertion Loss (dB) | ≤2.1（Typ.1.8dB） |
| PDL (dB) | ≤0.2 |
| Return loss (dB) | ≥50 |
| Cross Talk (dB) | ≥45 |
| Power handling (mW) | ≤300 |
| Fiber Type | HI1060 |
| Fiber Length (m) | 0.8 |
| Operating temperature (℃) | 0 ~ +50 |
| Storage temperature (℃) | -40 ~ +85 |
| Dimensions (mm) | 34×8.4×8.4(P3) |
*Above specifications are for devices without the connectors.
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower

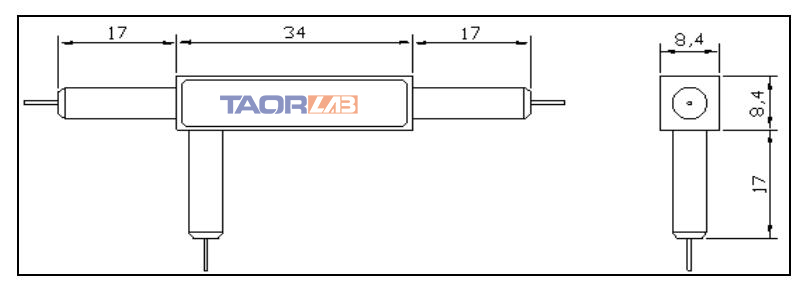

Package Dimensions
.jpg)
Ordering Information
| FCIR | Wavelength | Type | 00 | Package Type | Pigtail Type | Length | Connector |
| FCIR | 1064=1064nm | 3=3 Ports | 00 | 3=P3(34*8.4*8.4mm) | 1=250um bare fiber 2=900um loose tube 3=3mm loose tube 4=2mm loose tube |
H=0.5m 8=0.8m 1=1.0m 5=1.5m 2=2.0m 3=3.0m 4=4.0m A=2.5m B=5.0m |
0=None 1=FC/UPC 2=FC/APC 3=LC/UPC 4=LC/APC 5=SC/APC 6=SC/UPC |
